Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001/ CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Screw Type RTD Pt100 Temperature Sensor With Silicon Wire | Application: | Temperature Sensor For Industry |
|---|---|---|---|
| Max.temperature: | -200 To 250°C | Probe Material: | 316SS |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

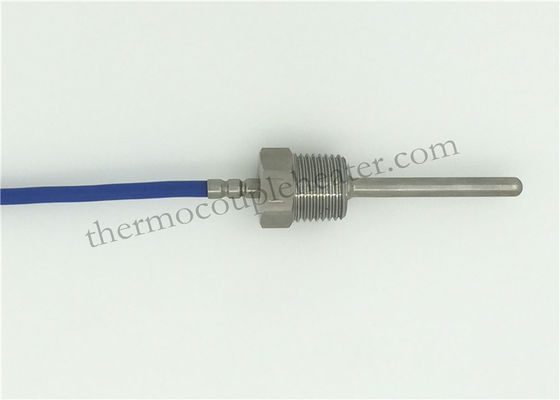

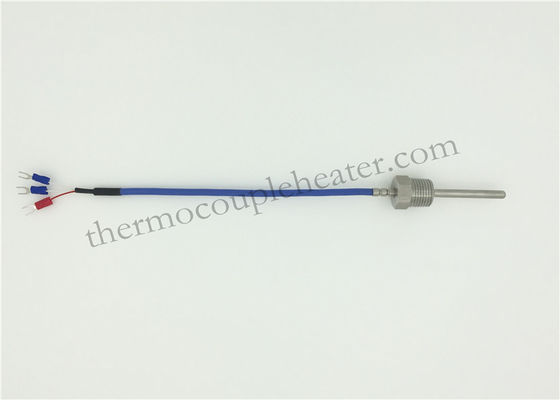

Screw Type RTD Pt100 Temperature Sensor With Silicon Wire
Product Description:
Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. The RTD is composed of certain metallic elements whose change in resistance is a function of temperature. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration. The RTD element is manufactured by winding a wire (wire wound elements) or plating a film (thin film elements) on a ceramic or glass core and sealing the element within a ceramic or glass capsule.
Since most RTDs have a low initial resistance, often 100 ohms, and have a small change in resistance per unit of temperature range, the resistance of the lead wire is often compensated for with a three or four wire bridge configuration built into the measuring devices. By selecting the proper elements and protective sheathing, RTDs can operate in a temperature range of (-200 to 650) °C [-328 to 1202] °F.
Specification:
|
Probe Outside Diameter |
3mm, 4mm, 5mm,6mm |
|
RTD Element Type |
1xPt100 2xPt100 1xPt1000 2xPt1000 |
|
RTD wire connection |
2 wire configuration 3 wire configuration 4 wire configuration
|
|
Wire Description |
24 Gage Stranded Stainless Steel Braid Flexible Armor Cable 24 Gage Stranded Fiberglass Cable 24 Gage Stranded Cable |
|
Termination type |
90mm split leads and Bare Ends. 90mm split leads and spade lugs. Standard Male Plug (2 & 3 wire configuration only) Standard Female Jack(2 & 3 wire configuration only) Mini Male Plug(2 & 3 wire configuration only) Mini Female Jack(2 & 3 wire configuration only) |
Feature:
1. Assembly simply and change easily;
2. Pressure spring type temperature sensor element,good shake-proof;
3. Wide measurement range;
4. High mechanical strength;
5. Excellent pressure resistance
Application:
It is widely used in power industry, food industry, atomic industry, petroleum industry, pharmaceutical
Industry etc. And it is usually cooperated with display meter, recording meter and electronic computer etc.
It can measure directly the temperature of the mediums as liquid, steam, gas and of solid surface
Ranging from -200° C to 600° C during the production.
