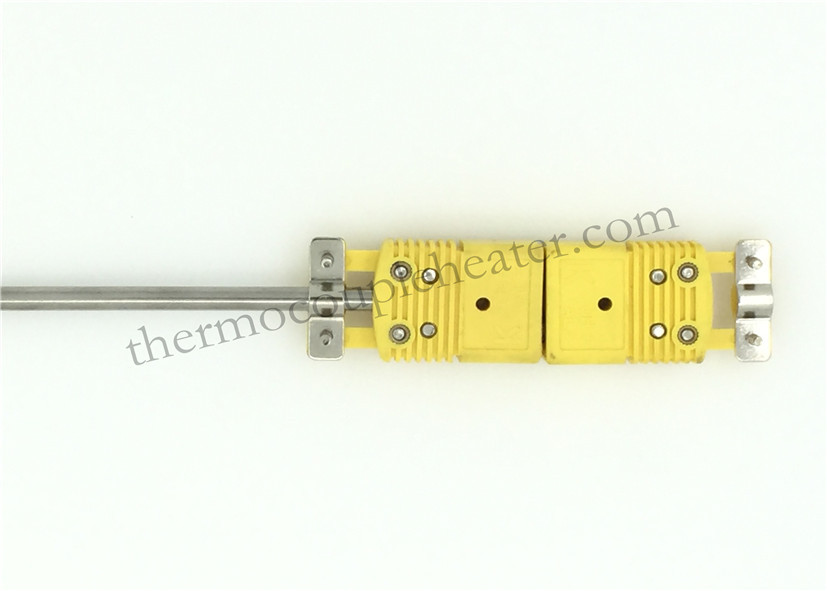

Product Name: Mineral Insulated RTD / Thermocouple With Plug Connector Termination Application: Temperature Sensor For Industry
Max.temperature: -200 To 250°C Probe Material: 316SS
High Light:

resistance temperature detecto

,

temperature sensor rtd pt100

Mineral Insulated RTD / Thermocouple With Plug Connector Termination



Product  Description:


Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. The RTD is composed of certain metallic elements whose change in resistance is a function of temperature. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration. The RTD element is manufactured by winding a wire (wire wound elements) or plating a film (thin film elements) on a ceramic or glass core and sealing the element within a ceramic or glass capsule.



Mineral insulated RTD with plug connector termination features a quick disconnect connector that allows for connection to leads.  The connector is available in 3 pin standard size and miniature configuration and is rated to 200°C.   Compression fittings are available for securing probe.  The sheath material is 316 stainless steel and is rated to 500°F (260°C).





Mineral Insulated RTD / Thermocouple With Plug Connector Termination



Specification:



Probe Outside Diameter

3mm, 4mm, 5mm,6mm

RTD Element Type

1xPt100

2xPt100

1xPt1000

2xPt1000

RTD wire connection

2 wire configuration

3 wire configuration

4 wire configuration



Wire Description

24 Gage Stranded Stainless Steel Braid

Flexible Armor Cable

24 Gage Stranded Fiberglass Cable

24 Gage Stranded Cable

Termination type

90mm split leads and Bare Ends.

90mm split leads and spade lugs.

Standard Male Plug (2 & 3 wire configuration only)

Standard Female Jack(2 & 3 wire configuration only)

Mini Male Plug(2 & 3 wire configuration only)

Mini Female Jack(2 & 3 wire configuration only)





Feature:



Temperature range -328 °F (-200 °C) thru +1562 °F (+850 °C)

Standard temperature rated for use up to 1112 °F (600 °C)

Rigid and bendable sheaths

® coated probes available

Elements 100 or 1000 ohm, Class A (0.06%) or B (0.12%)

Curve European 100 ohms @ 0 °C= 0.00385 ohms/ohm/degree C

Curve American 100 ohms @ 0 °C =0.00392 ohms/ohm/degree C

Thin-film or wire-wound, Platinum, Nickel or Copper

Sheath Diameter: 3mm, 4mm, 5mm,6mm

Sheath length: there is no upper limit on sheath length. The minimum practical length is 2 inches.

Lead configurations: 2, 3 & 4-wire, single + dual element

Quick disconnects standard & custom

Enclosures: standard and explosion proof

Transmitters: Isolated 4-20 mA, DIN rail and head mount, standard & explosion proof.

Thermowells


Application:


The Metric Tube And Wire General Purpose RTD Pt100 has been designed to be used in below area,
Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D
