Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001/ CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Application: | Temperature Sensor For Industry | Product Name: | Assembly Thermocouple Temperature Sensor Wiht Fixing Flange |
|---|---|---|---|
| Calibration: | Type J K T | Accuracy: | Class I |
| Max.temperature: | -200C To +1000C | Sheath Material: | 304SS ,310SS,316SS,Inconel 600 |
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

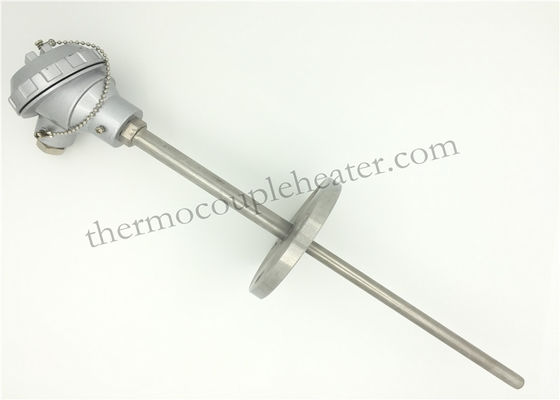

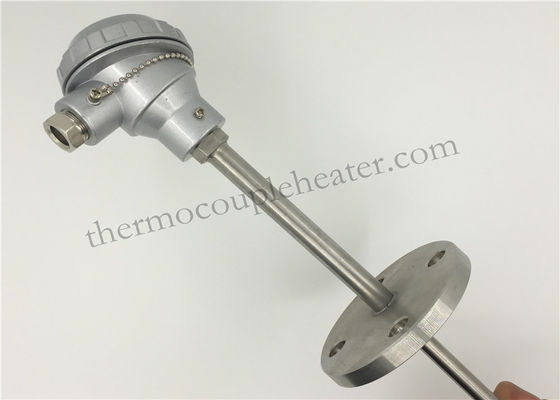

Assembly Thermocouple Temperature Sensor With Fixing Flange
Product Description:
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Specification:
1. Industrial K Type Thermocouple
2. Diameter:6/8/10/12/16/20mm
3. Temperature:0-600C
4. Length:300mm( Can be customized)
5. Connection: Flange
6. Material:SS304 Or SS316 Or SS321 Or 2020 Or GH3039
7. We can also make according to client’s requirements.
|
Category |
Code |
Temperature Range |
|
Ni-Cr-Si----Ni-Si-Mg |
N |
-40°C to 1000°C |
|
Ni-Cr----Ni-Si |
K |
-40°C to 1000°C |
|
Ni-Cr----Cu-Ni |
E |
-40°C to 800°C |
|
Fe----Cu-Ni |
J |
-40°C to 750°C |
|
Cu----Cu-Ni |
T |
-40°C to 350°C |
|
Pt-Rh13----Pt |
R |
0°C to 1000°C |
|
Pt-Rh10----Pt |
S |
600°C to 1600°C |
|
Pt-Rh30----Pt-Rh6 |
B |
600°C to 1700°C |
|
Grounded |
1 rapid response 2 no suitable in case with interference |
|
Ungrounded |
1 It responses more slowly than that of the case-connected type. 2 Long service life 3 Resistance to electric interference |
|
Exposed |
1 rapid response 2 suitable to measure the temperature of gas 3 poor mechanical strength in contact with other measuring structures |
Feature:
1. Large measuring range: this serial sheath thermocouple are of wide specification scope, complete varieties, which is fit for various measuring occasions. They may be used between -200C and +1600C
2. Easy mounting& use: the sheath thermocouple material may wind 5 circles around the barrels whose exterior diam. is 5 times large than the material itself. It may also bend in multi-positions.
3. Rapid reaction speed: compared with assembly type thermocouples, it has smaller exterior diam. and fewer capacity , thus it may rapidly reacts to minimal temperature changes. This is esp. obvious for micro sheath thermocouples
4. Long use life: assembly type thermocouple is apt to cause the accidents such as thermoelectric potential deterioration, disconnection etc, whereas WR_K serial sheath thermocouple uses magnesia for its insulation with fine air-tightness & compactibility ,high density and long life.
5.Excellent mechanical strength and pressure resistance: it may be safely used under awful conditions such as strong vibration or corrosion low or high temperature and so on. Sheath thermocouple may maximumly bear 3*105kpa / cm2 pressure.
6. The external diam. size range of sheath thermocouples: we may furnish dia.0.25mm~0.8mm sheath thermocouple materials external diam. to the customers. Dia.12mm products to be special order
7. The max. length of sheath thermocouple materials may reach to 500m.
8. Sheath thermocouple core numbers: we may offer single type (2-core), double type (4-core), triple type (6-core) various sheath thermocouples.
Application:
Fixed Flange Thermocouple K Type has found its extensive applications of temperature measurement in extruders of plastics, heat passages, packing lines, textiles and food industry. And the flange can be fixed and flexible for customers needs. You can tell us the exact size for the flange or our engineers can offer you the technical support if you do not know clearly the flange size.
