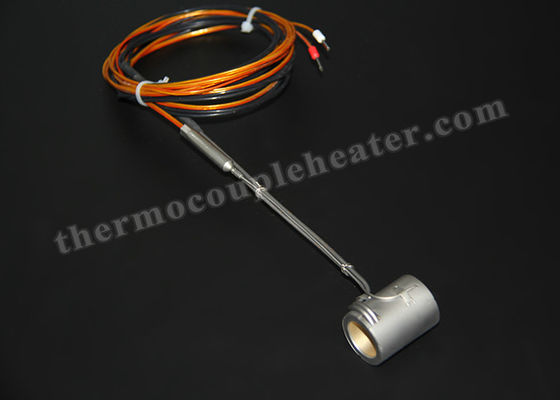

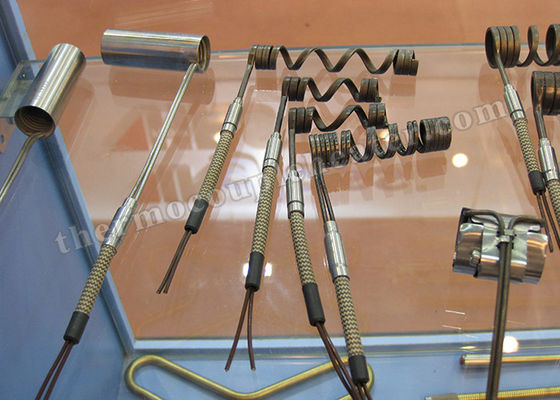

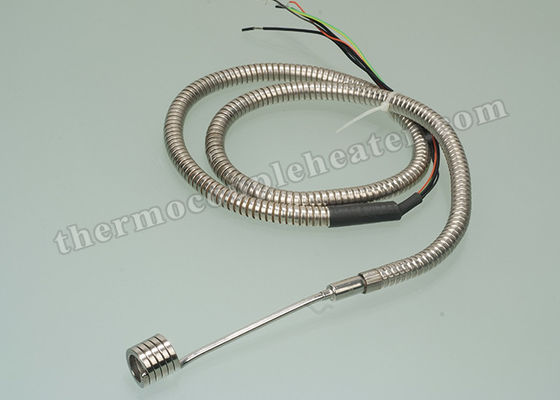

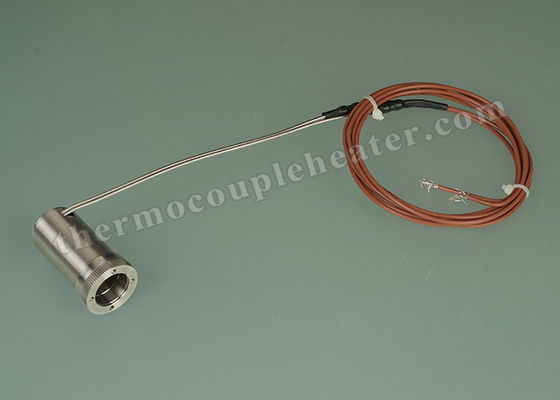

Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple

Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple

    • Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple
    • Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple
    • Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple
    • Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple
  • Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: T/T, L/C, D/P, Paypal, Western Union
    Supply Ability: 10,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Mold Heater Application: Hot Runner
    Material: Stainless Steel 304 316 Round(dia): 3mm,3.3mm,3.5mm
    Square: 3mmX3mm,3.3mmX3.3mm,3.5mmX3.5mm Rectangular: 2mmX4mm,4.2mmX2.4mm,1.3mmX2.3mm, 4.2mmX2.2mm
    Thermocouple: Type J, K Insulated Material: Comressed MgO
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    4.2x2.2mm Hot Runner Mold Heater with Thermocouple




    1. Mold Heater Brief Introduction


    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


    2. Mold Heater Characteristics


    a. The moisture-proof can be IP65, suitable for working in bad condition.
    b. Very good performance of the heating uniformity in the heating area.
    c. The inside insulated cover, same as the German GC.
    d. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.


    3. Mold Heater Parameter.



    • Standard Configuration
    • Material :304
    • Unheated length(L1):45mm
    • Connector(cold side)(DxU):
    • Square cross-section:Ф7.6x26mm
    • Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Jacket:Silicone fiberglass sheathing establishment,black and others
    • Thermocouple:J tpye
    • Compensating lead wire length(L):1000mm
    • Surface treatment:sandblasting,black, polish



    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V





    4. Mold Heater Application


    This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical equipment, casting process,other electric heating industry, etc..



    5. Packing Information



    Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple



    6. Transportation



    Stainless Steel 304 316 Coil Heaters , 4.2x2.2mm Hot Runner Mold Heater with Thermocouple
