Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE

China Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE supplier
Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE supplier Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE supplier

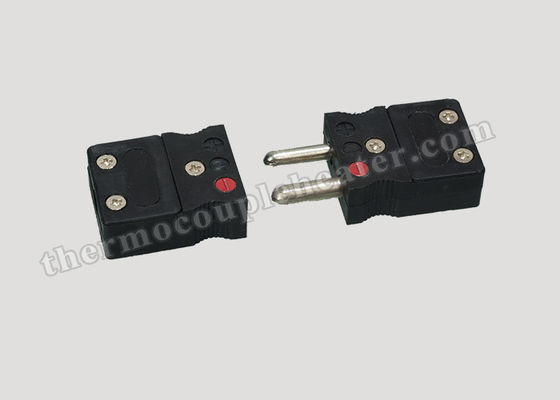

Large Image :  Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: RTD and Thermocouple Connector

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T, Western Union, D/P, L/C, Paypal
Supply Ability: 25,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: RTD And Thermocouple Connector Temperature Range Range: 0--600 Centigrade
Materials: Nickel-plated Iron Types: K, S, N, J, T, E
Usage: Industrial, Thermocouple Accessories Material: Yellow, Black, White,
Conductor Material:: Chromel, Alume Application: Industrial
High Light:

thermocouple accessories

,

thermocouple assemblies

RTD and Thermocouple Connector




1. Thermocouple Connector Brief Introduction


Thermocouple connector is widely used in the thermocouple and RTD circuits, best solution for quick and good contact. Different models are on the offer for different application.


2. Thermocouple Connector Characteristics



  • Solid pins and hollow pins are both available, offer good contact and competitive price.
  • Maximum ambient temperature for the thermoplastic body continuous usage is 200 degrees celsius.
  • Well designed body ensure good insulation inside, and well designed pins construct ensure good contact.
  • Available in all color code standard. ANSI color code standard will be the one if the customer do not have special requirements.
  • Thermoplastic body and ceramic material body are both available.
  • Original thermocouple alloy material pins, and spring loaded inserts.
  •  Pins are polarized


3. Thermocouple Connector Parameter.


Wire size



  • Accepts wires from 0.2 mm to 2.0 mm.
  • Maximum cable diameter 8.0 mm.


Max. Temperature



  • 200 Deg. C for thermoplastic body
  • 650 Deg. C for ceramic body

Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE

Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE

Mark

Material

Color

K

Nickel chrome - nickel silicon

yellow (ANSI), green (IEC)

J

Iron-copper nickel

Black

N

Silicon nickel chrome - nickel silicon magnesium

Orange

T

Copper - copper nickel

blue

E

Copper nickel- chrome nickel

purple

R/S

Copper - copper nickel

green



Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE



4. Thermocouple Connector Application


This thermocouple connector is widely used in the thermocouple and RTD circuits and instrument machine.


5. Thermocouple Connector Connector



  • Good Quality :We have strict quality control system .Good reputation in the foreigner market.
  • Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
  • Low MOQ: It can meet your promotional business very well.
  • OEM Accepted : We can produce any your design as long as you provide us the drawing.
  • Good Service : We treat clients as friend.



5. Transportation



Nickel - Plated Iron Thermocouple Components RTD ConnectorApproved CE
