| Product Name: | NSiC Thermocouple Protection Tube | Temperature Range Range: | 1200C,1300C,1450,1550 C |
|---|---|---|---|
| Materials: | Nitride Bonded Silicon Carbide | Refractoriness (Degree): | 1770°< Refractoriness< 2000° |
| Usage: | Industrial, Thermocouple Accessories | Material: | Grey |
| Function: | :antioxidation,anti-corrosion,and Good Thermal Conduction | Application: | Industrial Ceramic |
| Highlight: | thermocouple accessories,thermocouple parts and components |
||

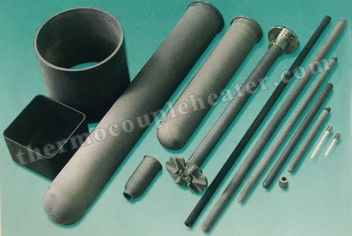

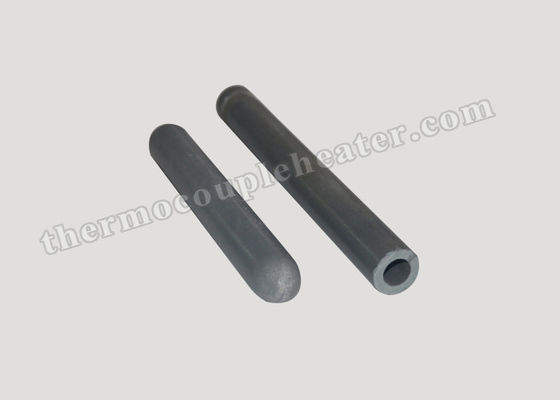

Nitride Bonded Silicon Carbide RSiC Thermocouple Protection Tube
1. NSiC Thermocouple Protection Tube Brief Introduction
Nitride Bonded Silicon Carbide Thermocouple Protection Tubes have the excellent properties of high strength,
wide working temperature range, oxidization resistance and corrosion resistance. It can be widely used in the
thermometric system of nonferrous metal melting furnace.
2. NSiC Thermocouple Protection Tube Characteristics
3. NSiC Thermocouple Protection Tube Parameter.
|
Density g/cm3 |
Relative density |
Elastic modulus GPa |
Compression strength ratio25 |
Hardness GPa |
|
3.26 0.02 |
>99.5 |
300320 |
4050 |
16 - 20 |
|
Fracture toughness /MPam1/2 |
Bending strength MPa |
Poisson's ratio |
Linear expansion coefficient 10-6K-1 |
Webuller modulus |
|
6.09.0 |
9001000 |
0.25 |
3.13.3 |
1215 |
|
Thermal conductivity WmK-1 |
Specific resistance ratio |
Corrosion resistance |
Size stability |
Magnetic |
|
15~20 |
1018 |
Excellent |
Excellent |
NO |

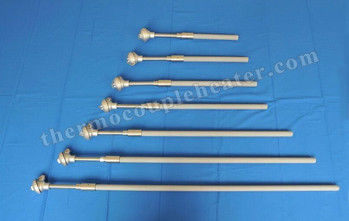

4.Thermocouple Ceramic Insulator Application

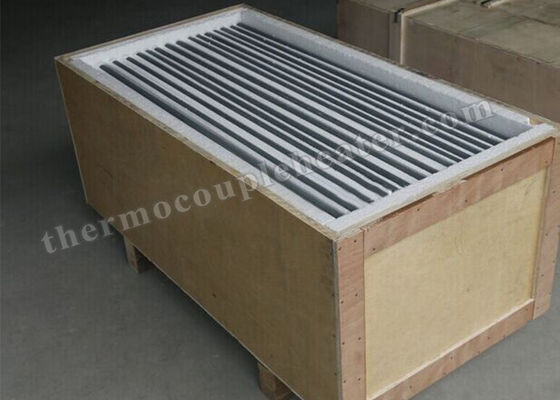

5. Transportation
