High Power Density Cartridge Heaters with Stainless Steel Mounting Flange

High Power Density Cartridge Heaters with Stainless Steel Mounting Flange

    • High Power Density Cartridge Heaters with Stainless Steel Mounting Flange
    • High Power Density Cartridge Heaters with Stainless Steel Mounting Flange
    • High Power Density Cartridge Heaters with Stainless Steel Mounting Flange
    • High Power Density Cartridge Heaters with Stainless Steel Mounting Flange
  • High Power Density Cartridge Heaters with Stainless Steel Mounting Flange

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Cartridge Heater Application: Industrial Heating
    Watt Densities: 25W/c㎡ Warranty: One Year
    Thermocouple: K Or J Sheath Material: SS304,SS316, Incoloy 800
    Wattage: 0.5-15KW
    High Light:

    electric cartridge heaters

    ,

    cartridge heater with thermocouple

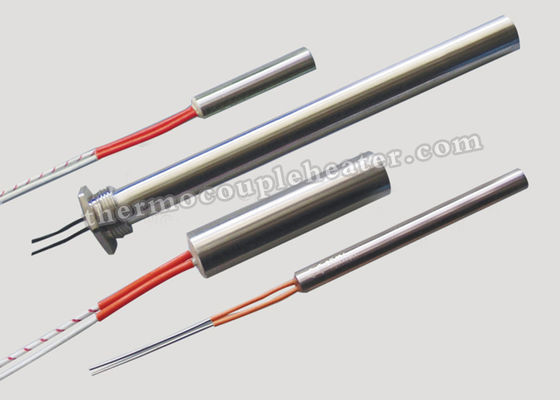

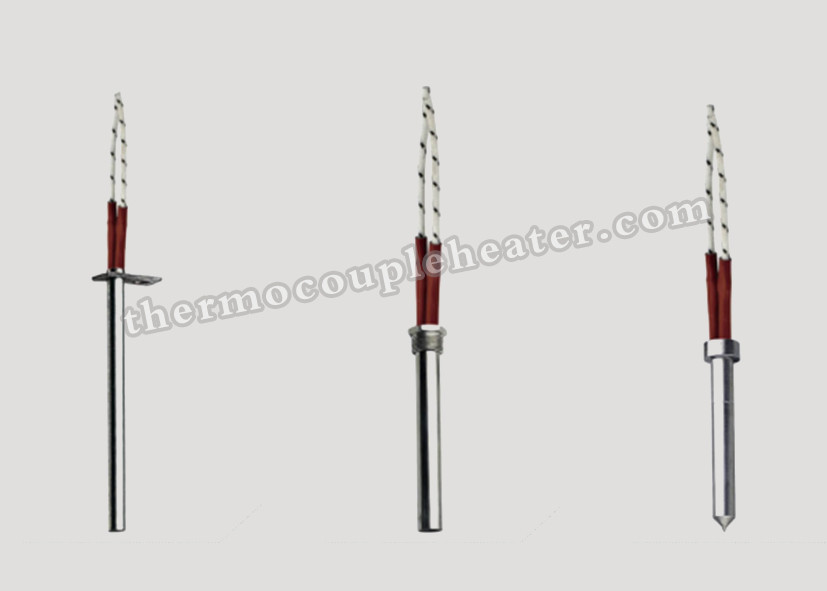

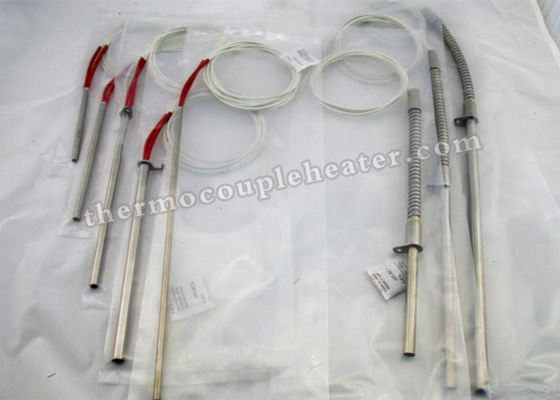

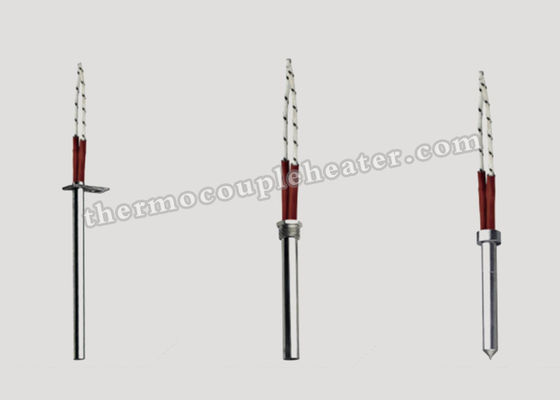

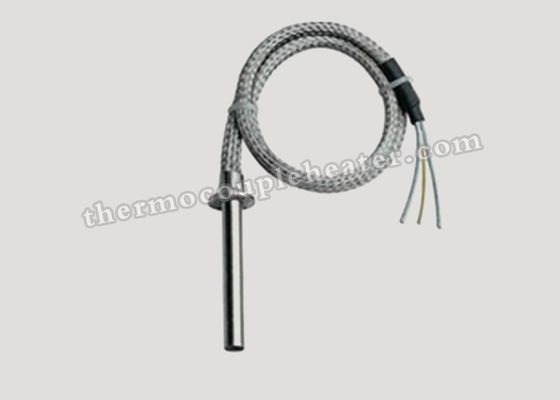

    High Power Density Cartridge Heater with Stainless Steel Mounting Flange



    1. Description:



    Cartridge heater is tube-shaped, heavy-duty, industrial joule heating element (electrical resistance) used in the process heating industry, usually custom manufactured to a specific watt density, based on its intended application. Highly compacted they reach a surface watt density of up to 25 w/cm².



    It may be used to heat any kind of substance or material, such as oil, air, or sugar. However, a common application is plastic pellets, which are melted in order to form molded plastic parts. An example of such a process is the "hot runner" process. Cartridge heaters resemble tubular heaters structurally but tend to have higher watt densities.



    2. Specifications:



    All Cartridge Heaters are available with a built in Thermocouple Type J or K



    Tube diameter: Φ4mm-Φ30mm

    Tube Material: SS304, SS316, SS321 and NICOLOY800 etc

    Insulation Material: High-purity MgO

    Conductor Material: Ni-Cr or Fe-Cr-Al Resistance Heating Wire

    Wattage density: high/middle/low (5-25w/ cm²)

    Lead Connection Option: Crimped or Swaged leads

    Lead wire type: 10" Standard (/silicone high temperature fiberglass)



    Sheath Material

    SUS 304/316/ Incoloy 800

    Spirals

    Nickel - Chrome

    Insulation

    Magnesium Oxide Powder

    Voltage Supply

    12V to a maximum of 480V

    Maximum Temperature

    750 °C

    Resistance Tolerance

    +10% - 5%

    Wattage Tolerance

    +5% - 10% (closer tolerances are available upon special request)



    Features

    Benefits

    Nickel chromium resistance wire

    Assures even, efficient distribution of heat to the sheath

    Magnesium oxide insulation of specific grain

    Results in high dielectric strength and faster heat-up

    Incoloy® sheath

    Resists oxidation and corrosion from many chemicals, heat, and atmospheres

    Minimal spacing between element wire and sheath

    Results in lower internal temperature

    Accommodates a design with fewer or smaller heaters operating at higher watt densities

    Conductor pins

    Provides a metallurgical bond to the resistance wire

    Ensures a trouble-free electrical connection

    UL® and CSA approved flexible stranded wires

    Lead insulation rated to temperatures of 800oC





    3. Applications:



    Heating of Mould Tools

    Tooling, Platens

    Packaging Machinery

    Heat Sealing Equipment, Plastic Process Machinery

    Food Process Machinery

    Catering

    Printing

    Hot Foil Printing

    Shoe manufacturing Machinery

    Laboratory / Test Equipment, Vacuum Pump…...
