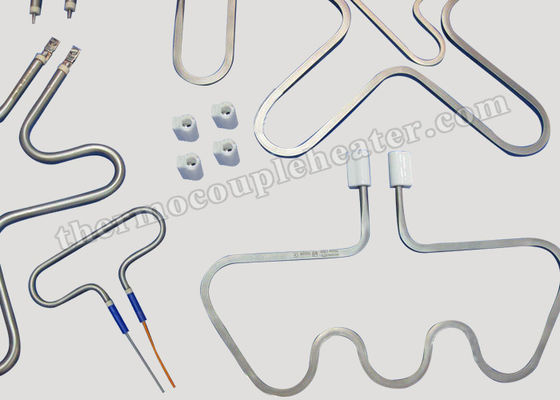

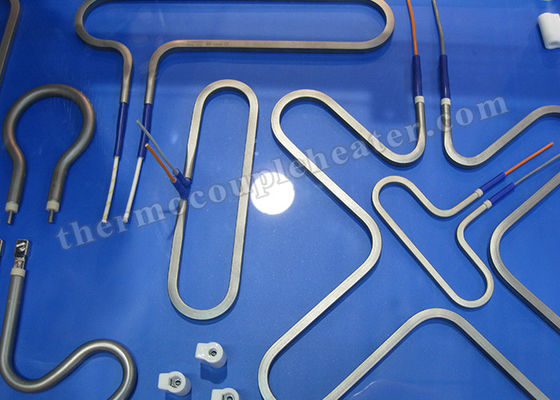

Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine

China Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine supplier
Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine supplier Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine supplier Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine supplier

Large Image :  Flexible Hot Runner Manifold Tubular Heater For Injection Molding Machine

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or wooden crate or as per your request
Delivery Time: 7 working days or above
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Hot Runner Manifold Tubular Heater For Injection Molding Machine Application: Industrial Heating Elements
Sheath Material: Incoloy 800, SS 304, SS 321, SS 316 Cross Section: Square, Round
Resistance Wire: Ni80Cr20 Available Diameter: 6x6mm, 8x8mm,Dia. 6.5mm,8.5mm, Or Special To Order
High Light:

thermostatic tubular heater

,

tubular heater elements

Hot Runner Manifold Tubular Heater For Injection Molding Machine



Description

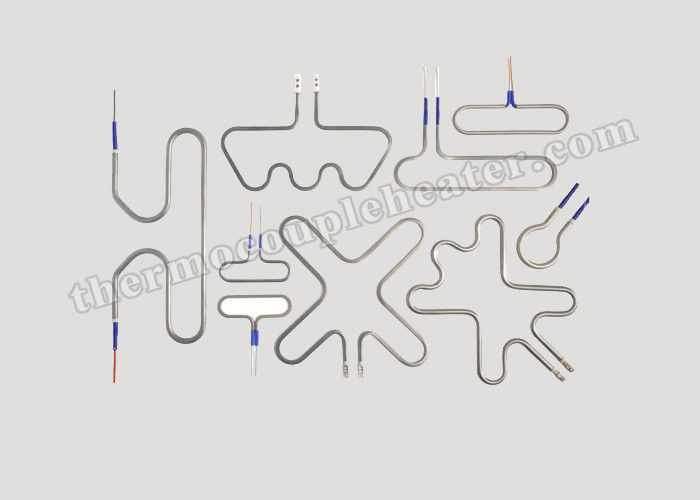

Hot Runner Manifold Tubular Heater also known as Formed Tubular Heaters or Flexible heaters, these heaters are mainly used for heating hot-runner manifolds for injection-molding plastics. The tubular heater can be precisely press-fitted into a milled slot or manually hammered in with a plastic hammer and without special tools. By taking into account the recommended slot dimensions, a contact surface of up to 75 percent can be achieved for optimum heat transfer — for both round and square formats.
A superior grade of helical wound high temperature resistant NiCr alloy heating wire is swaged in Chrome Nickel Steel sheathed tubes. The insulation consists of superior grade of magnesium oxide (MgO). Threaded terminal post which gives a cold section of approx 40mm (min) are sealed with special sealing components to prevent the heater from moisture. These are then formed to shapes as required to press fit in the hotrunner manifold which dissipated even heat transfer to the hotrunner mould.
For manufacturing manifold tubular heaters it is necessary to provide an accurate dimensional sketch showing all centre distances, bending radius and path.



Specification



Length

300 -1550mm

400 - 2100mm

Maximum Current

12 A

15 A

Nominal Voltage

< 230V

< 400V

Wattage

±10%

±10%

Dielectric Strength

1.5 HV

1.5 HV

Insulation MΩ

>5Ω

>5Ω

Leakage Current

<0.5 mA

<0.5 mA

Minimum Unheated

30mm

35mm

Terminal Pins

M3 x .50mm/ Plain post

M4 x .70mm

Length Tolerances: ± 2%
Diameter Tolerance: ± 0.10mm



Feature


Available in Chrome Nickel Steel.
Available in Dia 8.5mm, 6.5mm & Square Section 6mm x 6mm,8mmx8mm.
Sealed Edges to prevent from Moisture.
Superior Grade Magnesium Oxide Insulation.

Swaged for Good Electrical Insulation & Even Heat. Transfer.



Application



Hot Runner Manifolds
