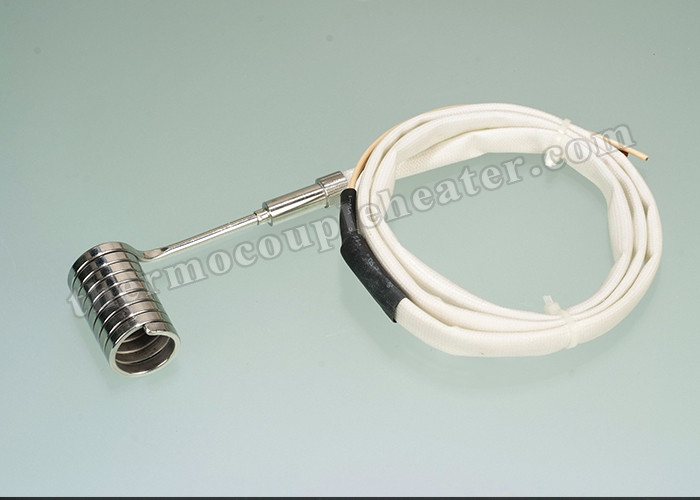

Industrial Hot Runner Coil Heaters With Thermocouple J , Micro Tubular Heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE & ISO
Model Number:	Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity:	20 pcs
Price:	Negotiation
Packaging Details:	Exported Case Packing
Delivery Time:	7-15 working days after received your payment
Payment Terms:	T/T, L/C, Western Union, D/P, Paypal
Supply Ability:	15,000pcs per month

Contact Now

All Products

Coil Heaters (344)

Thermocouple RTD (309)

Mineral Insulated Thermocouple Cable (34)

Thermocouple Compensating Cable (68)

Cartridge Heaters (150)

Cast Heater (36)

Tubular Heater (94)

High Temperature Cable (30)

Thermocouple Connection Head (60)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (174)

Mica Insulated Band Heaters (31)

Ceramic Heaters (4)

Electric Heater Components (37)

Heater Making Machine (15)

Brass Hot Runner Nozzle Heater With Builtin Thermocouple

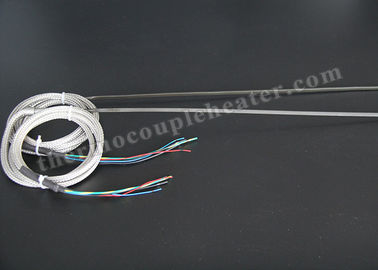

Micro Tubular Coil Heaters with Thermocouple J

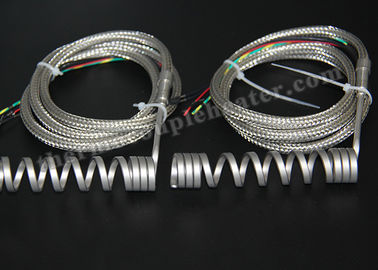

350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

Detailed Product Description

Product Name:	Industrial Heaters	Other Name:	Micro Tubular Heater
Application:	Injection Mould	Insulated Material:	Comressed MgO
Watt Density:	6.5 W / CM 2	Max.Tempreture:	650℃
Warranty:	1 Year	Power(W):	200-3000W
Highlight:	electric resistance heater , Electric Coil Heaters , Hot Runner Coil Heaters With Thermocouple J

Hot Runner Industrial Heaters with Thermocouple J

1. Industrial Heaters Brief Introduction

Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.

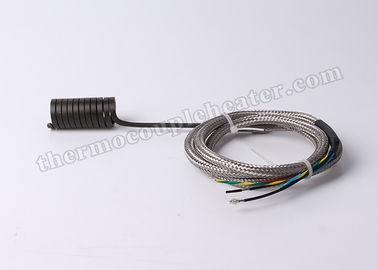

Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.

2.Industrial Heaters Characteristics

Standard sizes available with various cross section
Various Watt Density options available.
Robust Design with Choice of Terminal Exits
Designed for even heat profile
Precision fit on Hot Runner Nozzles & Manifolds
Highly Non-corrosive
Maximum heat transfer due to more contact area
Advanced Thermal Engineering
CE Certified
Available with built in Thermocouple

3.Industrial Heaters Application

Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.

4.Industrial Heaters Parameter.

Standard Configuration
Material :304, 316
Unheated length(L1):45mm
Connector(cold side)(DxU):
Square cross-section:Ф7.6x26mm
Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
Power lines,grounding wire length(L):1000mm
Jacket:Silicone fiberglass sheathing establishment,black and others
Thermocouple:J tpye
Compensating lead wire length(L):1000mm
Surface treatment:sandblasting,black, polish

Industrial Hot Runner Coil Heaters With Thermocouple J , Micro Tubular Heater

Cross Section	Total Length/Heating Length	Thermcouple	WATT/VOLT	Lead Wire

2,2x4.2	300/250mm	J	195W x 230V	1000mm
2,2x4.2	330/280mm	J	215W x 230V	1000mm
2,2x4.2	385/335mm	J	240W x 230V	1000mm
2,2x4.2	450/400mm	J	300W x 230V	1000mm
2,2x4.2	510/460mm	J	350W x 230V	1000mm
2,2x4.2	570/520mm	J	400W x 230V	1000mm
2,2x4.2	650/600mm	J	460W x 230V	1000mm
2,2x4.2	750/700mm	J	530W x 230V	1000mm
2,2x4.2	850/800mm	J	610W x 230V	1000mm
2,2x4.2	950/900mm	J	690W x 230V	1000mm
2,2x4.2	1160/1110mm	J	850W x 230V	1000mm
2,2x4.2	1360/1310mm	J	950W x 230V	1000mm
2,2x4.2	1600/1550mm	J	1100W x 230V	1000mm
2,2x4.2	1850/1800mm	J	1200W x 230V	1000mm
2,2x4.2	2300/2250mm	J	1300W x 230V	1000mm
2,2x4.2	2550/2500mm	J	1500W x 230V	1000mm
