Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001/ CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Type J K T Flange Style Tube And Wire Thermocouple Probe | Application: | Temperature Sensor For Industry |
|---|---|---|---|
| Calibration: | Type J K T | Accuracy: | Class I |
| Max.temperature: | -200C To +1000C | Sheath Material: | 304SS ,310SS,316SS,Inconel 600 |
| High Light: | temperature sensor rtd,temperature sensor rtd pt100,Flange Style K Type Thermocouple Probe |
||

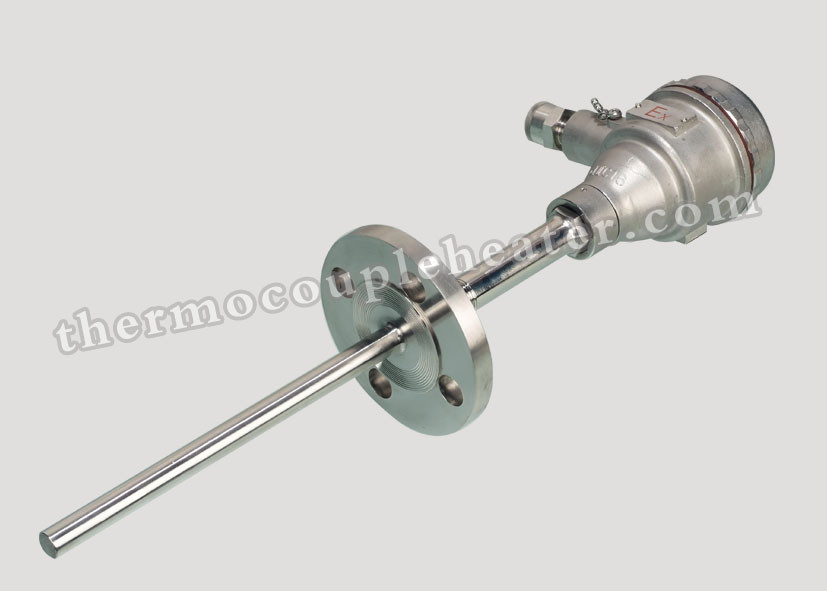

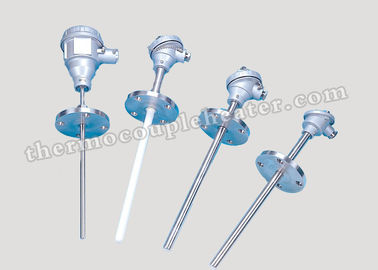

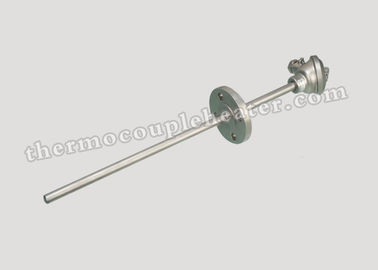

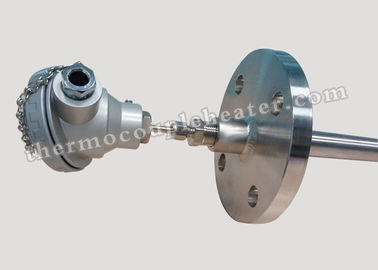

Type J K T Flange Style Tube And Wire Thermocouple Probe
Product Description:
A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Specification:
|
Outside Diameter |
1/8”,3/16”,1/4”,5/16” |
|
Calibration |
J, K, T ,
|
|
Sheath Material |
304 Stainless Steel 316 Stainless Steel 310 Stainless Steel Inconel 600 |
|
Quantity of sensor wire |
Single, Duplex |
|
Junction |
Ungrounded , Grounded
|
|
Cable Conductor Description |
24 Gage,Solid Conductor 24 Gage,7 stranded conductors 20 Gage,Solid Conductor 20 Gage, 7 Stranded Conductors |
|
Termination |
3 1/2” Split Leads & bare ends 3 1/2” Split leads & No.10 Spade lugs Standard Male Plug (350F) Standard Female Jack (350F) Mini Male Plug (350F) Mini Female Jack (350F) |
|
Cable Insulation Description |
Fiberglass insulation:950F/510C Insulation:500F/260C PVC insulation:221F/105C shielded + Drain Wire PVC Shielded +Drain Wire |
|
Termination options |
None Bx Connector Cable Clamp |
Feature:

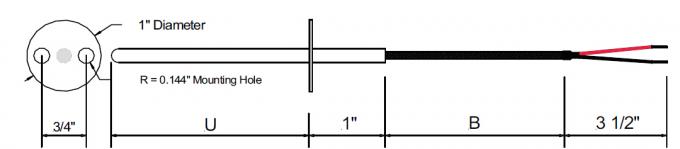

The flanged style thermocouple allows rapid assembly, low profile and quick mounting through bulkheads or platens.
Application:
1. Machine building, plant and vessel construction
2. Energy and power plant technology
3. Chemical and petrochemical industry
4. Food and beverage industry
5. Sanitary, heating and air-conditioning technology
