Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies

China Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies supplier
Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies supplier Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies supplier Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies supplier Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies supplier

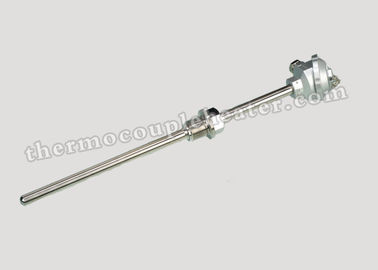

Large Image :  Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies

Product Details:

Place of Origin: China
Certification: ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Type K / J Industrial Thermocouple Assemblies Application: Temperature Sensor For Industry
Calibration: Type K Accuracy: Class I
Max.temperature: -200C To +1000C Sheath Material: 304SS ,310SS,316SS,Inconel 600
High Light:

resistance temperature detecto

,

temperature sensor rtd pt100

,

Type J Industrial Thermocouple Assemblies

Type K / J Industrial Thermocouple Assemblies


Product  Description:


Industrial thermocouple assemblies are used in the process and power industries where thermocouples are installed in pipe lines or vessels. This type of assembly consists of three basic parts, the connection head, sensing element and thermowell or protection tube. Selecting the proper assembly involves consideration of several factors including process temperature, environment, fluid or gas pressure, pipe or vessel size and flow velocity.



Professional Thermocouple RTD , Type K / J Industrial Thermocouple Assemblies

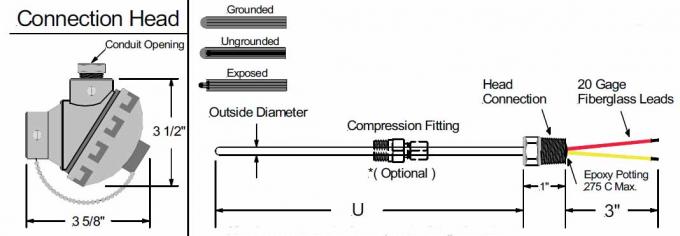

Specification:





Outside Diameter

0.063”,0.125”,0.188”,0.25”,0.315”,0.375”,0.500”

Calibration

J, K, T , E , N



Sheath Material

304 Stainless Steel

316 Stainless Steel

310 Stainless Steel

Inconel 600

Quantity of sensor wire

Single, Duplex, Triplex

Head Connection

1/4”NPT, 1/2”NPT, 3/4”NPT

Connection Head Model

None,3” Split Leads

Cast Aluminum: Standard

Cast Aluminum: Mini

Polypropylene:FDA Appr.

Cast Iron:Standard

316 Stainless Steel

Explosion Proof

Conduit Opening

None

1/2” NPT

3/4” NPT

Junction

Ungrounded , Grounded, Exposed



Connection Head Options

None

4-20mA Transmitter

No Terminal Block





Feature:



1. The sensor can be mounted into a thermowell or directly into a process with the use of a fixed, spring loaded or compression process fitting. „
2. The assembly can be supplied with or without a transmitter. Transmitters convert the millivolt input from the thermocouple to a linear analogue or digital output (commonly 4-20 mA). This signal reduces potential inaccuracies in the circuit and negates the requirement for thermocouple extension wire. „
3. The assembly has electrical approvals for explosion proof hazardous locations, intrinsic safety, ingress protection and general purpose areas. „
4. The thermocouple sensors available for this assembly are provided with a variety of sheath materials including stainless steels, corrosion resistant and high temperature oxidation resistant alloys. „
Thermocouple diameters range from 0.125 inch to 0.250 inch and 2 mm to 8 mm. Standard diameters are 0.125 inch & 0.250 inch also 3 mm & 6 mm. „
5. Thermocouple temperature ranges are dependent on the sheath & conductor diameter, element calibration, and sheath material. „
6. A variety of neck extensions are possible. They provide a fixture from the enclosure (connection head) to the process or thermowell. The standard neck extensions are the nipple-union-nipple or the male threaded neck tube. These extensions allow for directional rotation of the head for field wiring as well as a positive quick disconnection of the assembly from the process or thermowell.



Application:



1. Chemical and petrochemical industries
„2. Energy and power plant technology
„3. Furnaces, kilns, ovens and boilers
4. Incinerators
„5. Machinery, plant and tank measurement
„6. Oil and gas industries
„7. Offshore exploration and drilling
„8. Pipeline control
„9. Power and utilities
10. Pulp and paper
„11. Water and wastewater treatment
