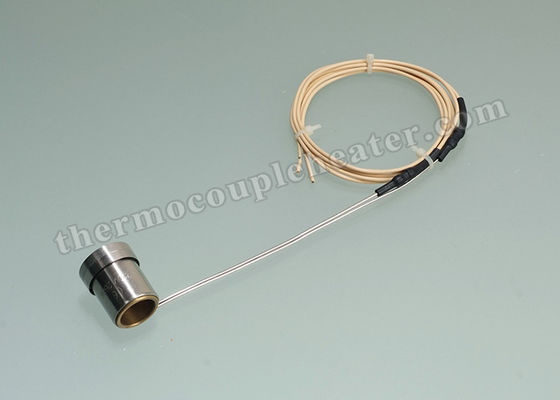

High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65

High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65

    • High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65
    • High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65
    • High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65
    • High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65
  • High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: Coil Heater

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 20,000pcs per month
    Payment Terms: D/P, L/C, Western Union, T/T, Paypal
    Contact Now
    Detailed Product Description
    Product Name: Nozzel Heater Application: Hot Runner
    Insulated Material: Comressed MgO Power(W): 200-3000W
    Watt Density: 6.5 W / CM 2 Warranty: 1 Year
    Moistureproof: IP 65 Lead Wire Length: 1000 Mm Or Customized
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    ,

    Hot Runner Nozzle Band Heaters IP65

    Nozzel Heaters with Thermocouple for Hot Runner System




    1. Nozzel Heaters Brief Introduction


    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.





    2. Nozzel Heaters Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density options available.
    • Robust Design with Choice of Terminal Exits
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles & Manifolds
    • Highly Non-corrosive
    • Maximum heat transfer due to more contact area
    • Advanced Thermal Engineering
    • CE Certified
    • Available with built in Thermocouple



    3. Nozzel Heaters Parameter.



    • Standard Configuration
    • Material :304
    • Unheated length(L1):45mm
    • Connector(cold side)(D1xU): Ф3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Surface treatment:sandblasting;

    High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65

    Spring coil heater (H series)

    2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~190mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    Thermocouple

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V





    4. Nozzel Heaters Application



    Hot Runner Nozzles & Bushings.

    Hot runner Injection moulds

    Injection & Blow Moulding Machine Nozzles.

    PET prefrom & Thin wall container Moulds.

    Hot Runner Manifolds.



    5. Packing Information



    High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65



    6. Transportation



    High Temperature Hot Runner Nozzle Band Heaters with Thermocouple IP 65
