Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified

Home ProductsCoil Heaters

Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

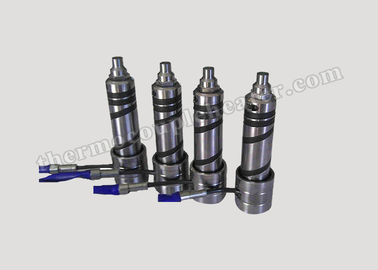

Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified

China Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified supplier
Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified supplier Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified supplier Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified supplier

Large Image :  Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 7-15 working days after received your payment
Payment Terms: D/P, T/T, L/C, Western Union, Paypal
Supply Ability: 10,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Electric Heaters Coil Application: Injection Mold Hot Runner
Thermocouple: Type J, K Insulated Material: Comressed MgO
Max.Tempreture: 650℃ Power(W): 200-3000W
Power Source: Electric Dimension(L*W*H): Customized
High Light:

Electric Coil Heaters

,

coil heater with thermocouple

,

CE Certified Electric Heating Coils

Hot Runner Electric Heates Coil in Straight Dual End




1. Electric Heates Coil Brief Introduction


Wuhan Global Metal hot runner Electric Heate Coil use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.



2. Copper Heaters Coil Characteristics



  • Standard sizes available with various cross section
  • Various Watt Density options available.
  • Robust Design with Choice of Terminal Exits
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles & Manifolds
  • Highly Non-corrosive
  • Maximum heat transfer due to more contact area
  • Advanced Thermal Engineering
  • CE Certified
  • Available with built in Thermocouple

3.  Copper Heaters Coil Parameter.



  • Standard Configuration
  • Sleeve Material :copper
  • Unheated length(L1):45mm
  • Connector(cold side)(D1xU): Ф7.6x26
  • Power lines,grounding wire length(L):1000mm
  • Jacket: Silicone fiberglass sheathing establishment, black and others
  • Thermocouple: J type
  • Compensating lead wire length (L): 1000mm
  • Surface treatment: sandblasting;black ,polish

Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified

Spring coil heater (H series)

3.2x1.8

Φ1.8
Φ2.0

Φ2.5

4.2x2.2

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance  201W-2000W

+5%-10%

Out jacket length

30mm~280mm

inside jacket diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

0.05mm~0.10mm

Tolerance cross section

+/-0.10mm

+/-0.15mm

Thermocouple

K,J,E

None

K,J,E

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

600V

800V



5. Packing Information



Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified



6. Transportation



Customized Injection Molding Hot Runner Electric Heating Coils With CE Certified
