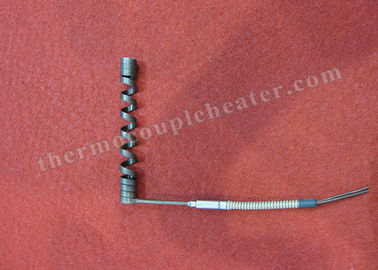

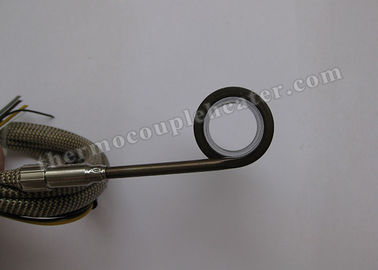

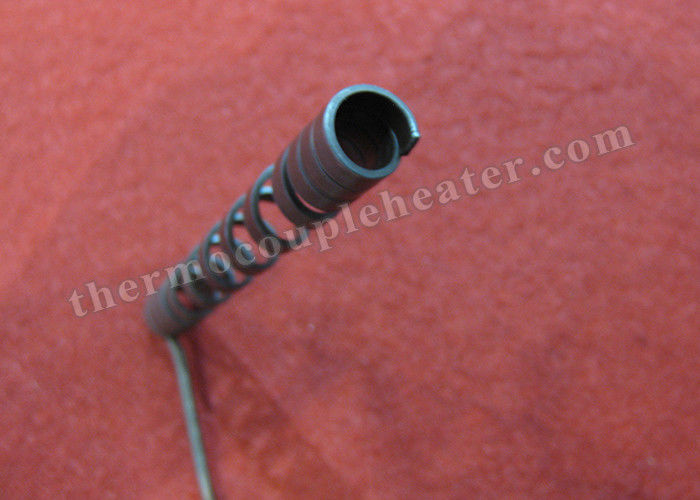

High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System

Home ProductsCoil Heaters

High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System

China High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System supplier
High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System supplier High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System supplier High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System supplier

Large Image :  High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiation
Packaging Details: Exported Case Packing
Delivery Time: 7-15 working days after received your payment
Payment Terms: D/P, L/C, T/T, Paypal, , Western Union
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Micro Coil Heater Application: Injection Mold Hot Runner
Thermocouple: Type J, K Moistureproof: IP 65
Watt Density: 6.5 W / CM 2 Dimension(L*W*H): Custom Size
Power: 200-3000W Warranty: 1 Year
High Light:

Electric Coil Heaters

,

coil heater with thermocouple

,

High Pressure Resistance Micro Coil Heaters

Micro Coil Heater for Injection Mold Hot Runner System





1. Micro Coil Heater Brief Introduction


Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


2. Micro Coil Heater Characteristics


a. Very good performance of the heating uniformity in the heating area.
b. The inside insulated cover, same as the German GC.
c. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
d. The moisture-proof can be IP65, suitable for working in bad condition.

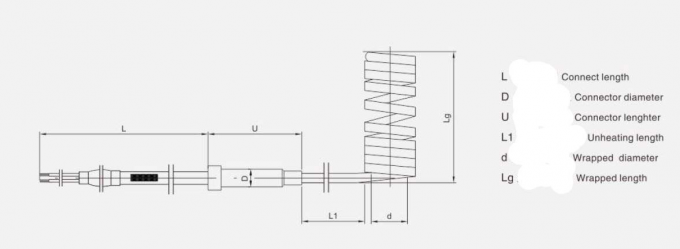

3. Micro Coil Heater Parameter.



High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System

  • Standard Configuration
  • Material :304
  • Unheated length(L1):45mm
  • Connector(cold side)(DxU):
  • Square cross-section:Ф7.6x26mm
  • Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
  • Power lines,grounding wire length(L):1000mm
  • Jacket:Silicone fiberglass sheathing establishment,black and others
  • Thermocouple:J tpye
  • Compensating lead wire length(L):1000mm
  • Surface treatment:sandblasting,black, polish

Spring coil heater (H series)

3.2x1.8

Φ1.8
Φ2.0

Φ2.5

4.2x2.2

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance  201W-2000W

+5%-10%

Out jacket length

30mm~280mm

inside jacket diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

0.05mm~0.10mm

Tolerance cross section

+/-0.10mm

+/-0.15mm

Thermocouple

K,J,E

None

K,J,E

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

600V

800V





4. Copper Heaters Coil Application


Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.



5. Packing Information



High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System





6. Transportation



High Pressure Resistance Micro Coil Heaters for Injection Mold Hot Runner System
