Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor

Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor

    • Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor
    • Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor
    • Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor
    • Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor
  • Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor

    Product Details:

    Place of Origin: China
    Certification: ISO9001/ CE

    Payment & Shipping Terms:

    Minimum Order Quantity: 10pcs
    Price: Negotiable
    Packaging Details: Carton or as per your request
    Delivery Time: 7~20 working days
    Supply Ability: 100000 pcs per Month
    Contact Now
    Detailed Product Description
    Product Name: Fast Response Handle-Held Type K Mineral Insulated Thermocouple Temperature Sensor Application: Temperature Sensor For Industry
    Calibration: Type K Accuracy: Class I
    Max.temperature: 900F Or 500C Sheath Material: 304SS ,316SS
    High Light:

    temperature sensor rtd

    ,

    temperature sensor rtd pt100

    ,

    Fast Response Mineral Insulated Thermocouple

    Fast Response Handle-Held Type K Mineral Insulated Thermocouple Temperature Sensor



    Product  Description:


    Hand held penetration probe used to puncture solid or semi-solid food. This rigid stemmed hand held type K thermocouple with pointed tip is designed for penetration into solids, semisolids or liquids. The thermocouple tip is housed in stainless steel tube, swaged to a sharp point. It includes a plastic handle, 1 metre coiled cable and mini plug for use with hand held indicators.



    Fast Response Handle Held Type K Mineral Insulated Thermocouple Temperature Sensor



    Specification:



    Probe Tip Option

    Radius Tip Style , Drill Tip Style

    Calibration

    J, K, T ,  For all other calibrations contact factory for availability



    Sheath Material

    304 Stainless Steel

    316 Stainless Steel

    Junction

    Ungrounded , Grounded

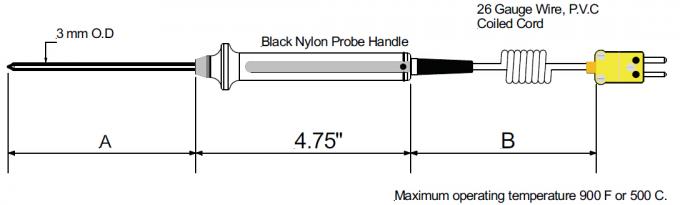

    Coiled Cord Dimension

    Retracted Length   Extended Length

    12”                 48” to 60”

    24”                  120”

    32”                  180”

    60”                   30ft

    96”                   45ft

    Termination type

    3” split leads and 1/2” Bare Ends.

    Mini Male Plug





    Feature:


    1. Various Models - Surface, Spear and Immersion
    2. Various Temperature ranges
    3. Type 'K' thermocouple calibration
    4. Fitted with a 2-pin miniature plug for connection to hand-held digital thermometers, loggers, etc.


    Application:


    The Handle Held Thermocouple has been designed to be used in below area,
    1. Food & Beverage
    2. Dry goods
    3. Used with the digital thermometer
