Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE & ISO |
Model Number: | Coil Heater |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Exported Case Packing |
Delivery Time: | 7-15 working days after received your payment |
Payment Terms: | L/C, D/P, T/T, Western Union, Paypal |
Supply Ability: | 11,000pcs per month |
Product Name: | Copper Heater Coil | Insulated Material: | Comressed MgO |
---|---|---|---|
Application: | Hot Runner | Lead Wire Length: | 1000mm |
Watt Density: | 6.5 W / CM 2 | Power(W): | 200-3000W |
Dimension(L*W*H): | Custom Size | Max.Tempreture: | 650℃ |
Highlight: | electric resistance heater,coil heater with thermocouple,Professional Copper Hot Runner Heaters |

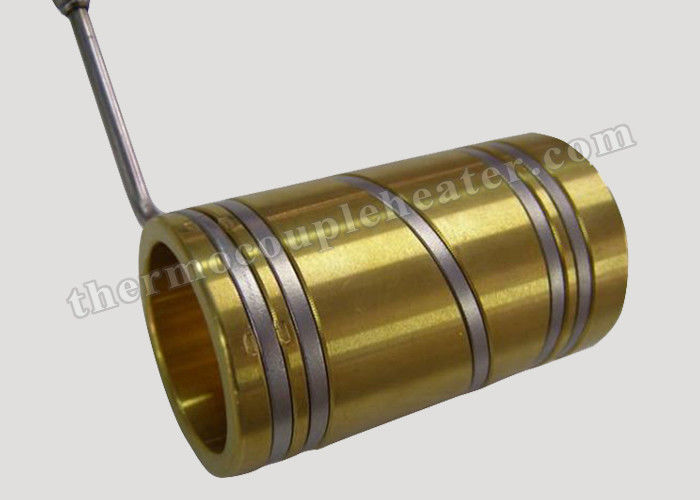

Hot Runner Copper Heaters Coil
1. Copper Heaters Coil Brief Introduction
2. Copper Heaters Coil Characteristics

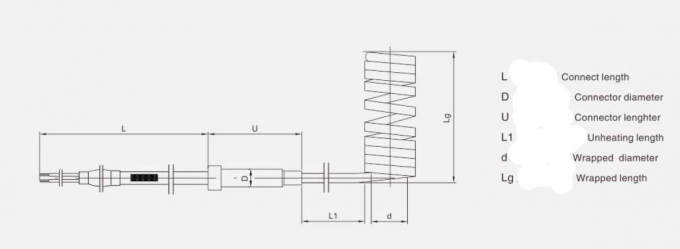

3. Copper Heaters Coil Parameter.
Spring coil heater (H series) |
3.2x1.8 |
Φ1.8 |
Φ2.5 |
4.2x2.2 |
Voltage |
220V,230V,240V |
|||
Power tolerance 115W-200W |
+/-10% |
|||
Power tolerance 201W-2000W |
+5%-10% |
|||
Out jacket length |
30mm~280mm |
|||
inside jacket diameter |
10mm~42mm |
|||
Unheating length |
45mm |
|||
Max power density |
9W/cm² |
|||
Heating Length tolerance |
+/-0.05mm |
|||
Unheating length tolerance |
+/-2.5% |
|||
Tolerance ID d ≤20mm |
0.05mm~0.10mm |
|||
Tolerance cross section |
+/-0.10mm |
+/-0.15mm |
||
Thermocouple |
K,J,E |
None |
K,J,E |
|
Material |
304,321,316 |
|||
Maximum working temperature |
650℃ |
|||
Die electrical strength |
600V |
800V |

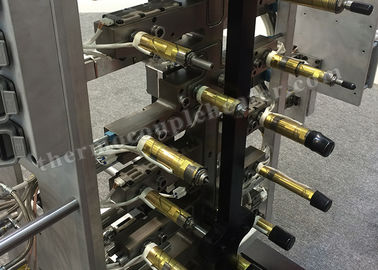

4. Copper Heaters Coil Application
Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.
5. Packing Information
6. Transportation
