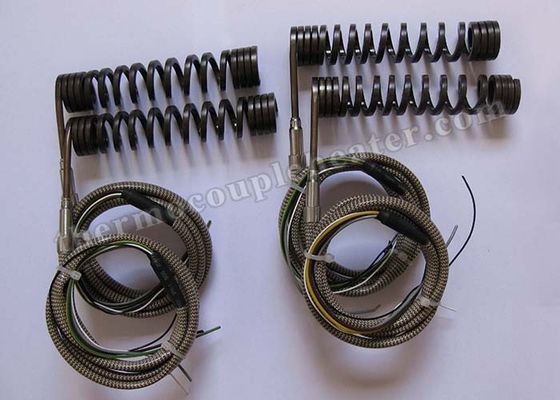

Electric Power Source Hot Runner Coil Heaters for Injection Molding System

Electric Power Source Hot Runner Coil Heaters for Injection Molding System

    • Electric Power Source Hot Runner Coil Heaters for Injection Molding System
    • Electric Power Source Hot Runner Coil Heaters for Injection Molding System
    • Electric Power Source Hot Runner Coil Heaters for Injection Molding System
  • Electric Power Source Hot Runner Coil Heaters for Injection Molding System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: netotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Hot Runner Coil Heater Power Source: Electric
    Warranty: 1 Year Power(W): 200-3000W
    Thermocouple: Type J, K Max.Tempreture: 650℃
    Heating Resistance Wire: Cr 20 Ni 80 Watt Density: 6.5W/CM2(not Including Cool Zone)
    High Light:

    Electric Coil Heaters

    ,

    coil heater with thermocouple

    Hot Runner Coil Heaters for Injection Molding System




    1. Hot Runner Coil Heaters Brief Introduction


    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various  cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.


    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.


    2. Hot Runner Coil Heaters Characteristics


    a. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
    b. The moisture-proof can be IP65, suitable for working in bad condition.
    c. Very good performance of the heating uniformity in the heating area.
    d. The inside insulated cover, same as the German GC.


    3. Hot Runner Coil Heaters Application


    This Hot Runner Coil Heaters is widely applied for hot runner system, plastic industry, packaging machinery, medical equipment, casting process,other electric heating industry, etc..


    4. Hot Runner Coil Heaters Parameter.



    • Standard Configuration
    • Material :304, 316
    • Unheated length(L1):45mm
    • Connector(cold side)(D1xU): Ф3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Surface treatment:sandblasting;

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V





    5. Packing Information

    Electric Power Source Hot Runner Coil Heaters for Injection Molding System



    6. Transportation

    Electric Power Source Hot Runner Coil Heaters for Injection Molding System
