Product Name: | Plastic Industry Thermocouple With Calibration Type K J In Nozzle Bolt Style | Application: | Temperature Sensor For Plastic And Rubber Industry |
---|---|---|---|
Calibration: | Type K | Accuracy: | Class I |
Max.temperature: | 900F Or 500C | Probe Material: | 304SS ,316SS |
Highlight: | temperature sensor rtd,temperature sensor rtd pt100,Nozzle Bolt Style Thermocouple |

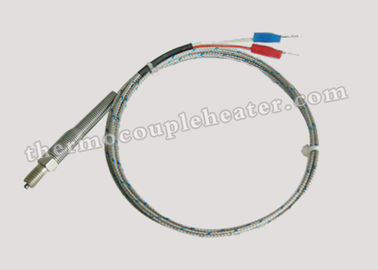

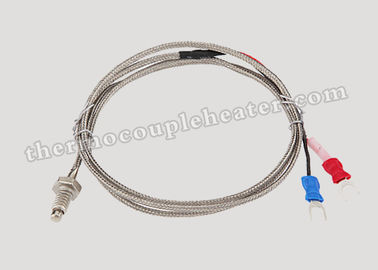

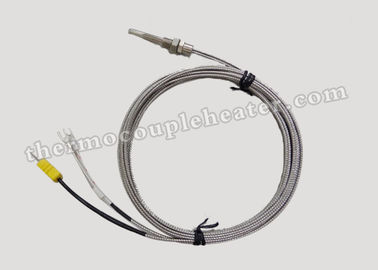

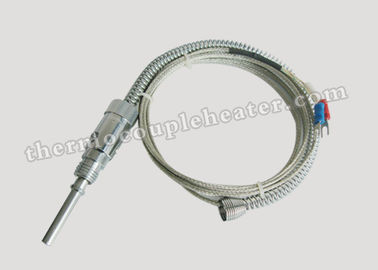

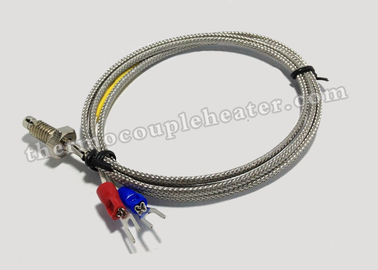

Plastic Industry Thermocouple With Calibration Type K J In Nozzle Bolt Style
Product Description:
Nozzle style thermocouples measure the temperature of the nozzle when placed in a threaded, shallow drill-hole on an injection nozzle. This kind of thermocouple does not contact the material flow directly. They are ideal in applications for nozzles with minimal wall thickness between the inside bore and hex flat. Threaded nozzle Thermocouples are equipped with either a threaded, rotatable swivel bolt, or a fixed bolt which turns independently of the extension leads for easy installation. A wide selection of sensors, lead wire termination options and accessories is available from stock or can quickly be manufactured to customer specifications.
Specification:
Nozzle Bolt Thread Size |
1/4” x 28 UNF M6 X 1mm M8 X 1mm M8 x 1.25mm |
Calibration |
Type K ,Type J
|
Accuracy |
Class I
|
Junction |
Ungrounded , Grounded
|
Wire Description |
20 Gage Stranded stainless steel braid Flexible armor cable 20Gage Stranded fiberglass cable 20Gage Stranded Cable |
Termination type |
3” split leads and 1/2” Bare Ends, 3” split leads and No.10 Spade lugs, Standard Male Plug, Standard Female Jack, Mini Male Plug, Mini Female Jack, |
Accessories |
None, Bx connector, Cable clamp |
Feature:
Nozzle Bolt style thermocouple are designed with a low profile for threading into platens. The thermocouple have a short depth for installation ,which thus allow control of thin sections of platens.
1).Nozzle Bolt Thread Size , 1/4” x 28 UNF ,M6 X 1mm, M8 X 1mm, M8 x 1.25mm ;
2).Calibration , Type K , Type J ;
3). Accuracy, class I ;
4). Wide variety of wire options,
20 Gage Stranded stainless steel braid
Flexible armor cable
20Gage Stranded fiberglass cable
20Gage Stranded Cable
5). Termination type,
3” split leads and 1/2” Bare Ends,
3” split leads and No.10 Spade lugs,
Standard Male Plug,
Standard Female Jack,
Mini Male Plug,
Mini Female Jack,
Application:
The Nozzle style Thermocouple has been designed to be used in the plastics/die casting industries where mounting of the sensor in the nozzle is required. These units come in standard thermocouple base metals (J & K).
1). Plastic Extruders
2). Injection Molds
3). Presses
