Product Name: | SS Hoop Pipe Clamp Thermocouple In Type K For Petroleum And Chemical Industry | Application: | Temperature Sensor For Plastic Industry |
---|---|---|---|
Calibration: | Type K | Accuracy: | Class I |
Max.temperature: | 900F Or 500C | Probe Material: | 304SS ,316SS |
Highlight: | resistance temperature detecto,temperature sensor rtd pt100,SS Hoop Pipe Clamp Thermocouple |

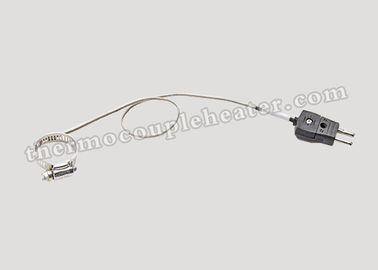

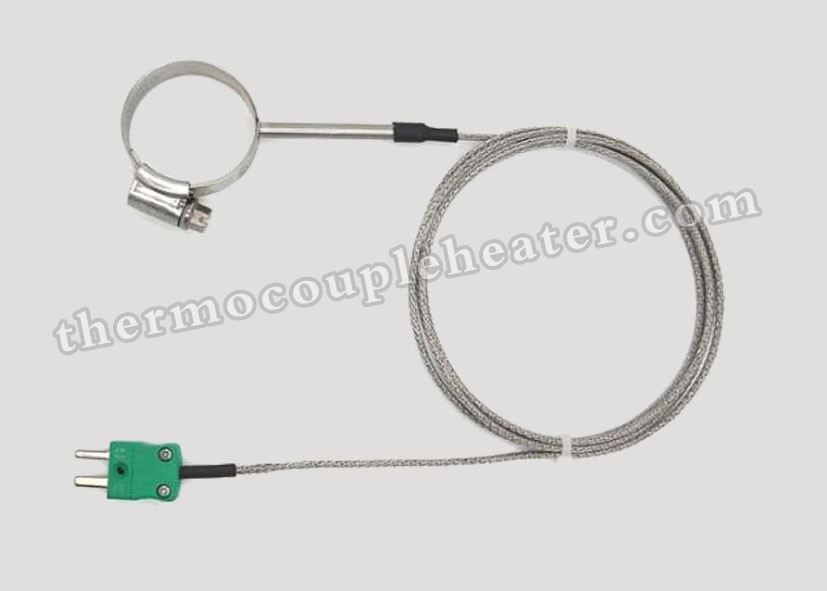

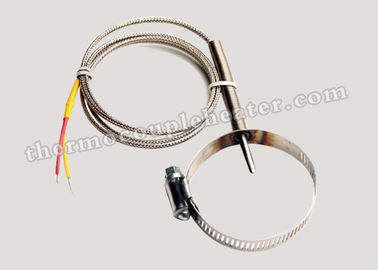

SS Hoop Pipe Clamp Thermocouple In Type K For Petroleum And Chemical Industry
Product Description:
Stainless Steel Pipe Clamp thermocouples are designed to monitor pipe temperatures without drilling or tapping, ideal for measuring pipe temperatures. Also use to measure tubular heater sheath temperature. Stainless steel braided shield protects the element, which senses the temperature on the surface of the clamp.
Specifications:

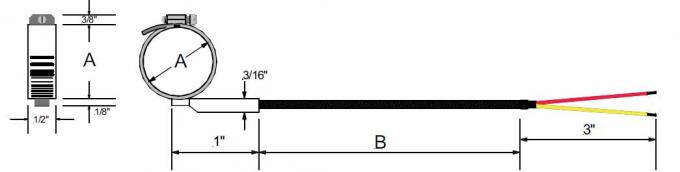

Diameter Range |
1 1/16”-2” 1 13/16”-2 3/4” 2 9/16”-3 1/2” 3”-5” 5”-7” |
Calibration |
Type K ,Type J,
|
Accuracy |
Class I
|
Junction |
Ungrounded , Grounded
|
Wire Description |
20 Gage Stranded stainless steel braid Flexible armor cable 20Gage Stranded fiberglass cable |
Termination type |

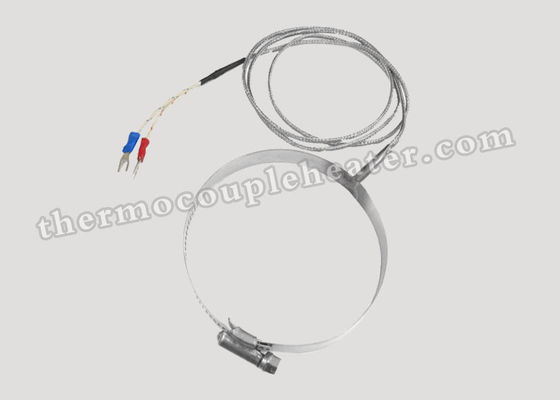

3” split leads and 1/2” Bare Ends, 3” split leads and Spade lugs, Standard Male Plug, Standard Female Jack, Mini Male Plug, Mini Female Jack, |
Accessories |
None, Bx connector, Cable clamp |
Feature:
1) Ideal for temperature measurement of the pipe with gases or liquids;
2) Anti-vibration;
3) Easy to install ;
4) Temperature range : 0 - 500 C
Application:
The hoop pipe clamp style thermocouples are used in industry for measuring the temperature of pipe with gases, liquids for Petroleum and Chemical industry. The probe terminal are usually placed on the pipe by a shrinkable clamp ring. This thermocouple is easy to install and replace with its simple structure, also fast responding ,high accuracy and stable performance.
