6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001

China 6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001 supplier
6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001 supplier 6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001 supplier 6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001 supplier 6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001 supplier

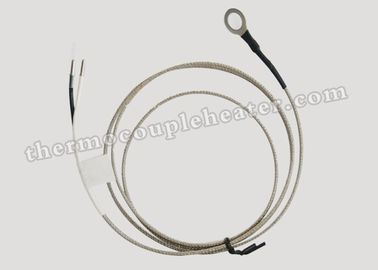

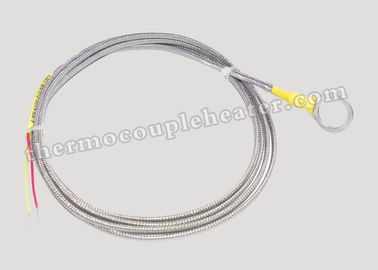

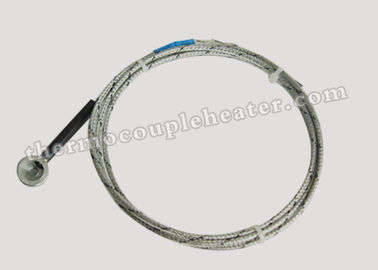

Large Image :  6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001

Product Details:

Place of Origin: China
Certification: ISO9001 / CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: 6mm / 12mm ID Ring Terminal Style Type K Thermocouple For Plastic Industry Application: Temperature Sensor For Plastic Industry
Calibration: Type K Accuracy: Class I
Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS
High Light:

resistance temperature detecto

,

temperature sensor rtd pt100

,

Ring Terminal Style Type K Thermocouple

6mm / 12mm ID Ring Terminal style Type K Thermocouple For Plastic Industry



Product  Description:


Ring Terminal style Thermocouple are designed for mechanical fastening to tooling, motors or to any surface where temperature monitoring or control is required. There are a big variety of ring terminal sizes, wire insulations FEP 400°F (204°C) or Fiberglass 900°F (482°C) with optional stainless steel over-braid for abrasion resistance.  The ring terminal thermocouple's terminal can be placed beneath existing screws or bolts to permit surface temperature measurement.

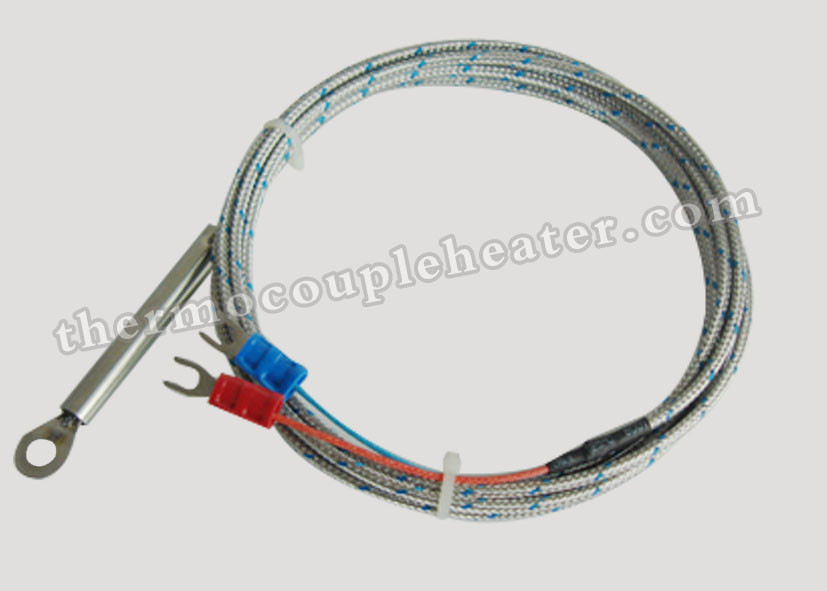

6mm / 12mm ID Ring Terminal Style Type K Thermocouple Approved ISO9001

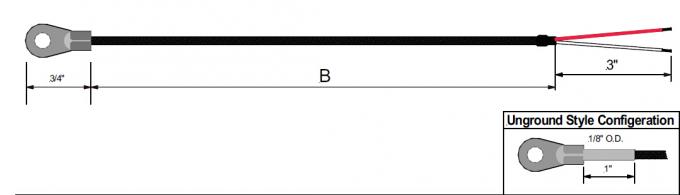

Specifications:



Ring Terminal

Hole Size

No.8 Ring Terminal

No.10 Ring Terminal

1/4” I.D. Hole Ring Terminal

1/2” I.D. Hole Ring Terminal


Calibration

Type K ,Type J, Type T



Accuracy

Class I



Junction

Ungrounded , Grounded



Wire Description

20 Gage Stranded stainless steel braid

Flexible armor cable

20Gage Stranded fiberglass cable

20Gage Stranded Cable

Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and No.10 Spade lugs,

Standard Male Plug,

Standard Female Jack,

Mini Male Plug,

Mini Female Jack,



Accessories

None,

Bx connector,

Cable clamp



Feature:


1). Type K thermocouple
2). Special Limits of Error (+/- 0.4% of reading)
3). -40 °F to 500 °F operating range (-40 °C to 260 °C)
4). Stainless steel over-braid cable with ™ insulated conductors;
5). Constant response time  (1500 milliseconds);
6). Ring terminal bendable



Application:


1). Petroleum and Chemical;
2). Power plant and Water treatment;
3). Medical and Food;
