Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry

China Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry supplier
Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry supplier Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry supplier Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry supplier

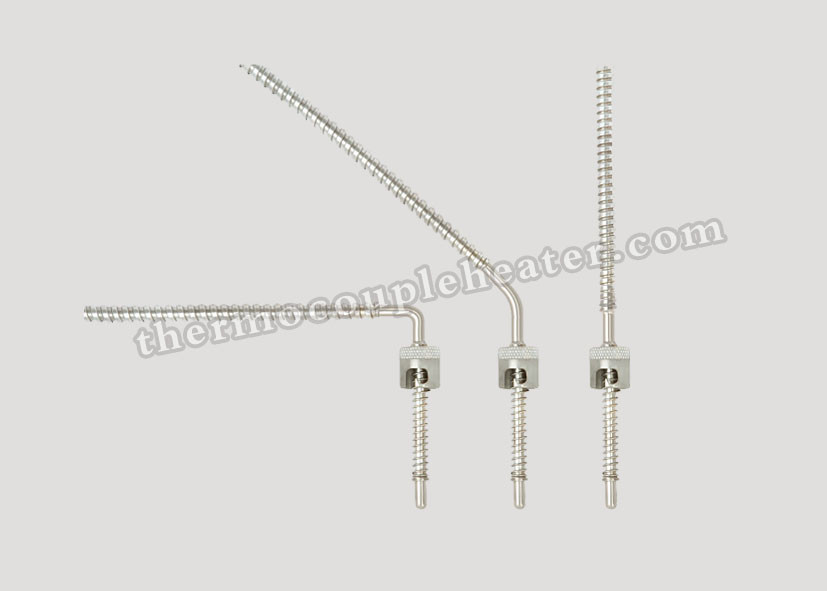

Large Image :  Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Type J Fixed Bayonet Style Thermocouple For Plastic And Packaging Industry Application: Temperature Sensor For Plastic And Packagking Industry
Calibration: Type J Accuracy: Class I
Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS,
High Light:

temperature sensor rtd

,

temperature sensor rtd pt100

,

Type J Fixed Bayonet Thermocouple

Type J Fixed bayonet style thermocouple for plastic and packaging industry



Product  Description:


The Fixed Bayonet Thermocouple is a Wire and tube immersion thermocouple with compressible spring and locking cap.  Bayonet Thermocouples are mainly used for applications which require longer immersion depths. The probe of the Bayonet Thermocouple is more rigid, and provides a more suitable contact in a deeper well. The compressible spring outer covering and its locking cap, keep the probe in place securely. The varied 90° Bayonet Thermocouples are often selected for application where space is at a premium, and the 90° bend allows for a tighter, neater installation. All bayonet Thermocouples have flexible extensions (over braid or armor styles) that are ideal for connection to near, or distant junction boxes.

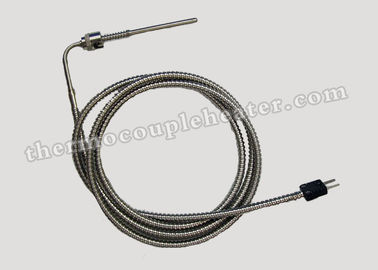

Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry

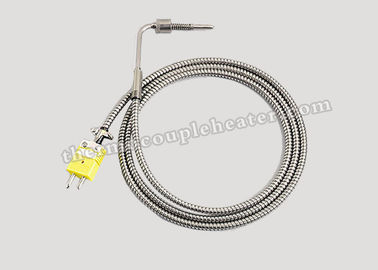

Type J K Fixed Bayonet Thermocouple For Plastic / Packaging Industry



Specifications:



Probe material

304SS ,316SS,



Outside diameter

1/8”, 3/16”,1/4”

Calibration

Type J, Type K, Type T



Accuracy

Class I



Junction

Ungrounded , Ground



Cable Conductor Description

24 Gage ,Solid Conductor

24 Gage,7 Stranded Conductors

20 Gage ,Solid Conductor

20 Gage,7 Stranded Conductors



Cable Insulation Description



Fiberglass Insulation:950F/510C

Insulation:500F/260C

PVC Insulation:221F/105C

, Shielded +Drain Wire

PVC, Shielded +Drain Wire

Outer Jacket Protection

None

Stainless Steel Braid

Armor Flexible Cable:0.28” Outside Diameter

Armor Fexible Cable:0.21” Outside Diameter

Termination type

3 1/2” split leads and Bare Ends,

3 1/2” split leads and No.10 Spade lugs,

Standed Male Plug(350F)

Standed Female Jack(350F)

Mini Male Plug(350F),

Mini Female Jack(350F)



Accessories



None,

Bx connector,

Cable clamp





Feature:


1). Thermocouples respond quite fast due to the positive contact to the measuring surface. „
2). The thermocouple sensor is mounted to the process with the use of a fixed spring when a matching adapter is supplied. „
3). The thermocouple sensors available are provided with a variety of sheath materials including stainless steels, corrosion resistant and high temperature oxidation resistant alloys. „
4). Thermocouple temperature ranges are dependent on the bayonet style, sheath & conductor diameter, and element calibration. „ The common accessories are a threaded adapter with a locating pin allowing the bayonet cap to be locked in place while under spring tension. Also a pipe or hose clamp that has the adapter welded to the clamp. The clamp sizes can be designed for a large variety of pipe and vessel diameters.


Application:


1). Fixed bayonet thermocouples applications include temperature measurement inside tubes and drilled out blocks, Where conventional thermowells are not accessible. In casings and bearing housings. Where temperature measurement is needed inside the wall of a plate or vessel. „
2). Fixed bayonet thermocouples are designed for quick replacement and connection to a bayonet adapter that is threaded into extruder barrels, injection molds and platens to control process temperatures.
