High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple

China High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple supplier
High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple supplier High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple supplier High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple supplier High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple supplier

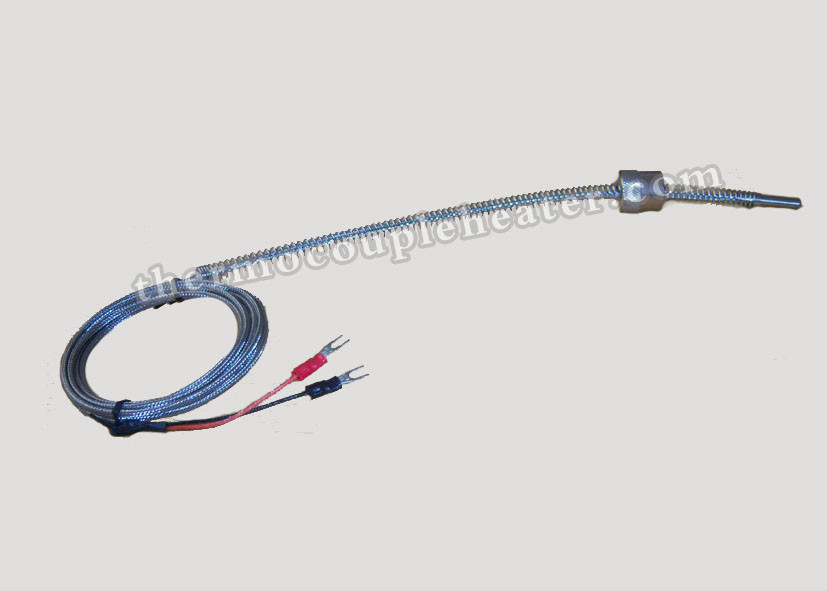

Large Image :  High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Type K Miniature Adjustable Bayonet Style Thermocouple Application: Temperature Sensor For Plastic And Rubber Industry
Calibration: Type K Accuracy: Class I
Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS
High Light:

temperature sensor rtd

,

resistance temperature detecto

,

Type K Adjustable Bayonet Thermocouple

Type K Adjustable Bayonet Thermocouple For Plastic Industry



Product  Description:


Adjustable bayonet thermocouple is a kind of general purpose temperature sensor , which is designed to satisfy all applications mainly in plastic and rubber industry, where metal sheathed thermocouples are required. They are especially suited for applications where the metal sensor tip is fitted directly into a drilled hole. The adjustable bayonet cap can have the sensor with a reasonable pressure at the tip when installed correctly. A wide range of accessories or components can be individually selected for the appropriate application. With the flexibility of assorted diameters and manually adjustable immersion lengths .
The temperature sensor can be modified to suit specific application when required.



High Temperature Thermocouple RTD , Type K Adjustable Bayonet Thermocouple

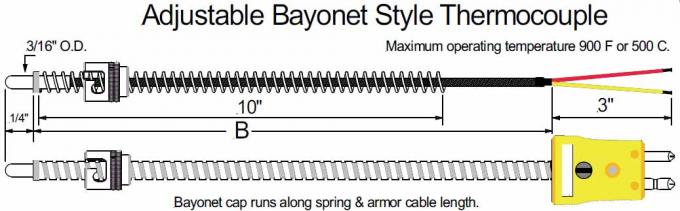

Specifications:



Probe material

304SS ,316SS,



Calibration

Type K ,Type J



Accuracy

Class I



Junction

Ungrounded , Ground



Wire description

20 Gage Stranded stainless steel braid

Flexible armor cable

20Gage Stranded fiberglass cable

20Gage Stranded Cable

Termination type

3” split leads and 1/2” Bare Ends,

3” split leads and 1/2” Spade lugs,

Stranded Male Plug,

Stranded Female Jack,

Mini Male Plug,

Mini Female Jack,



Accessories



None,

Bx connector,

Cable clamp



Feature:


1. The Adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
2. The Adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
3. With or without stainless steel overbraid or interlocking flexible armour cable;
4. Wire and tube construction ;
5. Easily replaceable and interchangeable ;



Application:


1. Plastics and rubber industry;
2. Dies for extrusion profiles;
3. Direct installation into the process;
4. Packaging industry;
5. Compression platens;
