Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Certification: | ISO9001/CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Type K Miniature Adjustable Bayonet Style Thermocouple For Plastic Industry | Application: | Temperature Sensor For Plastic And Rubber Industry |
|---|---|---|---|
| Calibration: | Type K | Accuracy: | Class I |
| Max.temperature: | 900F Or 500C | Probe Material: | 304SS ,316SS, |
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100,Miniature Adjustable Bayonet Thermocouple |
||

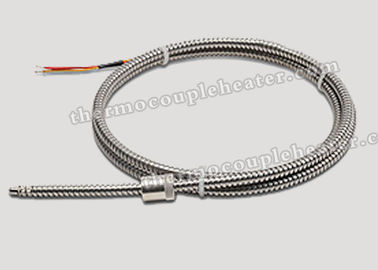

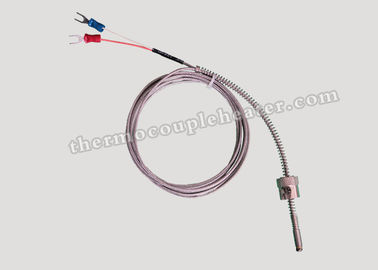

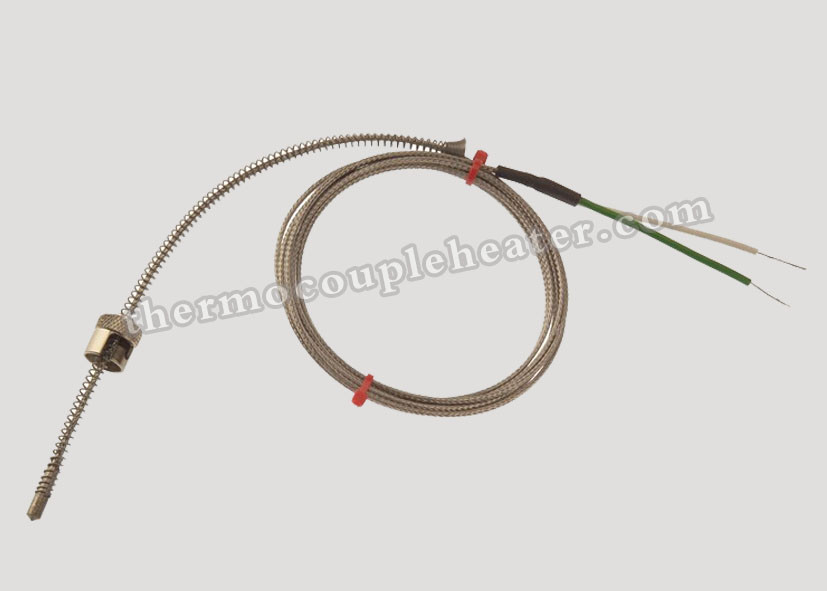

Type K Miniature Adjustable Bayonet Thermocouple For Plastic Industry
Product Description:
Adjustable bayonet thermocouple is a kind of general purpose temperature sensor , which is designed to satisfy all applications mainly in plastic and rubber industry, where metal sheathed thermocouples are required. They are especially suited for applications where the metal sensor tip is fitted directly into a drilled hole. The adjustable bayonet cap can have the sensor with a reasonable pressure at the tip when installed correctly. A wide range of accessories or components can be individually selected for the appropriate application. With the flexibility of assorted diameters and manually adjustable immersion lengths . The temperature sensor can be modified to suit specific application when required.

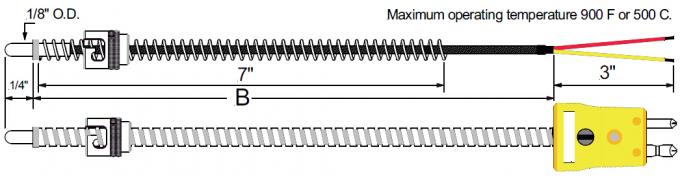

Specifications:
|
Probe Material |
304SS ,316SS,
|
|
Calibration |
Type K ,Type J
|
|
Probe Tip Diameter |
1/8” |
|
Accuracy |
Class I
|
|
Junction |
Ungrounded , Grounded
|
|
Wire Description |
24Gage Stranded stainless steel braid 0.210”O.D.Flexible armor cable 24Gage Stranded fiberglass cable 24Gage Stranded Cable |
|
Termination type |
3” split leads and 1/2” Bare Ends, 3” split leads and No.10 Spade lugs, Standard Male Plug, Standard Female Jack, Mini Male Plug, Mini Female Jack, |
|
Accessories |
None, Bx connector, Cable clamp |
Feature:

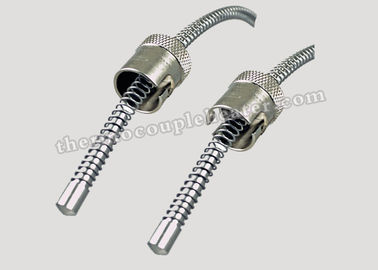

1. The miniature adjustable bayonet thermocouple allows for simple and rapid adjustment of the immersion length to each application , which can be adjusted to a specific length and mounted into the process directly ;
2. The miniature adjustable bayonet thermocouple are available with a variety of fixing mechanisms ;
3. With or without stainless steel overbraid or interlocking flexible armour cable;
4. Wire and tube construction ;
5. Easily replaceable and interchangeable ;
Application:
1. Plastics and rubber industry;
2. Dies for extrusion profiles;
3. Direct installation into the process;
4. Packaging industry;
5. Compression platens;
