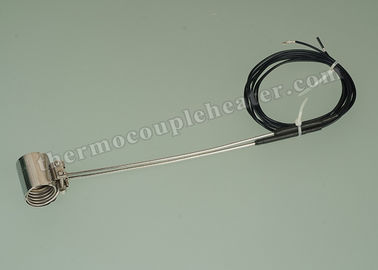

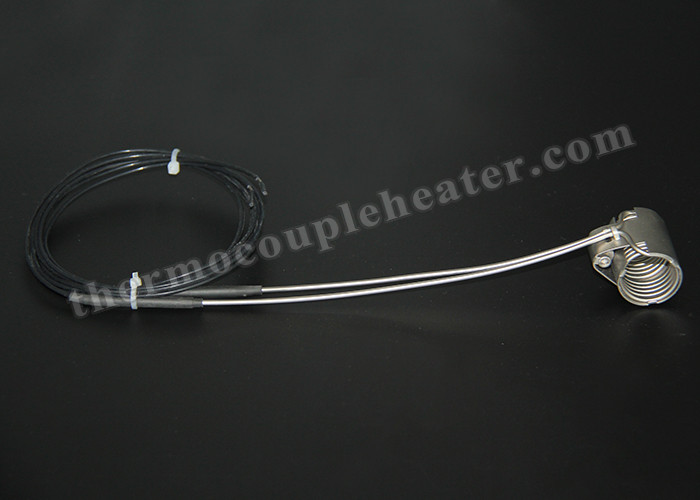

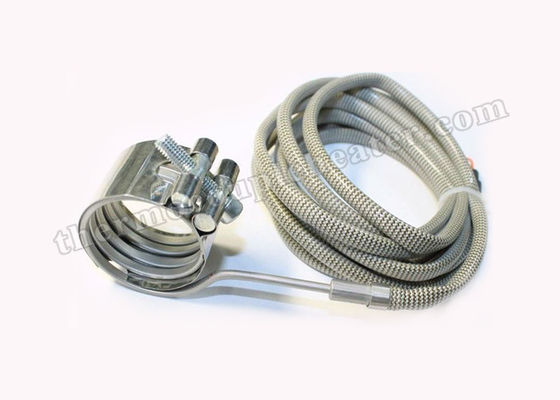

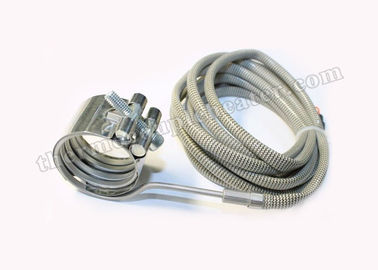

High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System

High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System

    • High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System
    • High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System
    • High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System
    • High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System
  • High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 11,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Heaters Coil Application: Hot Runner
    Warranty: 1 Year Thermocouple: Without, With K Or J Type
    Power(W): 70-3000W Port: Shanghai Or Shenzhen
    Heating Element: O Cr 20 Ni 80 Connector' Color: Silver Or Fully Black
    High Light:

    electric resistance heater

    ,

    coil heater with thermocouple

    ,

    304 Stainless steel Hotlock Heaters Coil

    Hotlock Heaters Coil for Hot Runner System




    1. Heaters Coil Brief Introduction



    • Make the groove according to the heating distribution
    • Compatiable with many coil heaters
    • Mini interior diameter 6mm
    • Mini length of the brass tube 30mm
    • Thermocouple K or J available
    • Good performance in heating conducting


    2. Heaters Coil Characteristics


    Standard sizes available with various cross section
    Various Watt Density options available.
    Robust Design with Choice of Terminal Exits
    Designed for even heat profile
    Precision fit on Hot Runner Nozzles & Manifolds
    Highly Non-corrosive
    Maximum heat transfer due to more contact area
    Advanced Thermal Engineering
    CE Certified
    Available with built in Thermocouple


    3. Heaters Coil Parameter.

    High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System

    • Standard Configuration
    • Material :304
    • Unheated length(L1):45mm
    • Connector(cold side)(D1xU): Ф3.5x40mm
    • Power lines,grounding wire length(L):1000mm
    • Surface treatment:sandblasting;

    Spring coil heater (H series)

    2.2x1.5, 2.4x1.6, Φ1.8,Φ2.0,Φ2.5

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~190mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.10mm

    Thermocouple

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    600V



    4. Heaters Coil Application


    Hot Runner Nozzles & Bushings.
    Hot runner Injection moulds
    Injection & Blow Moulding Machine Nozzles.
    PET prefrom & Thin wall container Moulds.
    Hot Runner Manifolds.





    5. Transportation

    High Heating Efficiency 304 Stainless Steel Hotlock Heaters Coil For Hot Runner System
