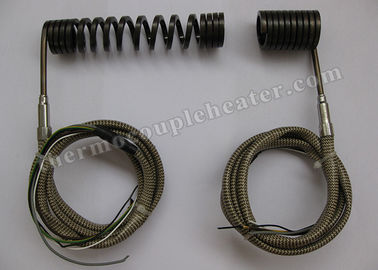

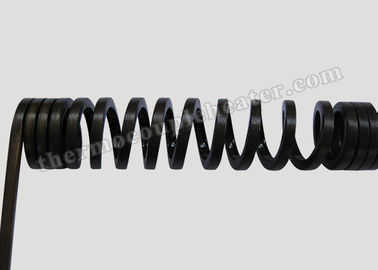

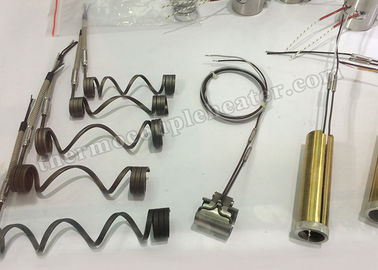

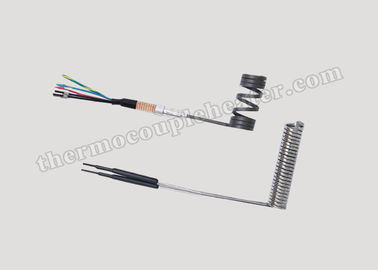

Moistureproof 4.2x2.2mm Hot Runner Heating Coil with J Thermocouple
1. Heating Coil Brief Introduction
Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high purity magnesium
oxide material, and strict process technology. There are various cross section and size for choice, such
as square, round and flat, provide high performance electric heater for heating hot runner mold and othe fields.
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise
temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also
can provide bright surface.
2. Heating Coil Characteristics
a. Very good performance of the heating uniformity in the heating area.
b. The inside insulated cover, same as the German GC.
c. High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special
requirement if customers need.
d. The moisture-proof can be IP65, suitable for working in bad condition.
3. Heating Coil Parameter.
- Standard Configuration
- Material :304
- Unheated length(L1):45mm
- Connector(cold side)(DxU):
- Square cross-section:Ф7.6x26mm
- Round flat cross-section:Φ7.5x29mm,Φ3.5x40mm
- Power lines,grounding wire length(L):1000mm
- Jacket:Silicone fiberglass sheathing establishment,black and others
- Thermocouple:J tpye
- Compensating lead wire length(L):1000mm
- Surface treatment:sandblasting,black, polish
|
Spring coil heater (H series)
|
3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7
|
Φ3.0
|
Φ4.0
|
Φ5.0
|
3.5x3.5
4.0x4.0
|
5.0x5.0
|
|
Voltage
|
220V,230V,240V
|
|
Power tolerance 115W-200W
|
+/-10%
|
|
Power tolerance 201W-2000W
|
+5%-10%
|
|
Out jacket length
|
30mm~280mm
|
|
Diameter of the inner sleeve/wrapped diameter
|
10mm~42mm
|
|
Unheating length
|
45mm
|
|
Max power density
|
9W/cm²
|
|
Heating Length tolerance
|
+/-0.05mm
|
|
Unheating length tolerance
|
+/-2.5%
|
|
Tolerance ID d ≤20mm
|
Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance ID d 20mm~30mm
|
Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance ID d ≥30mm
|
Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm
|
|
Tolerance cross section
|
+/-0.15mm
|
+/-0.20mm
|
|
Thermocouple
|
K,J,E
|
None
|
|
Material
|
304,321,316
|
|
Maximum working temperature
|
650℃
|
|
Die electrical strength
|
800V
|
1000V
|
4. Heating Coil Application
This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical
equipment, casting process,other electric heating industry, etc..
