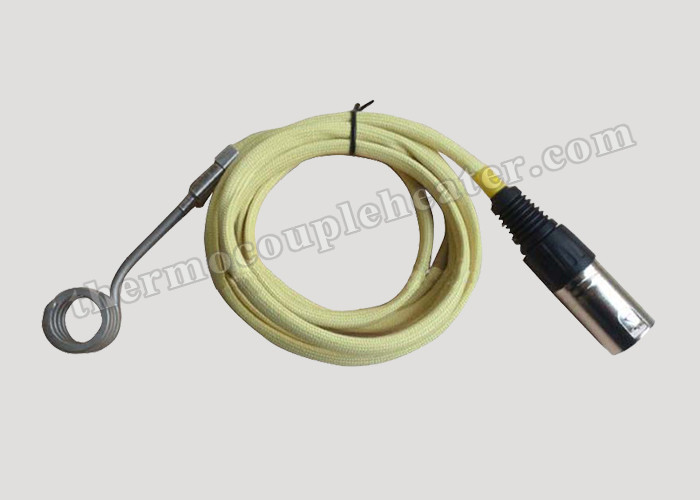

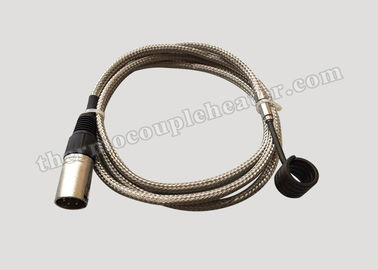

High Pressure Resistance 4.2x2.2mm Injection Molding Electrical Heating Coil With Male Plug

High Pressure Resistance 4.2x2.2mm Injection Molding Electrical Heating Coil With Male Plug

    • High Pressure Resistance 4.2x2.2mm Injection Molding Electrical Heating Coil With Male Plug
    • High Pressure Resistance 4.2x2.2mm Injection Molding Electrical Heating Coil With Male Plug
  • High Pressure Resistance 4.2x2.2mm Injection Molding Electrical Heating Coil With Male Plug

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 20 pcs
    Price: Negotiation
    Packaging Details: Exported Carton Box
    Delivery Time: 7-10 working days after received your payment
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 15,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Heaters Coil Application: Hot Runner System
    Power Source: Electric Lead Wire Length: 1000 Mm Or Custimized
    Material: Stainless Steel 304 316 Warranty: 1 Year
    Moisture Proof: IP65 Insulated Materia: Comressed MgO
    High Light:

    Injection Molding Electrical Heating Coil

    ,

    coil heater with thermocouple

    ,

    Electrical Heating Coil With Male Plug

    4.2x2.2mm Injection Molding Heaters Coil with Male Plug





    1. Heaters Coil Brief Introduction



    Wuhan Global Metal hot runner coil heater use Germany heater wire, United States high purity magnesium

    oxide material, and strict process technology. There are various  cross section and size for choice, such as

    square, round and flat, provide high performance electric heater for heating hot runner mold and other fields.



    Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise

    temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can

    provide bright surface.



    2. Heaters Coil Characteristics



    a. The inside insulated cover, same as the German GC.

    b.  High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special

    requirement if customers need.

    c.  Very good performance of the heating uniformity in the heating area.

    d.  The moisture-proof can be IP65, suitable for working in bad condition.



    3. Heaters Coil Application

    • Injection moulding machine nozzle
    • Hot Runner Nozzles & Bushings.
    • Packaging machineries
    • Hot runner Injection moulds.
    • Injection & Blow Moulding Machine Nozzles.
    • PET prefrom & Thin wall container Moulds
    • Hot runner Manifolds.

    4. Heaters Coil Parameter.

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V
