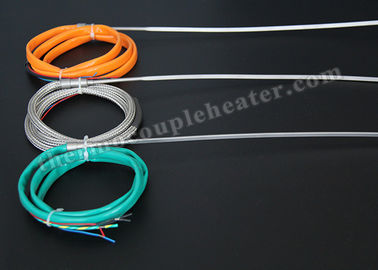

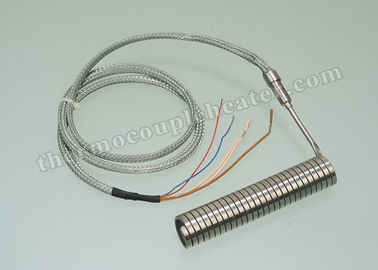

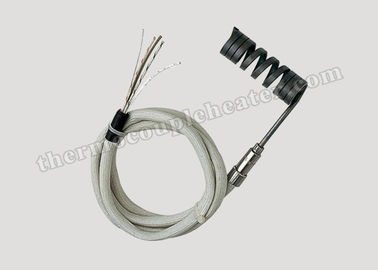

Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple

China Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple supplier
Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple supplier Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple supplier Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple supplier

Large Image :  Injection Molding Hot Runner Electric Coil Heaters With K Type Thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: -

Payment & Shipping Terms:

Minimum Order Quantity: 20 pieces
Price: negotiateable
Packaging Details: Exported Case Packing
Delivery Time: 7-15 working days
Payment Terms: Western Union, L/C, T/T, paypal
Supply Ability: 20,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Moisture Proof: IP65 Product Name: Coil Heater
Warranty: 1 Year Application: Injection Molding
Material: Stainless Steel 316.304 Cross Section: 4.2 X 2.2 Mm, 3 X 3 Mm, 4 X 2 Mm. Etc.
Insulated Material: Comressed MgO
High Light:

electric resistance heater

,

Electric Coil Heaters

,

Coil Heaters With K Type Thermocouple

Hot Runner Electric Coil Heater with K Type Thermocouple



1.  Coil Heater Brief Introduction



Wuhan Global Metal Hot Runner Electric Coil Heater with K Type Thermocouple use Germany heater wire,

United States high purity magnesium oxide material, and strict process technology. There are various cross

section and size for choice, such as square, round and flat, provide high performance electric heater for

heating hot runner mold and other fields.



Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise

temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can

provide bright surface.



2.  Coil Heater Application



This electric coil Heater is widely applied for hot runner system, plastic industry, packaging machinery, medical

equipment, casting process,other electric heating industry, etc..



3.  Coil Heater Characteristics



a.  The inside insulated cover, same as the German GC.

b.  Very good performance of the heating uniformity in the heating area.

c.  High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special

requirement if customers need.

d.  The moisture-proof can be IP65, suitable for working in bad condition.



4.   Coil Heater Parameter.



 Standard Configuration

  •  Material : 304
  • Unheated length(L1): 45mm
  • Connector(cold side)(DxU):
  • Square cross-section: Ф7.6x26mm
  • Round flat cross-section: Φ7.5x29mm,Φ3.5x40mm
  • Power lines,grounding wire length(L): 1000mm
  • Jacket:Silicone fiberglass sheathing establishment,black and others
  • Thermocouple: J tpye
  • Compensating lead wire length(L): 1000mm
  • Surface treatment: sandblasting,black, polish



Electric coil heater (H series)

3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7

Φ3.0

Φ4.0

Φ5.0

3.5x3.5
4.0x4.0

5.0x5.0

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance  201W-2000W

+5%-10%

Out jacket length

30mm~280mm

Diameter of the inner sleeve/wrapped diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d 20mm~30mm

Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d ≥30mm

Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm

Tolerance cross section

+/-0.15mm

+/-0.20mm

Thermocouple

K,J,E

None

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

800V

1000V
