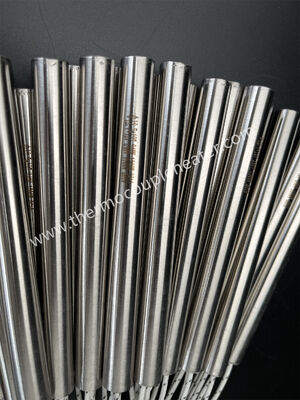

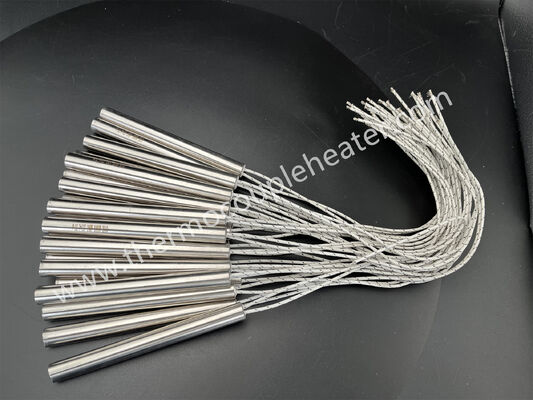

Industrial Stainless Steel Cartridge Heater 220V 500W - High Density Electric Resistance Heating Element Rod

Large Image : Industrial Stainless Steel Cartridge Heater 220V 500W - High Density Electric Resistance Heating Element Rod

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	USD 1-100 FOB Shanghai/pc
Packaging Details:	Boxes or Wooden Cartons
Delivery Time:	7-15 work days
Payment Terms:	D/A,D/P,T/T,,L/C
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Voltage Range:	12-480V	Wattage:	500W
Sheath Material:	SS304, SS321, SS316	Max Temperature:	750°C
Diameter Range:	2-3 Mm	Length Range:	15-2000 Mm
Highlight:	220V 500W cartridge heater , stainless steel cartridge heater , high-density resistance heating element

Working Principle

Product Type: Cartridge heater (single-end tubular heater), featuring one heating end and one cold end.
Construction: Manufactured with a metal tube housing a resistance alloy wire as the heating element, filled with high-purity, high-insulation magnesium oxide (MgO) powder.
Key Characteristics: High power density, high thermal efficiency, and fast heat dissipation.

Performance Rating

Minimum Diameter: 2 to 3 mm
Unlimited Length: 15 to 2000 mm
Lead Options: Various wire types available according to the operating environment.

Characteristics & Materials

Sheath Material: Alloy 304 stainless steel is used to provide high-temperature strength, excellent thermal conductivity, and oxidation resistance up to 1200°F (650°C). Alloy 304 is a nickel-chromium stainless steel.
Resistance Wire: German-imported nickel-chrome resistance wire (NiCr8020) is evenly stretched and threaded through ceramic insulators.
Insulation Filler: USA-imported high-purity magnesium oxide (MgO) fills all remaining space inside the ceramic insulator, enhancing thermal conductivity, dielectric strength, and heater longevity.
Standard Termination: Consists of 30 cm internally/externally connected flexible stranded nickel wire leads with high-temperature insulation. Custom lead styles are available to solve specific application challenges.
Sealing: Ceramic end cap protects the internal components from external contamination.

Technical Parameters

Max Heat Intensity	≤ 30 W/cm² (advisable)
Power Output	Depends on dimensions
Cold Leakage Current	≤ 0.1 mA at 242 V
Cold Insulation Resistance	5 MΩ min. (500 W minimum)
Dielectric Strength	1500 V for 1 sec
Max Working Temperature	750°C max.
Length Tolerance	± 1.5%
Diameter Tolerance	-0.01 to -0.06 mm
Connection Cut Tolerance	± 15 mm
Power Tolerance	5% to 10%
Cold Areas	5 to 25 mm (depends on length and diameter)
Built-in Thermocouple	Type J / Type K available
