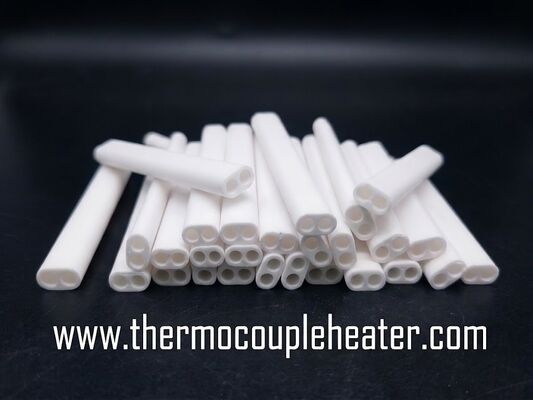

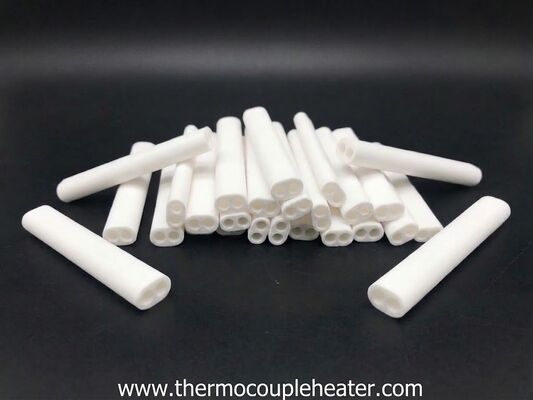

Alsint C799 99.7% Alumina Ceramic Double-Hole Insulating Tubes for High-Temperature Thermocouples

Large Image : Alsint C799 99.7% Alumina Ceramic Double-Hole Insulating Tubes for High-Temperature Thermocouples

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE
Model Number:	Mgo rod

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD$0.002/pc
Packaging Details:	paper carton, wooden carton
Delivery Time:	30days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100000pcs per month

Contact Now

Detailed Product Description

Material:	Magnesium Oxide Ceramic	Color:	White / Ivory
Bores:	Single,two,four Or Multi Bores	Shape:	Round, Square, Rectangular, Oval
Usage:	Works As Refractory Material	Al2O3 Purity:	99.7%
Density:	3.85 G/cm³	Vickers Hardness:	9
Flexural Strength:	280 MPa	Refractoriness:	1800 °C
Bore Configuration:	Double Bore
Highlight:	99.7% alumina ceramic insulating tubes , double-hole thermocouple ceramic tubes , high-temperature alumina ceramic tubes

Product Overview

We supply a comprehensive range of high-performance ceramic tubes and rods engineered from advanced technical ceramics, designed to meet demanding high-temperature and wear-resistant applications.

Material Range

1. Alumina & Mullite Ceramics

High Purity Alumina (99.7% Al₂O₃): Equivalent to Alsint 99.7 / Type C 799 / Rubalit C 799.
Dense Alumina (96% Al₂O₃): High mechanical strength and excellent thermal stability.
Mullite & Aluminium Silicate: Including Pythagoras Type C 610 / Dimulit C 610, Sillimantin 60, and Type C 530.

2. Zirconia Ceramics

TTZ: Magnesia Partially Stabilized Zirconia.
Y-TZP: Yttria Tetragonal Zirconia Polycrystal (Partially Stabilized).
ZDY: Yttria Fully Stabilized Zirconia.

3. Silicon Carbide Ceramics (SiC)

RSiC: Recrystallized Silicon Carbide.
NSiC: Nitride-Bonded Silicon Carbide.
RBSiC / SiSiC: Reaction-Bonded Silicon Carbide.

Shapes & Configurations

Available in a wide variety of dimensions, geometries, and custom specifications, including:

Single Bore, Double Bores, Four Bores, and Multi-Bore Tubing
Oval Tubes, Dee-Shaped Tubing, and Custom Molded Profiles

Ceramic Tube Physical Properties

Material	85Al₂O₃	90Al₂O₃	95Al₂O₃	99Al₂O₃
Al₂O₃	85%	90%	93%	99.30%
Fe₂O₃	≤1.0	≤0.5	≤0.5	≤0.3
Density (g/cm³)	3.4	3.5	3.6	3.85
Vickers Hardness	≥8.6	≥8.8	9	9
Water Absorption (%)	≤0.2	≤0.1	≤0.085	≤0.01
Refractoriness (°C)	1580	1600	1650	1800
Flexural Strength (MPa)	180	200	240	280
Wear Rate (room temperature, erosion, 100 grinding) (%)	≤3	≤0.5	≤0.5	≤0.5
