UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank

UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank
UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank

Large Image :  UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank

Product Details:
Place of Origin: China
Brand Name: GME
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Delivery Time: 10-15 days
Payment Terms: T/T,L/C
Detailed Product Description
Sheath Material: Incoloy 800 Flange Material: Stainless Steel 304 / 316L
Voltage Range: 110~480V Wattage Range: 1kW~150kW
Insulation Material: High-Purity Compressed Magnesium Oxide (MgO) Resistance Wire: Nickel-chromium Or Iron-chromium Alloy
Highlight:

UL certified Incoloy 800 flange heater

,

industrial water tank immersion heater

,

tubular heater with flange

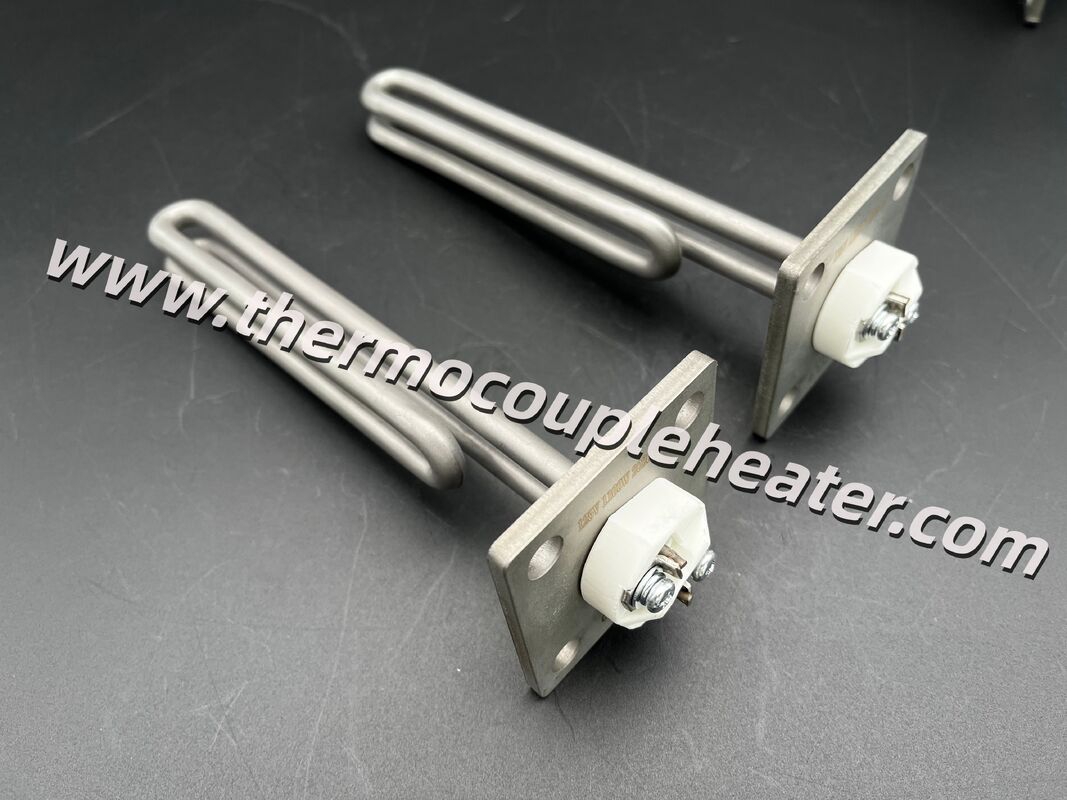

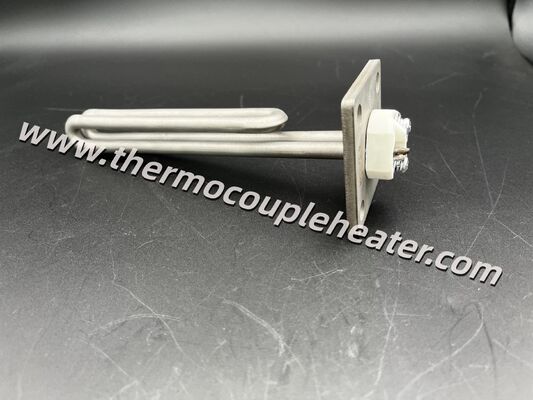

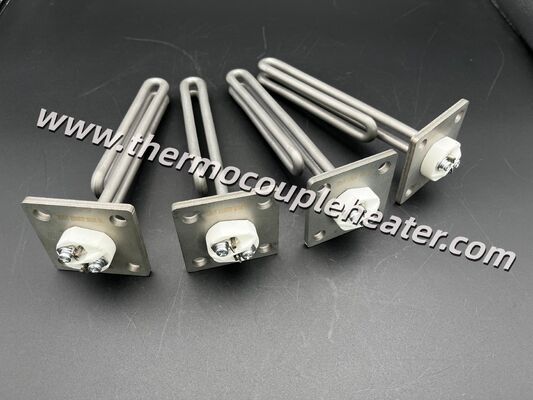

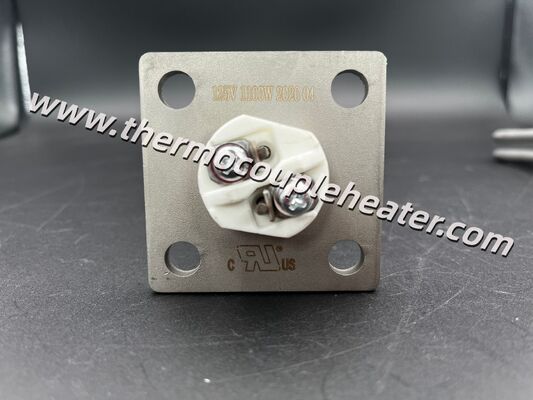

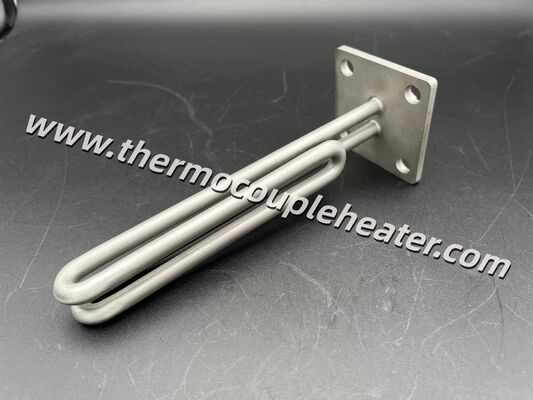

UL Certified Incoloy 800 Flange Immersion Heater for Industrial Water Tank

Product Overview

This UL-certified flanged immersion heater is specifically engineered for high-efficiency liquid heating in industrial water tanks, wash stations, boilers, and process heating systems. Constructed with premium Incoloy 800 sheathing, it offers superior resistance to high-temperature oxidation, scaling, and localized corrosion compared to standard stainless steel. Designed for direct immersion into water and aqueous solutions, this heavy-duty heating element ensures optimal heat transfer, precise thermal control, and extended service life in demanding industrial environments.

Product Specifications

Parameter Specification
Product Type Flanged Immersion Heating Element
Certification UL Certified
Sheath Material Incoloy 800
Flange Material Stainless Steel 304 / 316L (Customizable)
Flange Size Customizable
Application Medium Industrial Water, Clean Water, Process Water, Aqueous Solutions
Voltage / Wattage 110~480V, 1kW~150kW (Customized per design)
Insulation Material High-Purity Compressed Magnesium Oxide (MgO)

Key Features & Highlights

  • UL Certified Safety: Rigorously tested and certified to meet international industrial safety standards, ensuring reliable operation and smooth compliance audits.

  • Premium Incoloy 800 Sheath: Exceptional resistance to stress-corrosion cracking, high-temperature oxidation, and chemical degradation in aggressive water conditions.

  • High-Efficiency Heat Transfer: Direct immersion design maximizes thermal efficiency, enabling rapid heat-up times and uniform temperature distribution throughout the water tank.

  • Robust Flanged Mounting: Standard ANSI or customized flange configurations provide a leak-proof, heavy-duty seal and straightforward installation or replacement.

  • Heavy-Duty Construction: High-purity MgO insulation paired with premium resistance wire guarantees electrical integrity and prolonged element life under continuous duty.

  • Versatile Industrial Use: Ideal for industrial water heating, rinse tanks, boilers, CIP systems, and commercial heating units.
