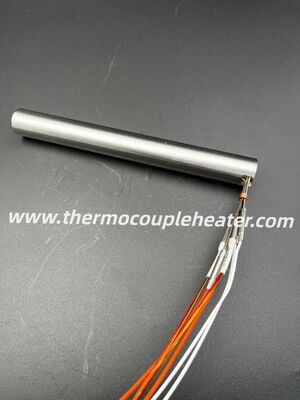

Microtubular Heaters With 2 Independent Heating Zones For Separate Temperature Control

Microtubular Heaters With 2 Independent Heating Zones For Separate Temperature Control

In precision injection molding and hot runner systems, maintaining different thermal profiles in a single, compact space is a major challenge. Our Microtubular Heaters are engineered specifically for applications that require separate, localized temperature management.

● Two Fully Independent Heating Zones: Featuring a unique dual-zone design, this heater operates as two separate thermal units within a single sheath, allowing you to control and adjust the temperature of each section independently.

●​ Dual Dedicated Type J Thermocouples: To achieve true separate control, each heating zone is equipped with its own built-in Type J thermocouple. This provides independent, real-time feedback for precise, closed-loop temperature management per zone.

●​ Brass & Stainless Steel Sheath: Combines a brass inner tube for rapid, uniform heat distribution with a rugged stainless steel outer sleeve. The stainless steel sheath provides exceptional mechanical protection and structural rigidity, preventing damage to the heating element during installation and high-pressure injection molding cycles.

●​ 1-Meter High-Temperature Cable: Comes with a durable 1-meter lead wire assembly, ensuring flexible and reliable integration into multi-channel control systems.
