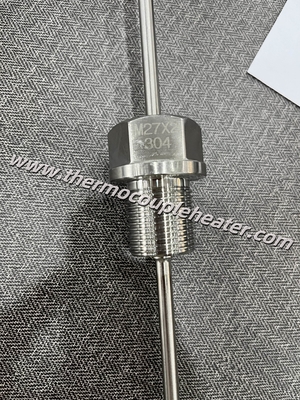

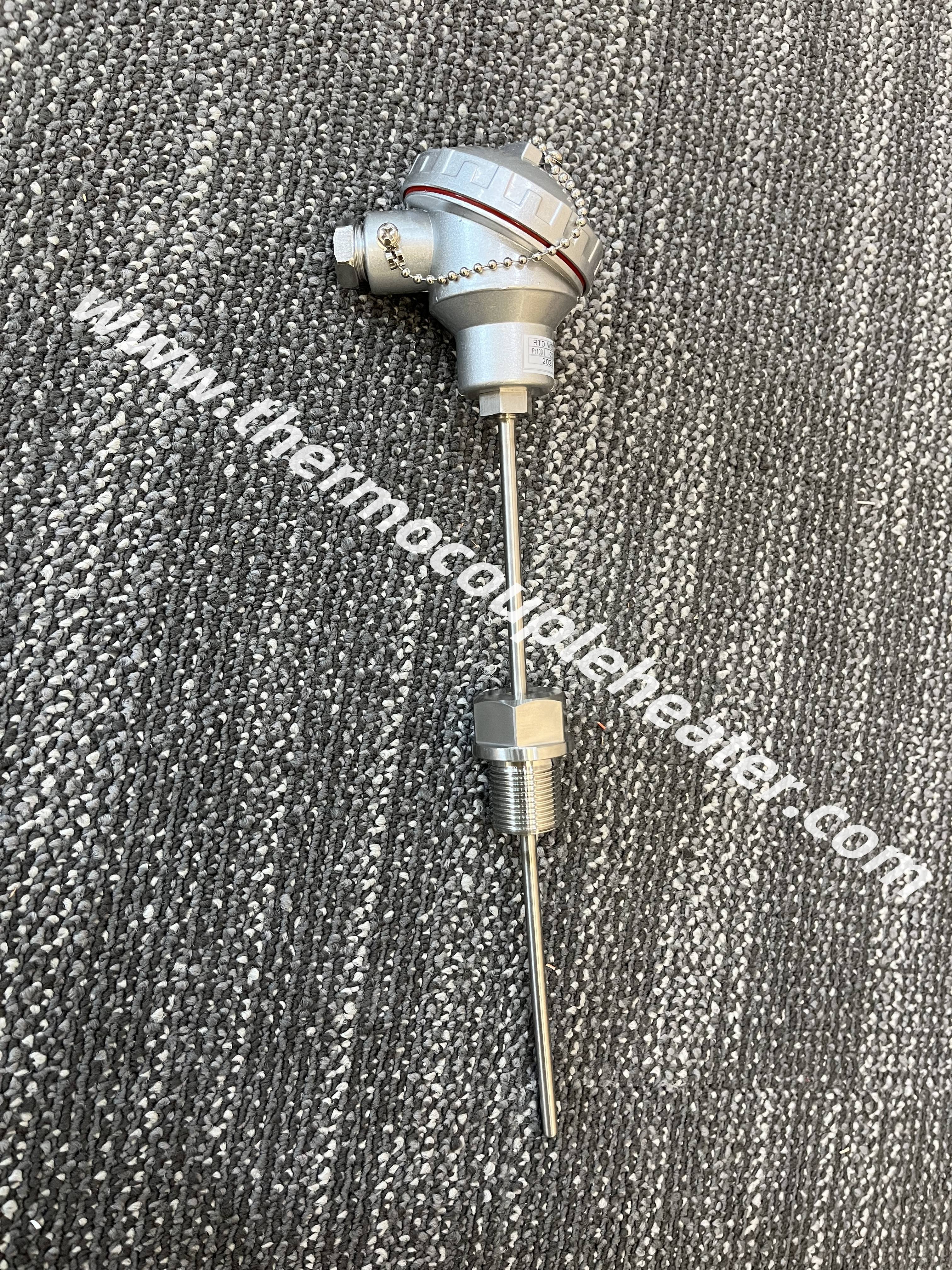

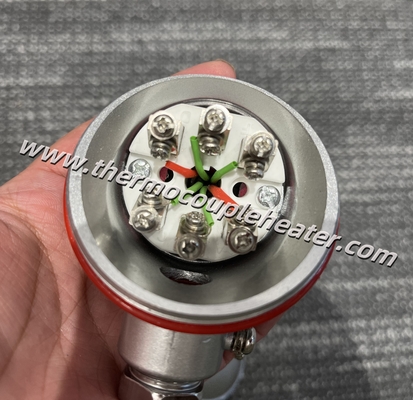

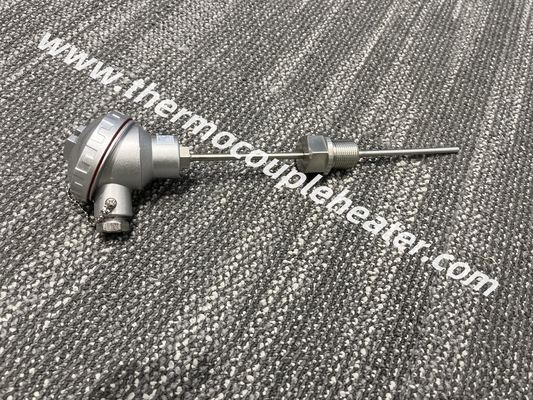

RTD Sensor Duplex PT100 Double Elements 6-wire Mineral Insulated Probe

Large Image : RTD Sensor Duplex PT100 Double Elements 6-wire Mineral Insulated Probe

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Exported Case Packing
Delivery Time:	2-3 weeks
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs

Contact Now

Detailed Product Description

Type:	Type J, K, T, E, N, S, RTD, Customized	Temperature Range:	Max 1600℃
Protective Tube Material:	Stainless Steel	Head Material:	Aluminum, SS Steel, Bakelite, Customized
Wiring:	2-wiring, 3-wiring, 4-wiring, 6-wiring, Customized
Highlight:	PT100 Duplex RTD Sensor , 6-wire RTD Sensor , Mineral insulated RTD Sensor

RTD Sensor Duplex PT100 Double Elements 6-wire Mineral insulated Probe

Product Features:

♦ Easy to install, several optional testing range
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Quick response, high accuracy
♦ Good long-term stability, low energy consumption,smart

Applicable Scope

♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control

Technical Index

Sensor	Type J, K, T, E, N, S, PT100, PT1000, customized
Thermowell	Available
Signal line specification	2-wiring, 3-wiring, 4-wiring, 6-wiring, customized
Accuracy	Class 1, Class 2
Testing range(°C)	Max 1600℃
Probe diameter	Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm, customized
Response Time	T=50°C 2.3s;T=90°C 5.4s
Ambient Temperature	-40~+85°C
Storage Temperature	-40~+125°C
Environmental Protection	IP65

RTD Sensor Duplex PT100 Double Elements 6-wire Mineral Insulated Probe 0
