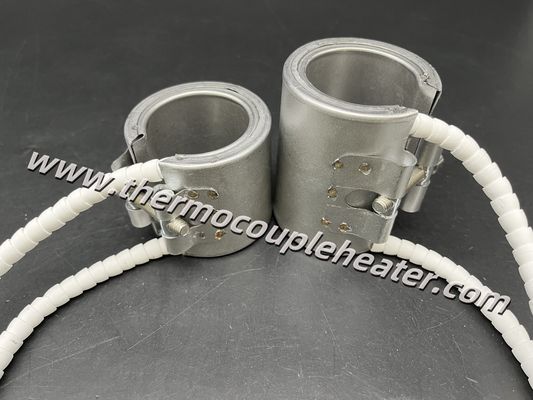

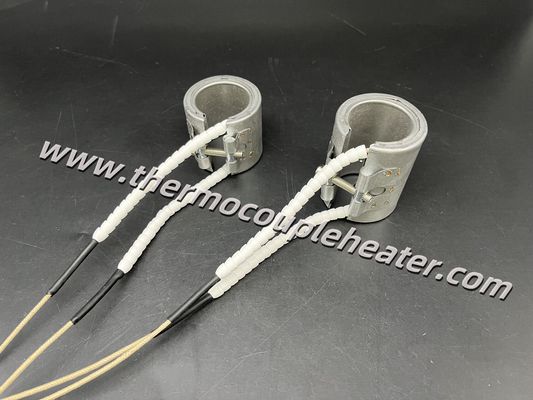

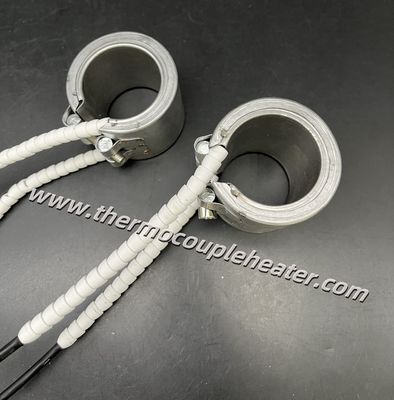

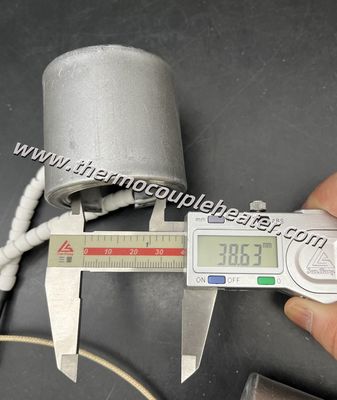

Mini Ceramic Ring Heaters Diameter 38mm Simple Wiring For Tight Spaces

Mini Ceramic Ring Heaters: Diameter 38mm, Simple Wiring For Tight Spaces


1. Brief Introduction

Ceramic band heater is an industrial heating device designed to wrap around cylindrical objects, such as pipes, barrels, or tubes, in order to provide controlled and efficient heating. These heaters are commonly used in various industrial applications where heating of cylindrical surfaces is required, such as plastic processing, packaging, extrusion, and molding.

Ceramic band heaters are designed with spirally wound inner resistance coils evenly threaded through interlocking insulated ceramic “tiles”. The ceramic core, or “mat” of tiles is housed beneath a stainless-steel sheet with serrated edges. The notched edges fold over to secure the ends and a protective inner liner (to be removed at installation) secures the placement of the tiles.

This combined assembly of the Ceramic Band Heater offers a flexible heating system that yields efficient transmission of conduction and radiated heat. The heat of the Ceramic Band originates from the inner coils that conduct heat at maximum temperatures. The heated coils evenly deliver heat through the ceramic tiles which radiate energy to the barrel.

We offer a variety of Ceramic Band styles from standard to custom configurations. When selecting a ceramic heater, select a heater that best matches the wattage requirements – to decrease the frequency of cycling and temperature overshooting, and thereby increase the life of the heater. When installing a ceramic band heater to replace a non-insulated heater, decrease the total operating wattage by approx. 15-30 percent.

2. Features

Built in insulation minimizes unwanted change in temperature along the barrel
Efficient heat transfer: Heat transfers through radiation, conduction, and convection, so a perfect fit is not required compared to other band heaters
Heat transfers are not affected by irregular surfaces or a loose fit
Because they operate at higher watt densities, they can be used in wider increments
The number of bands used can be reduced with simplified wiring
The heater is safer with the cooler external surface – over other band heaters
The flexible design allows easy install and removal

3. Specifications

4. Application

Injection molding machines
Plastic extruders
Blow molding machines
Heating die-heads
Wire processing machines
Research and development
Autoclaves
Heat treating
