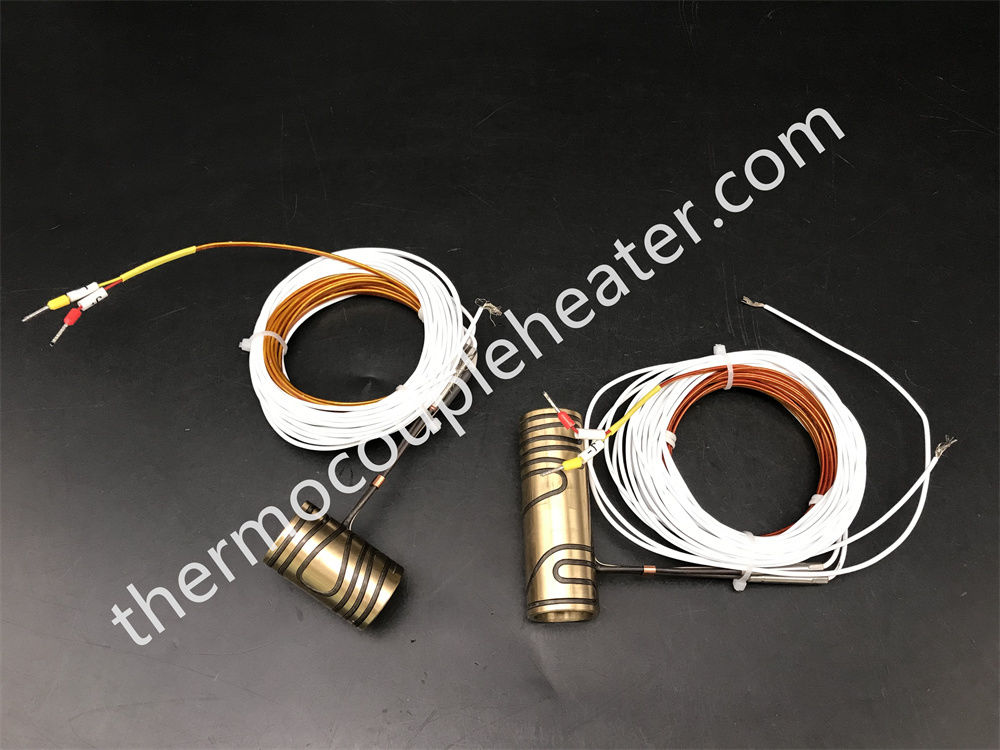

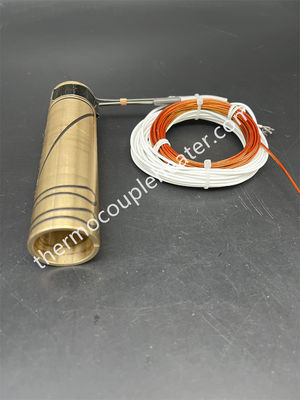

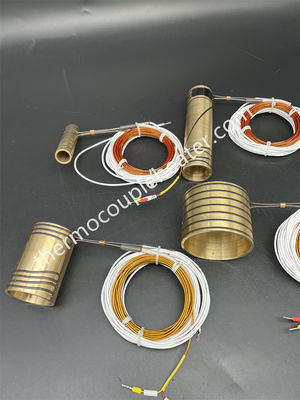

Plastic Injection Molding Nozzles Coil Brass Heater

Large Image : Plastic Injection Molding Nozzles Coil Brass Heater

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Dimension:	Customized
Voltage:	110-240V / 50-60Hz	Warranty:	One Year
Power:	195W-690W	Style:	Straight Or Coil
Heating Wire Material::	Cr20Ni80	Coiling Scheme:	Tangential, Radial Exits, Axial
Material:	Brass Or Stainless Steel	Color:	Copper
Application:	Widely Used	Height:	10mm~200mm
Highlight:	Coil Brass Heater Injection Molding , Injection Molding Nozzles Coil Brass Heater , Molding Nozzles Coil Brass Heater

Hot Runner Heating Element Electric Brass Pipe Heater Nozzle Coil Heater

Description:

Coil spring heater Electric Brass Nozzle Band Heater are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

Specification:

1. Flexible cold section
2. Higher watt density than a cable heater
3. Resistance wire centered for more repeatable heat profile
4. Sealed transition head for moisture resistant applications available

Product Paramenters

Item name	electric hot runner coil heater
Resistance heating wire	Ni-Cr or FeCr
Sheath	stainless steel 304,321,316, Incoloy 800, Incoloy 840, Ti
Insulation	High-purity Mgo
Maximum temperature	700 degree Celsius
Die Electrical Strength	800V A/C
Insulation	> 5 M W
Wattage Tolerance	+5%, -10%
Thermocouple	K type or J type
Lead wire	300mm length; Different type of wire (PTFE/silicone high temperature frberglass) is available

Plastic Injection Molding Nozzles Coil Brass Heater 0

Application:

Injection molding machine nozzle

Hot Runner Nozzles & Bushings

Packaging machinery

Hot runner Injection Molds
Injection & Blow Moulding Machine Nozzles

PET preform & Thin wall container Moulds

Hot runner Manifolds

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
