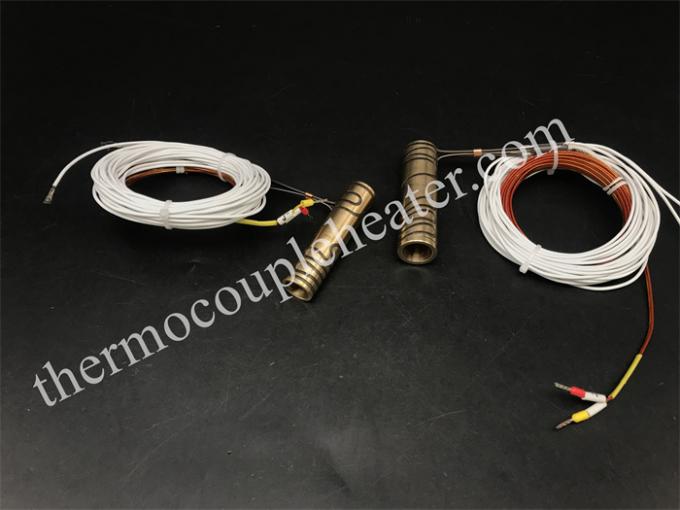

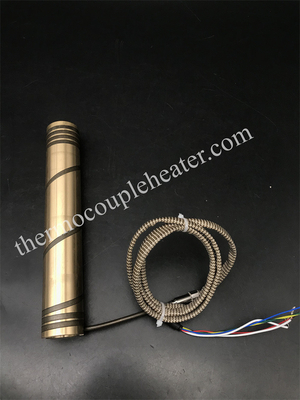

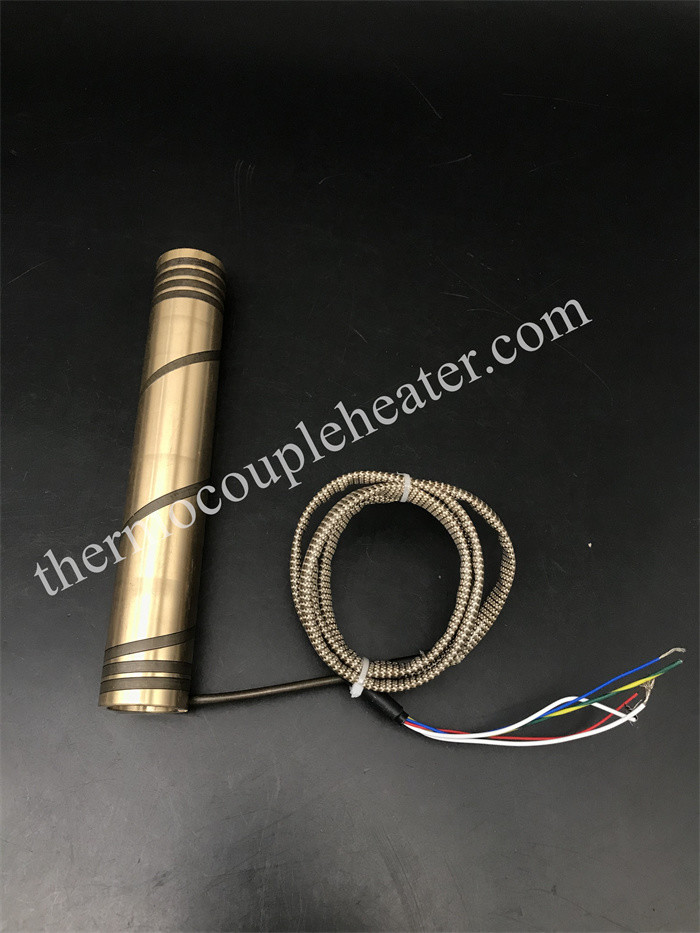

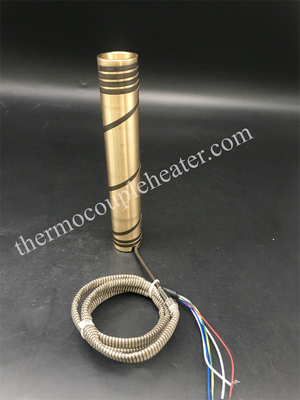

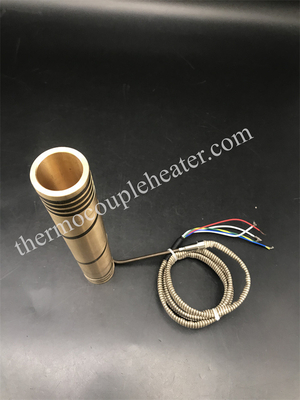

Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds

Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds
Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds

Large Image :  Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Plastic Injection Molds Brass Coil Heater

,

Brass Coil Heater

,

Hot Runner Brass Coil Heater

Hot Runner Brass Coil Heater For Hot Runner System and plastic injection molds

Description:

Coil heater is made of SS304 sheath ,nickel chrome resistance wire, and high insulation material . It has different models , like
round section ,squre section and rectangle section . Thermocouple options are type J, type k and type E . Spring coil heater is
widely used in hot runner plastic mold , blow machine , extrude machine and nozzle







Specification:



Section Area (Square)
3X3mm;3.3X3.3mm;3.5X3.5mm;4X4mm
Section Area (Rectangular)
4X2mm;4X2.2mm;4X2.5mm
Section Area (Round Dia)
1.5mm;2mm;3mm;4mm
Internal diameter
10-50mm
Length
30-280mm
Max temperature
650C
Max wattage density
9W/cm2
Voltage
36v,110v,220v,230v,380v etc
Wattage
200W～2000W
Built-in thermocouple
Type K, J E


 Hot Runner Brass Coil Heater For Hot Runner System And Plastic Injection Molds 0
Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds



Tag:

electric resistance heater,

Electric Coil Heaters,

coil heater with thermocouple
