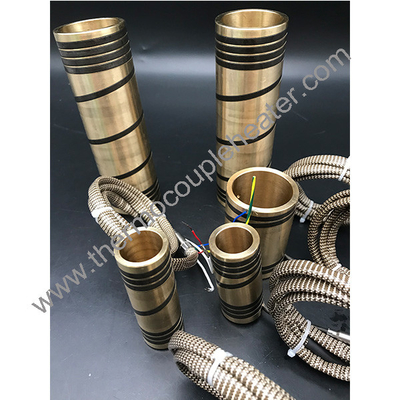

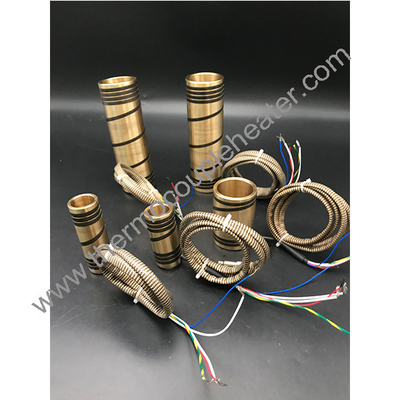

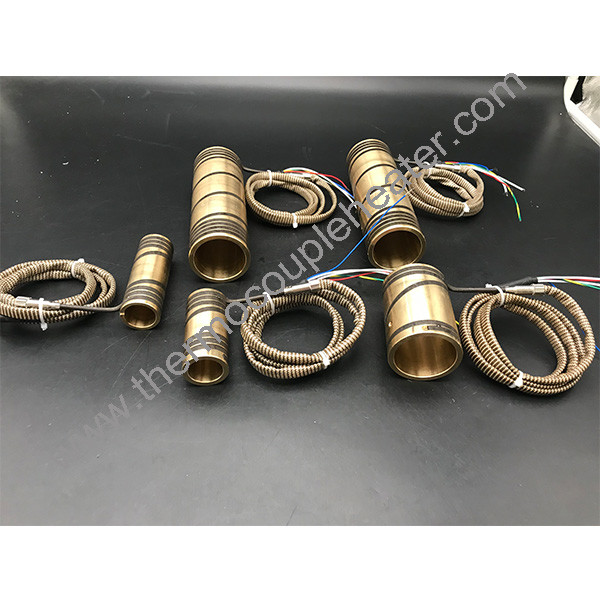

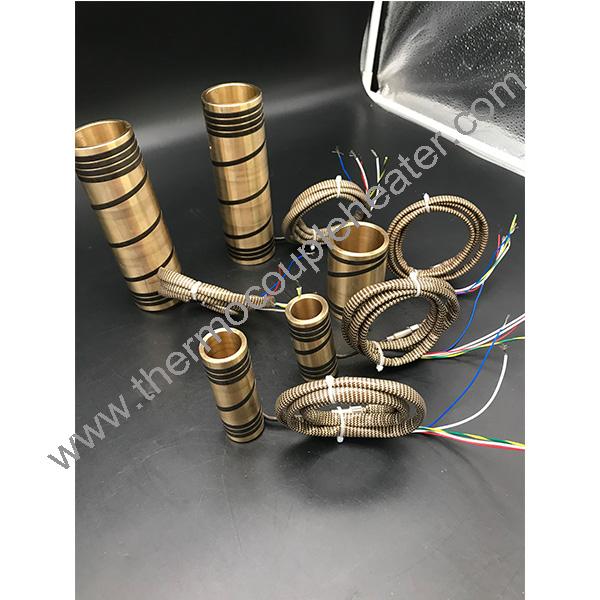

Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater

Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater
Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater

Large Image :  Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Injection Molding Machine Coil Heaters

,

Mini Coil Heaters

Hot Runner Mini Heater with Thermocouple, Mini Coil Heaters for Injection Molding Machine, Mini-Press in Brass Coil Heater

Description:

Coil heater is made of SS304 sheath ,nickel chrome resistance wire, and high insulation material . It has different models , like
round section ,squre section and rectangle section . Thermocouple options are type J, type k and type E . Spring coil heater is
widely used in hot runner plastic mold , blow machine , extrude machine and nozzle







Specification:



Section Area (Square)
3X3mm;3.3X3.3mm;3.5X3.5mm;4X4mm
Section Area (Rectangular)
4X2mm;4X2.2mm;4X2.5mm
Section Area (Round Dia)
1.5mm;2mm;3mm;4mm
Internal diameter
10-50mm
Length
30-280mm
Max temperature
650C
Max wattage density
9W/cm2
Voltage
36v,110v,220v,230v,380v etc
Wattage
200W～2000W
Built-in thermocouple
Type K, J E


 Hot Runner Mini Heater With Thermocouple Mini Coil Heaters For Injection Molding Machine Mini-Press In Brass Coil Heater 0
Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds



Tag:

electric resistance heater,

Electric Coil Heaters,

coil heater with thermocouple
