| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Packaging Details: | Standard exporting package |
| Delivery Time: | 5-10 days |
| Payment Terms: | L/C, Western Union, T/T, Paypal |
| Supply Ability: | 20,000 pcs per month |
| Resistance Wire: | Ni Cr 80-20 | Insulation Material: | MgO |
|---|---|---|---|
| Cover Material: | Stainless Steel | Heating Wire: | Φ1.8mm |
| Unheated Length: | 40+/-5mm | Thermocouple: | Available |
| Lead Wire Sheath: | Fiber Glass Or Steel Mesh, Customized | Application: | Hot Runner Nozzle |
| Highlight: | Coil Heaters with SS Cover,Micro Tubular Coil Heaters,Externally Mounted Thermocouple Coil Heaters |
||

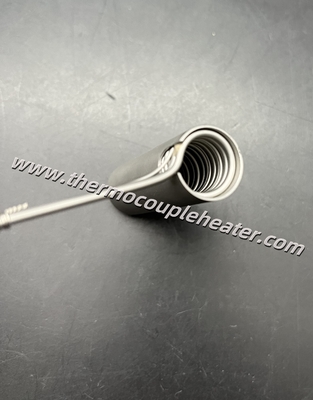

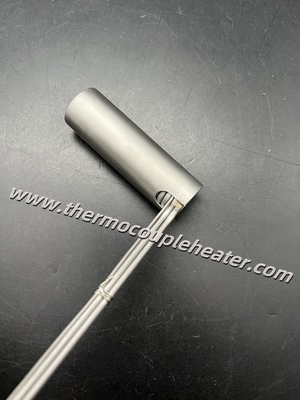

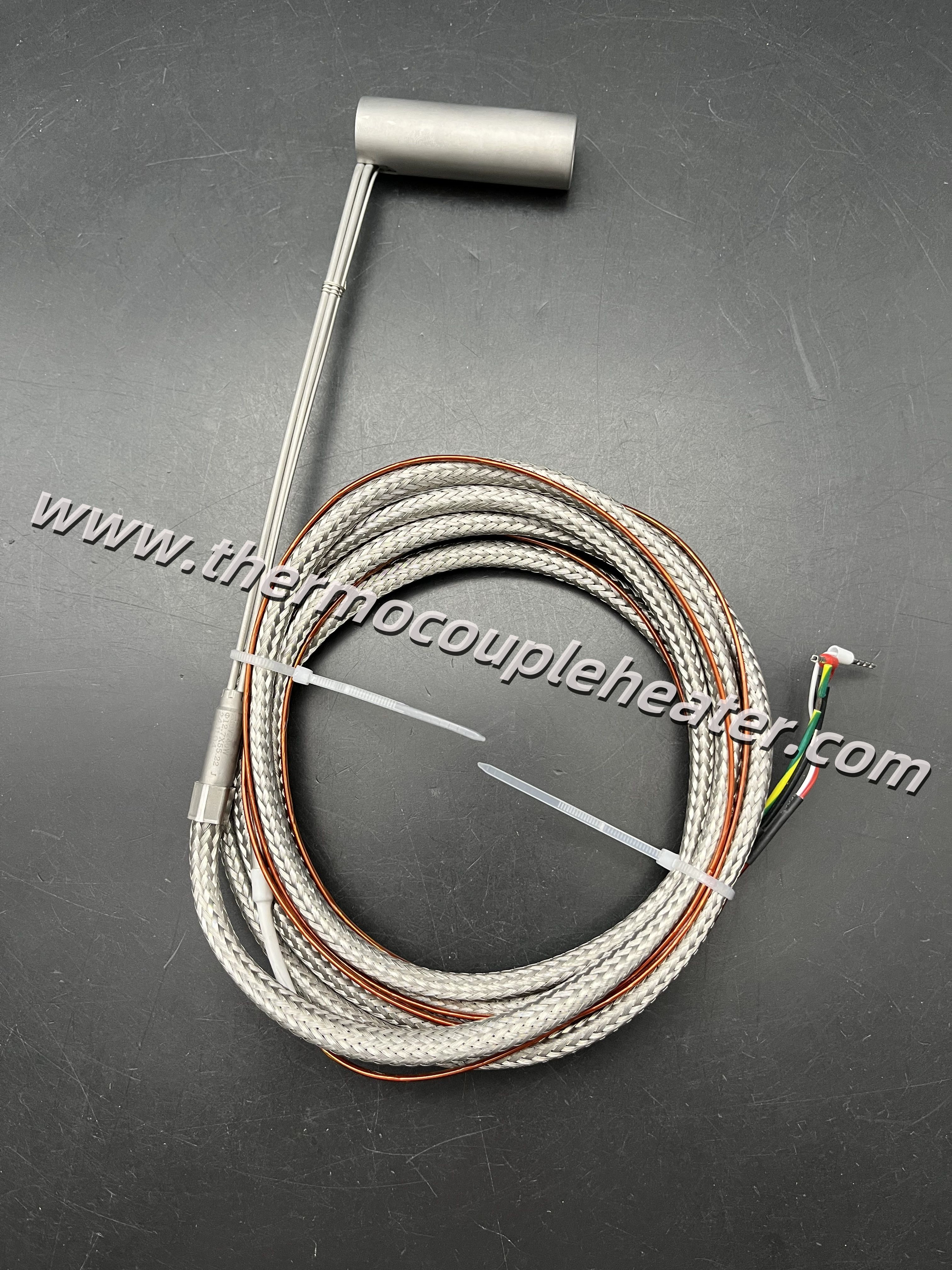

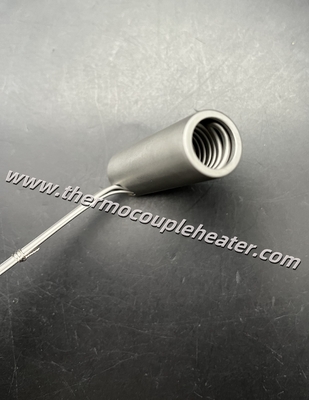

Micro Tubular Coil Heaters With SS Cover And Externally Mounted Thermocouple
Description
The 1.8mm diameter Micro Tubular Heater is formed into a coil of predefined dimension and equipped with a special cover for easy fittment. This special cover called Axial clamp allows front end loading and adjustability. Such easy handling saves hours of downtime in case of heater failure in a Multi - Cavity mold. These heaters are offered with staggered.
Resistances microtubule or Coiler type are small diameter resistance, but of high calorific value for electrical heating is needed in very small spaces and small. The heater wire is of the highest quality market with a thin outer layer and covered by a sheath of stainless steel, prepared for a process of compaction is achieved with longer life and become very hot.
Resistance can take shape as required, thus conforming to the basic needs of each client. Solid surfaces can be heated well be straight (blade or folding), in a helical (pipes, injection nozzles) or other geometric shapes as needed.
Also compared to other companies, we can manufacture resistors as for our customers according to their technical indications and quantities you require from a single unit until they are required.
