Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Model Number: | PT100 |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs |
| Type: | PT100 | Temperature Range: | -50℃ ~ 500℃ |
|---|---|---|---|
| Material: | Stainless Steel SS316 | Accuracy: | Class A |
| Wiring: | 4-wiring | Lead Cable: | Silicone Insulation |

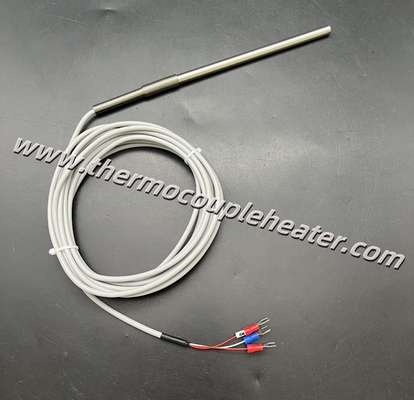

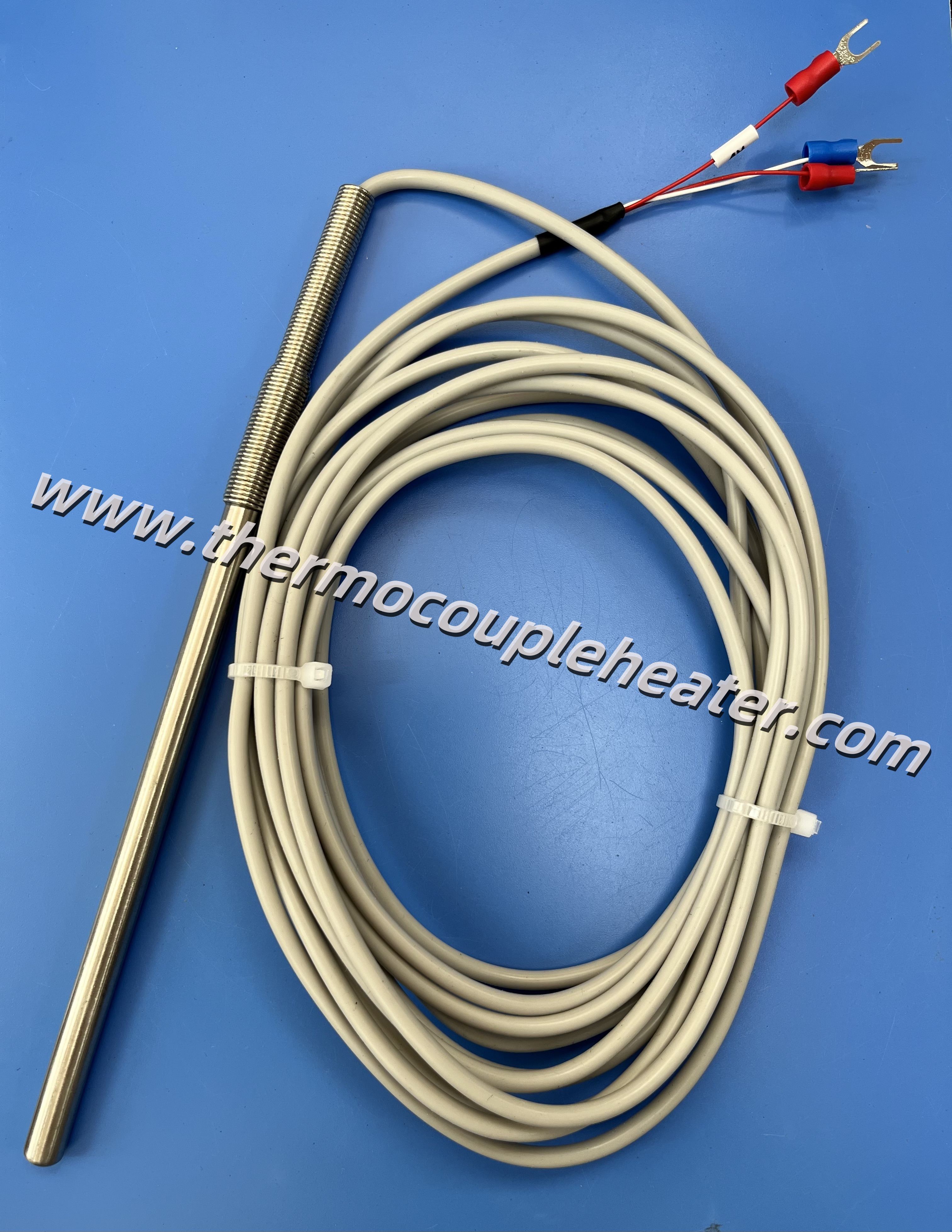

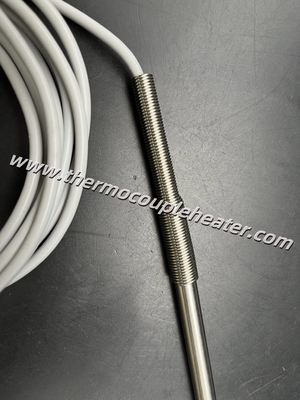

RTD Temperature Sensor PT100 Probe SS316 sheath With Silicone Cable
- What is an RTD?
An RTD is a type of temperature sensor based on the correlation between metals and temperature. As the temperature of a metal increases so does its resistance to the flow of electricity. This resistance can be measured and converted to a temperature reading. In a Pt100 RTD, the ’Pt’ stands for platinum (platinum wire or film) and ’100’ means that the temperature sensor has a resistance of 100 Ohms at 0°C. Platinum is the most reliable metal due to its linear resistance to temperature relationship over a large temperature range.
- What is a Pt100 Probe?
A Pt100 probe is the most rugged form of RTD. The Pt100 temperature sensor element is mounted inside a metal sheath or probe. This protects it from being damaged by the surrounding environment when it is inserted into the process to be measured. The other end of the probe is terminated by 2 insulated wire tails which are connected to the temperature measuring equipment.
- Features and Benefits
• High stability sensing element with a precision output
• IEC 60751 Class A accuracy/tolerance
• Temperature measurement range of -50 to +500°C
• Rigid corrosion resistant stainless steel sheath for protection of sensing element
• Silicone rubber lead insulation can withstand a wide temperature range and offers flexibility, resistance to oils and solvents and good weathering properties.
- Applications
These PRT sensor probes with their robust design are ideal for use in many general purpose industrial applications including the following:
• Air conditioning and refrigeration
• Chemical industry
• Plastics processing
• Stoves and grills
• Air, gas and liquid temperature measurement
• Exhaust gas temperature measurement
• Food processing
• Laboratories
*Since 1995 we have been designing and manufacturing custom resistance temperature detector (RTD) assemblies in a wide variety of designs. We are solely focused on the manufacture of temperature sensors and have the ability to supply large volumes of bespoke Pt100 / Pt500 / Pt1000 sensors for one off or repeating contracts.
