| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
Description:
K J Type Screw Thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.

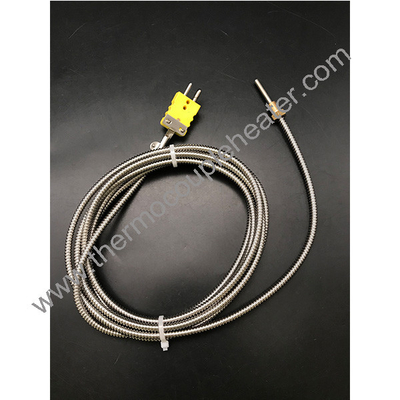

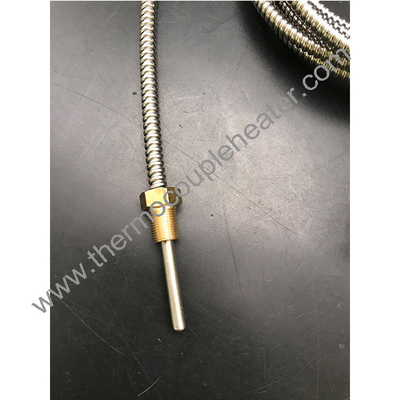

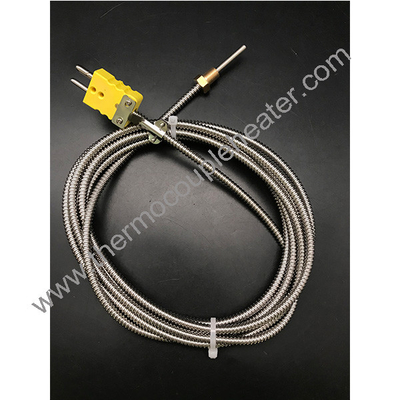

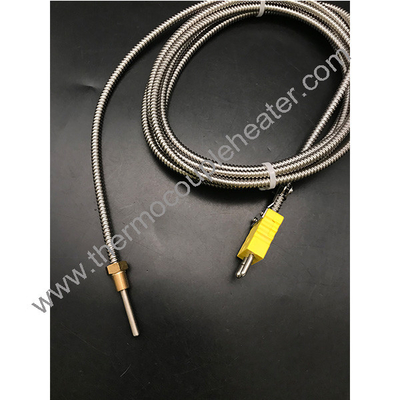

Thread M6 Screw Probe Temperature Sensor Thermocouple K Type Cable 2m Oven Temperature Sensor is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.
Specification:
Bayonet thermocouple, card set contains single-port and double-port two kinds.
Type: JKETPT100CU50
Hydrothermal Reaction Time: <10s
Measurement Range: -200-400º C
Application: It is used to the industrial temperature measurement of analytical instrument.
Various outer diameter and length is available.
| thread | Stander size M12*1.5 |
| Customized thread size | M8*1/M8*1.25/M10*1/M10*1.25/M12*1M/M12*1.25 |
| Tube diameter | 5mm(Stander) 3mm/4mm or customized |
| Tube length | 30mm or customized |
| Wire diameter | 2*0.4mm |
| K type | 0-800 ℃ |
| E type | 0-400 ℃ |
| J type | -45-300℃ |
| Pt100 |
-45+300 ℃ |
