Mineral Insulated Thermocouple Type T Duplex 2-Core 4-Wire With Nipple

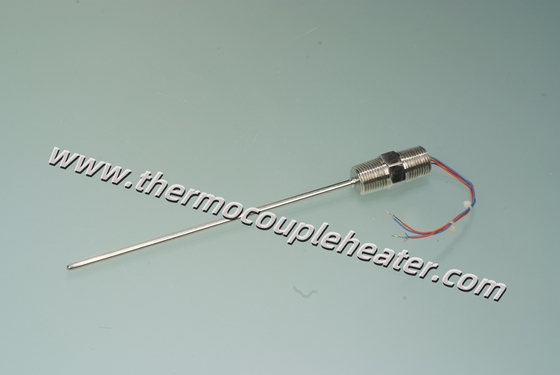

Large Image : Mineral Insulated Thermocouple Type T Duplex 2-Core 4-Wire With Nipple

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	K/J

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Standard Exporting Cases
Delivery Time:	5-10 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

Detailed Product Description

Sheath Material:	Stainless Steel SS304	Calibration:	K / J / N / T / E, Or Customized
Lead Wire Material:	SS Mesh / Fiberglass / PTFE / Kapton,customized	Temperature Range:	-30~+400℃
Probe Diameter:	0.5-10mm
Highlight:	Duplex Mineral Insulated Thermocouple , 4-Wire Mineral Insulated Thermocouple , Mineral Insulated Thermocouple

Mineral Insulated Thermocouple Type T Duplex 2-Core 4-Wire With Nipple

Product Description:

Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.

Specification:

Probe Outside Diameter	0.5mm ~ 10mm
Calibration	Standard limits of error (Type K,J,T,E,N) Special limits or error (Type K,J,T,E,N)
Sheath Material	304 Stainless Steel 316 Stainless Steel Inconel 600
Junction	Ungrounded , Grounded
Cable Insulation Description	24 Gage, Stranded , Kapton 24 Gage, Solid, Kapton 24 Gage, Stranded, 24 Gage,Solid, 24 Gage,Stranded, Fiberglass 24 Gage, Solid ,Fiberglass
Termination type	50mm split leads and 15mm Bare Ends. 50mm split leads and spade lugs. Standard Male Plug (425F) Standard Female Jack(425F) Mini Male Plug(425F) Mini Female Jack(425F) Hi Temp Male Plug(800F) Hi Temp Female Jack(800F)

Feature:

1. Reed thermal components, good seismic performance;

2. Simple assembly and easy to change;

3. Large measuring range (200 °C ~ 1300 °C, 270 °C ~ 2800 °C under special circumstances ).

4. Fast heat response time;

5. High temperature can reach 2800 degrees;

6. High precision measurement;

7. High mechanical strength and good compression performance;

8. Long service life.

Application:

The Hot Runner Thermocouple has been designed to be used in below area,

1.Hot Runner bushings, drops and nozzles
2. Moulds used in injection molding machines
3. For direct installation in the process

4. Hot Runner manifolds .
5. Plastics and rubber industry

Tag:

Contact Person: Mr. Frank

Tel: 15058960276

Fax: 86-27-86653728
