OVERVIEW
GME tubular elements are the most versatile and best suited solutions to a large number of applications. This is why they are found in major modern heating applications and are known for their superior qualities.
KEY FEATURES AND BENEFITS
• Standard diameters: 6mm, 8mm, 10mm, 12mm, 15mm
• Available in a broad variety of sheaths, diameters and ratings
• Supplied with electrically isolated sheath
• Provide superior internal electrical insulation and heat conduction
• Easy to install
• Configurable to virtually any shape
• Compact
• Precise and easy control of heat output
• Durable
• Easy to maintain
SELECTING
Depending on their rating, sheath and shape, GME tubular elements are used in a variety of heat applications (conduction, convection, radiation heating) that require process temperatures of up to 750°C (1 382°F) to heat liquids, gases and solids.
Please consider the following factors to select the ideal GME tubular heater for your application:
• Heating element watt density

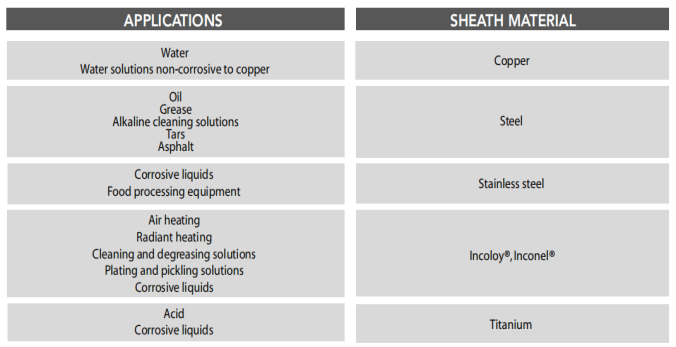

• Sheath material (corrosive or non corrosive)
• Temperature of the corrodent
• Degree of aeration of the corrodent
• Velocity of the corrodent
• Ambient temperature

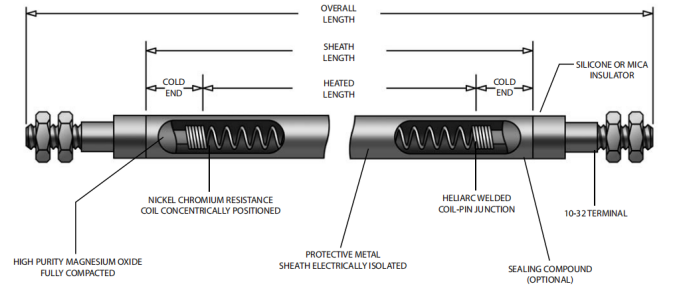

CONSTRUCTION
When ordering, please specify the following:
• Quantity
• Voltage
• Wattage
• Cold end length
• Terminal type
• Operating temperature and controls
• Sheath type
