Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 120v 220v 240v 380v, 220V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm | Style: | Straight Or Coil |
| Lead Wire: | , Fiberglass , Metal Mesh | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Material: | Brass And Stainless Steel | Application: | Manifolds, Hot Runner/ Injection |
| Surface Finishing: | Bright Or Soft Annealed | Insulation Resistance: | > 5 MΩ |
| Highlight: | Stainless Steel Cover Coil Heater,Electric Coil Heater,J/K Type Thermocouple Coil Heater |
||

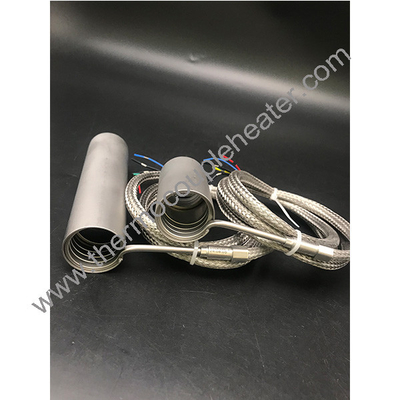

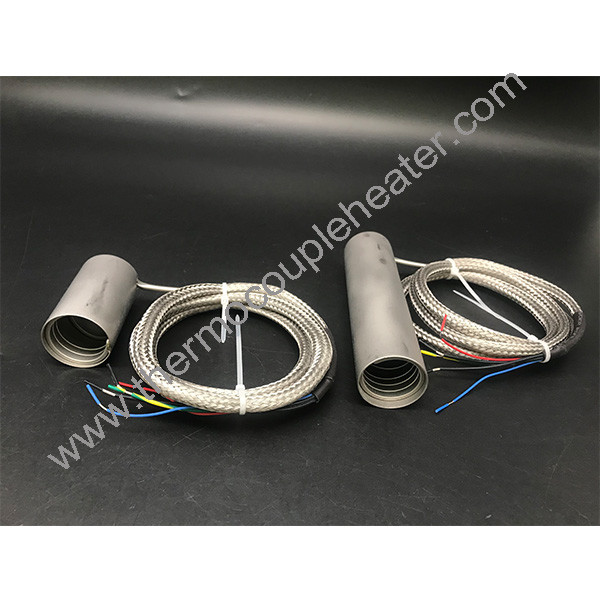

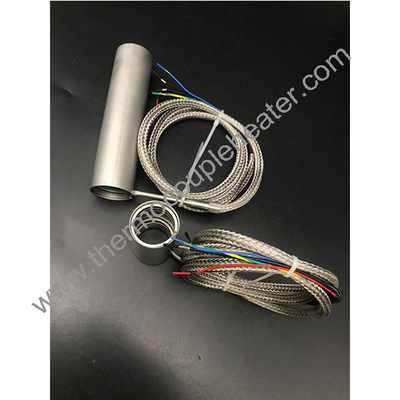

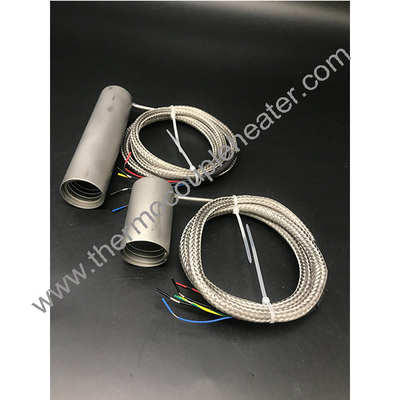

Hot Runner Enclosed hot runner coil electric heater with stainless steel cover With J/K Type Thermocouple
Description:
1) Length of Hot runner heater within 20-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology .
2) The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.
Specification:
Technical Specifications
1. Maximum Sheath Temperature: 700°C
2. Voltage: 12V~380V
3. Wattage: 70W~1000W
4. Sectional area: 3X3,4.2X2.2,4X2,4X2.7,4X2.5 3.3 X 3.3 3.5 X 3.5 4 X 4,2.2X1.3
5. Available sheath: nylon,metal braided,fiberglass ,silicone rubber, kevlar
|
Sheath Material
|
Cr Ni-Steel
|
|
Insulation Material
|
MgO
|
|
Resistance Wire
|
Ni Cr 80-20
|
|
Maximum Sheath Temperature
|
700°C
|
|
Die Electrical Strength
|
800V A/C
|
|
Insulation
|
>5 M W
|
|
Thermocouple
|
J type (Standard) or K type
|
|
Length Tolerance (Straight)
|
5%
|
|
Wattage Tolerance
|
+/- 10% (+/- 5% Available Upon Request)
|
|
Resistance Tolerance
|
+/- 10% (+/- 5% Available Upon Request)
|
|
Unheated Length
|
35mm (Standard)
|
|
Dimensional Tolerance
|
Coil I.D +/- 0.1 to 0.2mm Coil Length +/- 1mm
|
Production Flow:
1.Hot Runner & Bushings
2.Tube Extrusion
3.Pipe Forming
4.Hot Runner Mould
5.Plastic Injection Machine
6.Plastic Extruder Machine
