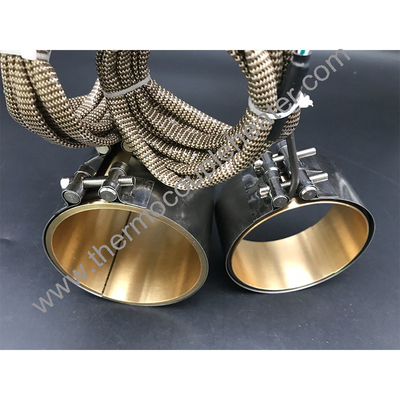

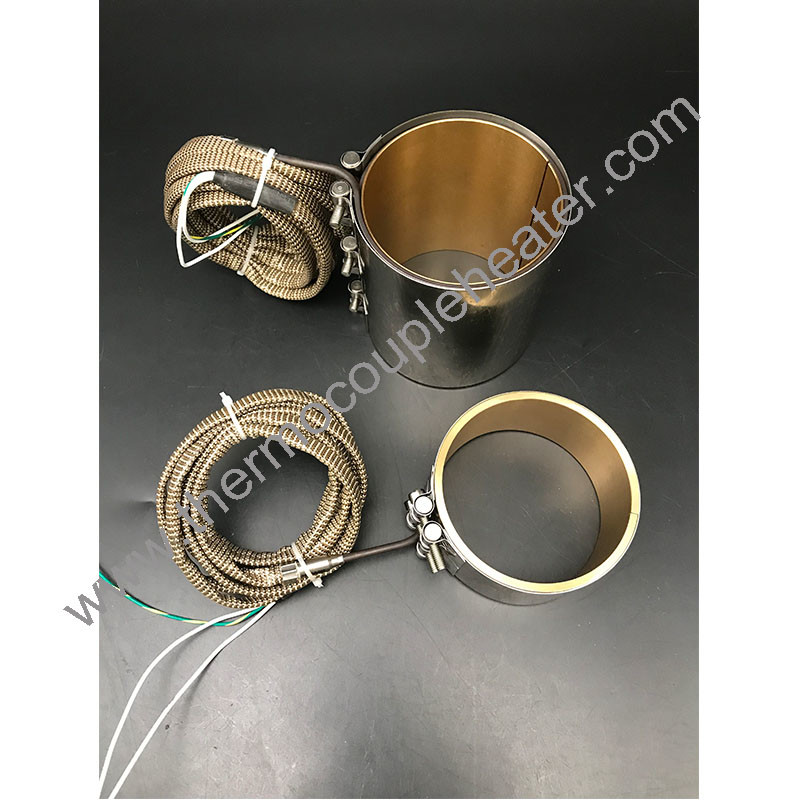

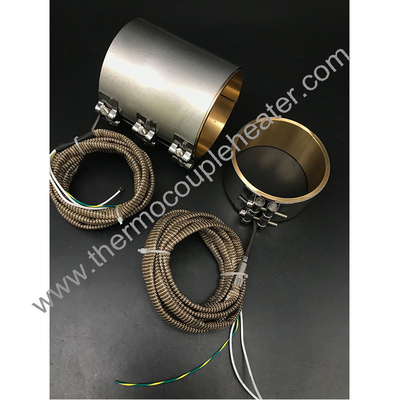

Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp

Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp
Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp

Large Image :  Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 110-240V / 50-60Hz Warranty: One Year
Power: 195W-690W Style: Straight Or Coil
Heating Wire Material:: Cr20Ni80 Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass Or Stainless Steel Color: Copper
Application: Widely Used Height: 10mm~200mm
Highlight:

Clamp Coil Heater

,

Inner Brass Coil Heater

,

Outer Stainless Steel Jacket Coil Heater

inner brass outer stainless steel jacket nozzle spring coil heater with clamp

Description:

Hot runner heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.







Specification:



Product Name
Pressed in Brass Coil Heater
Voltage
12V-480V(customized)
Range of Working Voltage
12V - 440V
Power Range
5W to 2500W
Sheath Material
304SS or 316L
Maximum Sheath Temperature
500℃
Inner Heating Element
NiCr8020
Insulation
High pure Mgo
Tube Color
Sliver or annealed black
I.D Available
16mm -150mm
Heater Height Range
30mm - 300mm
ID Tolerance
+0.03-0.05; -0.00
Coil Style Length
40-200mm (+ 0.5mm)
Lead and Sleeve
PTFE,Fiberglass,Kevlar etc
Built-in Thermocouple
With or without J /K TC(Available)
TC Optional
Type J, K, E and T
TC Tolerance
±10℃
Power Tolerance
+5% and -10%
Power Density
9w/c㎡
Working Life
10,000 hours
Use
Injection molding machine, extruder, medical equipment ect
Certification
CE,ROHS


Application:



1.Injection molding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machinery
4. Hot runner Injection Molds

5. Injection & Blow Moulding Machine Nozzles
6. PET preform & Thin wall container Moulds
7. Hot runner Manifolds

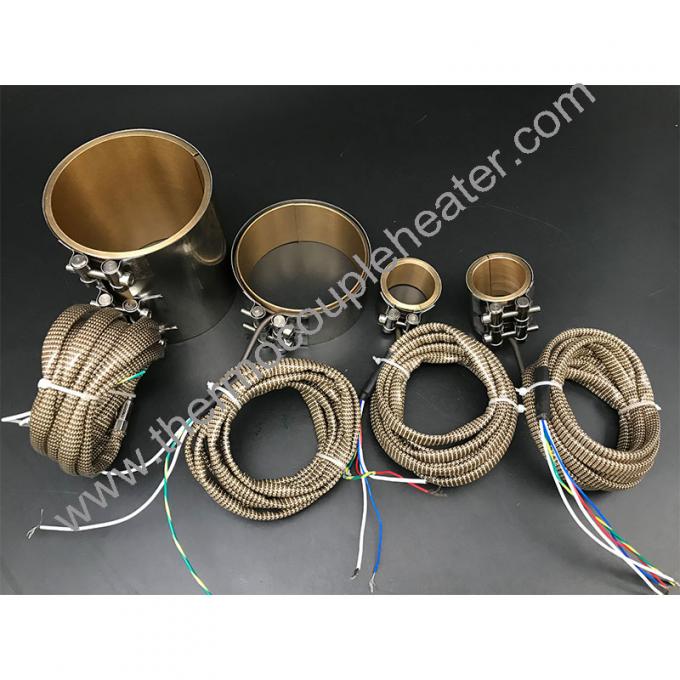

Inner Brass Outer Stainless Steel Jacket Nozzle Spring Coil Heater With Clamp 0
