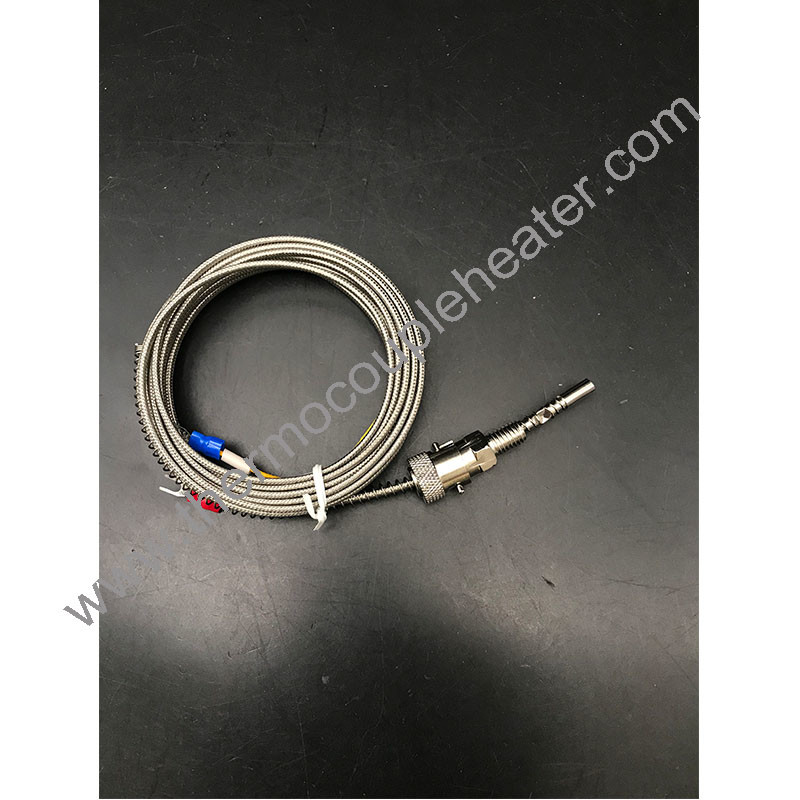

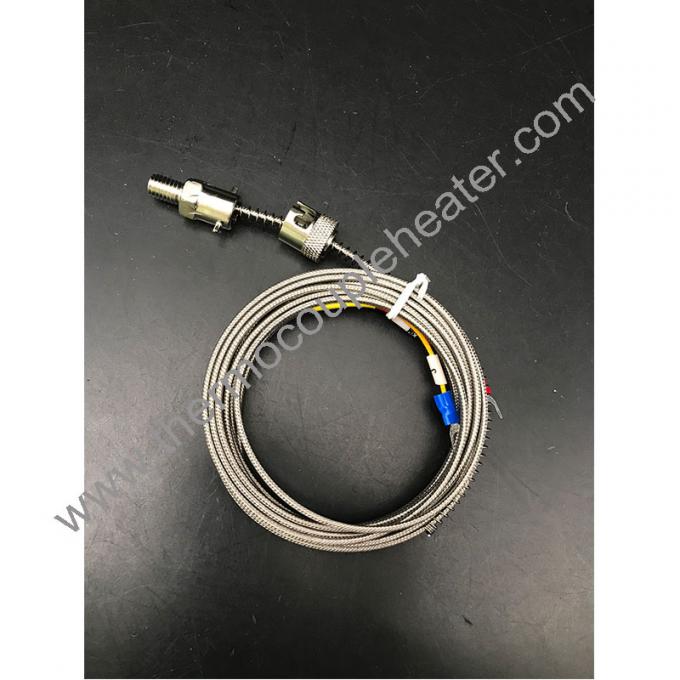

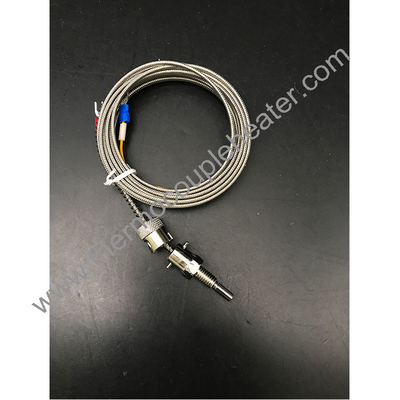

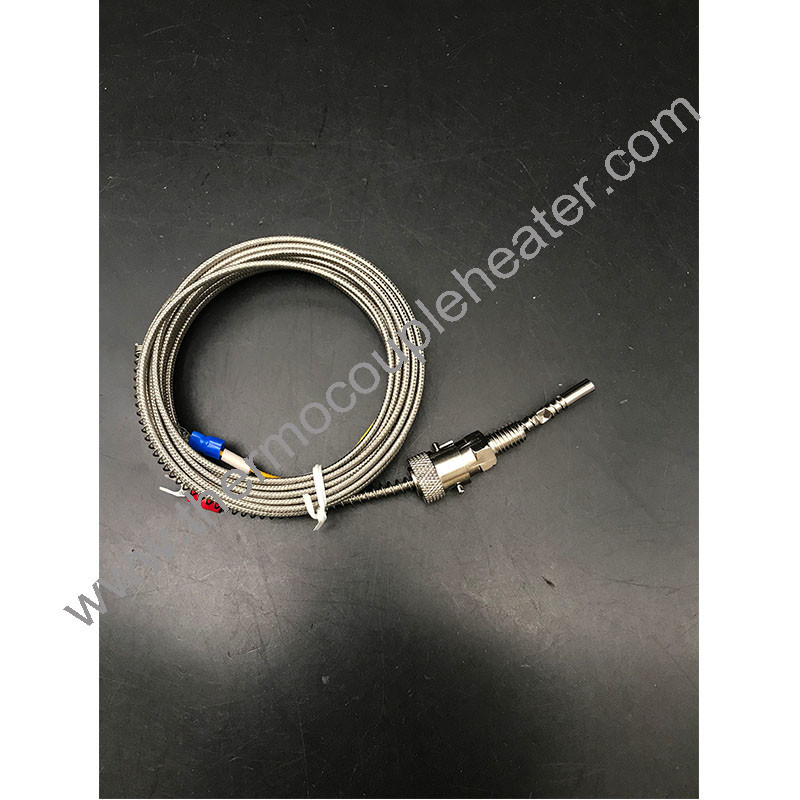

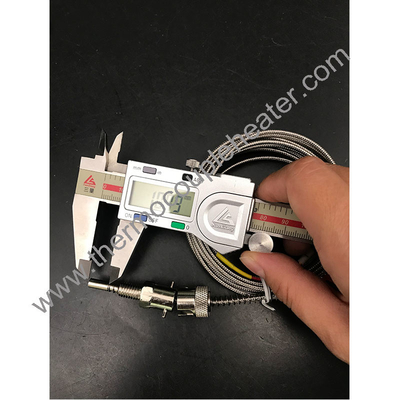

Bayonet Thermocouple Measurement Range: -200-400 Degrees Probes Thermocouple Mineral Insulated

Large Image : Bayonet Thermocouple Measurement Range: -200-400 Degrees Probes Thermocouple Mineral Insulated

Product Details:

Place of Origin:	China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Packaging Details:	cartons， pallet
Delivery Time:	7~10 working days
Payment Terms:	T/T, Western Union, MoneyGram, L/C
Supply Ability:	100000 pcs per Month

Contact Now

Detailed Product Description

Power Source:	Electric	Temperature Range:	-200~650℃
Voltage:	12-480V	Probe Material:	Stainless Steel Or Nickel
Style:	K, J, S	Pairs Quantity Of Element:	Simplex/duplex
Heating Element:	Nichrome Resistance	Mounting:	Thread/flange/none
Function:	Temperature Sensor	Feature:	Economical
Types Of Terminal Box:	Anti-spray/water-proof	Connection:	Thread
Highlight:	mineral insulated Probes thermocouple , mineral insulated Bayonet thermocouple

Bayonet thermocouple Measurement Range: -200-400 degrees Probes thermocouple mineral insulated

Description:

K J Type Screw Thermocouple is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.

Thread M6 Screw Probe Temperature Sensor Thermocouple K Type Cable 2m Oven Temperature Sensor is a sensor that measures temperature. It consists of two different types of metals, joined together at one end. When the junction of the two metals is heated or cooled, a voltage is created that can be correlated back to the temperature. Thermocouple alloys are commonly available as wire.

Specification:

Bayonet thermocouple, card set contains single-port and double-port two kinds.
Type: JKETPT100CU50
Hydrothermal Reaction Time: <10s
Measurement Range: -200-400º C
Application: It is used to the industrial temperature measurement of analytical instrument.
Various outer diameter and length is available.

thread	Stander size M12*1.5
Customized thread size	M81/M81.25/M101/M101.25/M121M/M121.25
Tube diameter	5mm(Stander) 3mm/4mm or customized
Tube length	30mm or customized
Wire diameter	2*0.4mm
K type	0-800 ℃
E type	0-400 ℃
J type	-45-300℃
Pt100	-45+300 ℃

Bayonet Thermocouple Measurement Range: -200-400 Degrees Probes Thermocouple Mineral Insulated 0
