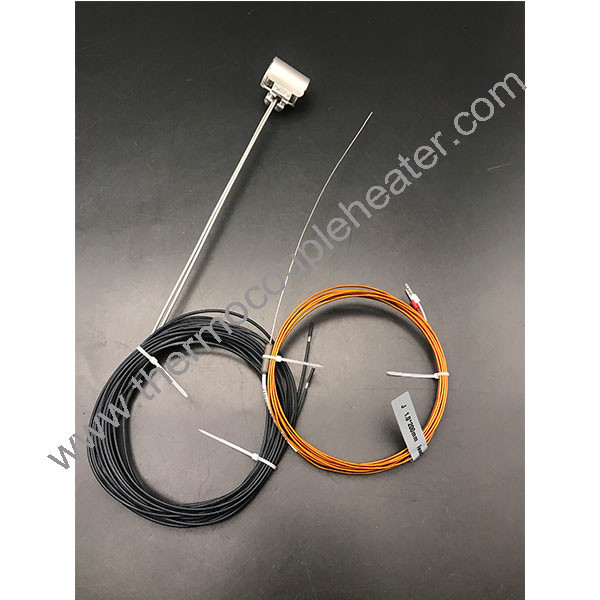

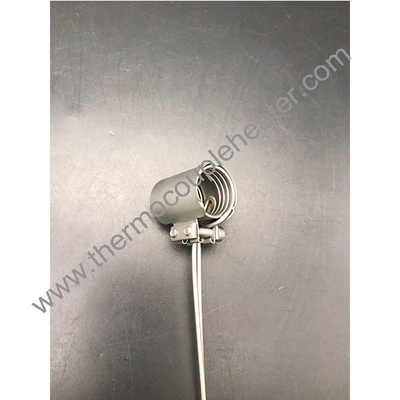

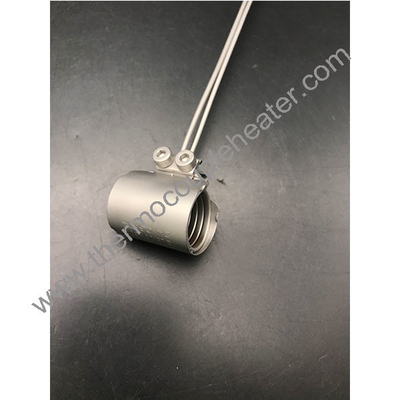

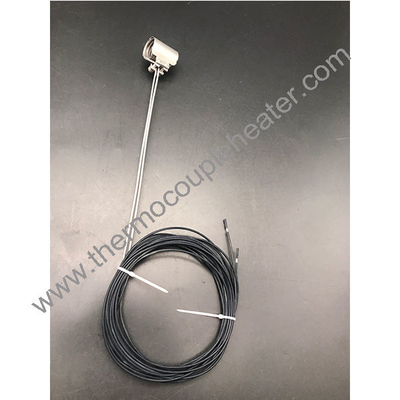

Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple

Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple
Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple

Large Image :  Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple

Product Details:
Place of Origin: China
Brand Name: GME
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: cartons， pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Contact Now
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 120v 220v 240v 380v, 220V Sheath Material: SUS304,SUS316
Cross Section: 3.0x3.0,3.3x3.3mm,4.50 * 4.50 Mm Style: Straight Or Coil
Lead Wire: , Fiberglass , Metal Mesh Coiling Scheme: Tangential, Radial Exits, Axial
Material: Brass And Stainless Steel Application: Manifolds, Hot Runner/ Injection
Surface Finishing: Bright Or Soft Annealed Insulation Resistance: > 5 MΩ
Highlight:

sealed heater coil hot runner

,

J Thermocouple Coil Hot Runner

,

230v coil hot runner



Axial Clamp/Cam Lock Mini coil hot runner 230v plastic extruder nozzle sealed heater with J thermocouple

Description:

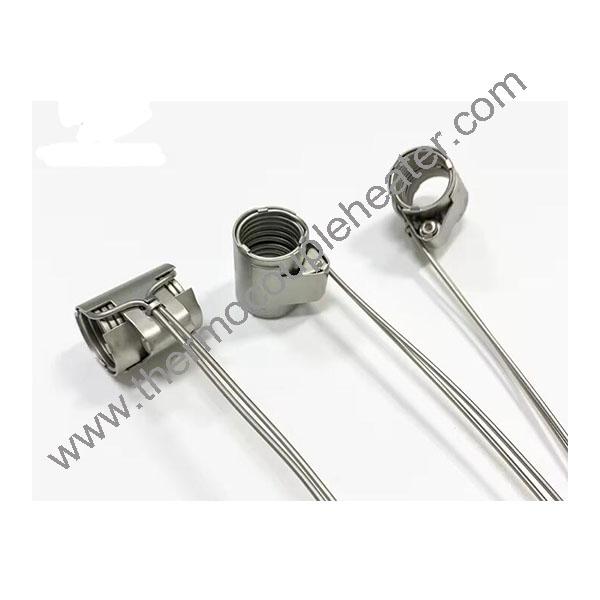

Axial clamp mini coil heaters are a proven performer for high cavitation applications including pre-forms, caps and closures, and razors. axial clamp heaters positively lock on the nozzle ensuring excellent heat transfer and durability. Adjustments can be made with a single front facing allen screw, greatly simplifying tightening and removal.

With flat mini coils in direct contact with the injection molding nozzle GME's axial clamp heaters can be wound with more heater coils closer to the edge. This configuration improves responsiveness and heat profile



Specification:



1.Use condiction:environment temperature:-20~+60C,Relative temperature<95%
2.Leakage current: <0.5MA
3.Insulation resistance: ≥5MO
4.Groud resistance: <0.1O
5.Voltage resistance: no electric breakdown for 1 minute under 1500V
6.Temperature endurance: 100-1200 ℃


Voltage
12~480V
Wattage
100~3000W
Heating Section
2.2*4.2/3*3/3.4*3.4/3.5*3.5/4*4mm
Thermal Proection
Built in type "K" or "J" thermocouple
Operation Temperature
0~700C
Lead Cable
Fiberglass/Feb/Silicone/Stainless steel braided/Armor cable
Dimension Tolerance
Coil ID ± 0.1mm to 0.2mm
Coil Length ± 1mm
Unheated Length
35mm
Thermocouple
K type or J type

Application:

  • 1. Injection moulding machine nozzle
  • 2. Hot Runner Nozzles & Bushings.
  • 3. Packaging machineries
  • 4. Hot runner Injection moulds.
  • 5. Injection & Blow Moulding Machine Nozzles.
  • 6. PET prefrom & Thin wall container Moulds
  • 7. Hot runner Manifolds.

Axial Clamp/ Cam Lock Mini Coil Hot Runner 230v Plastic Extruder Nozzle Sealed Heater With J Thermocouple 0
