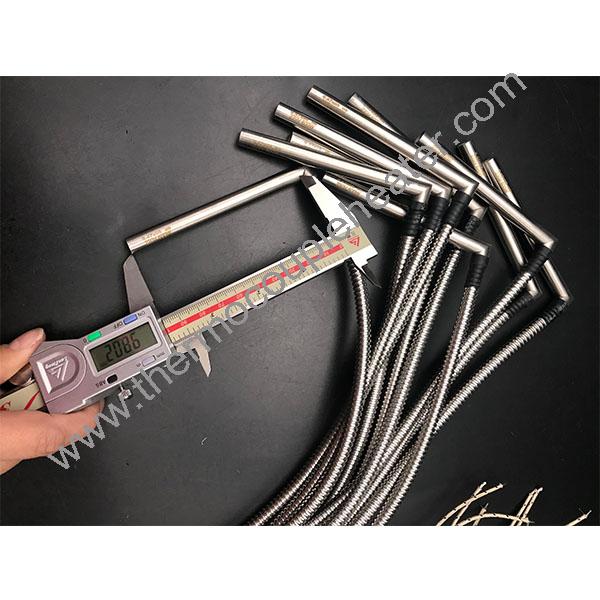

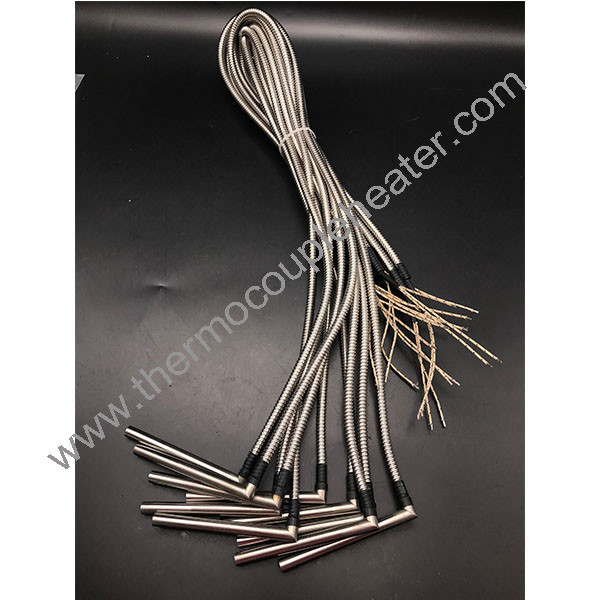

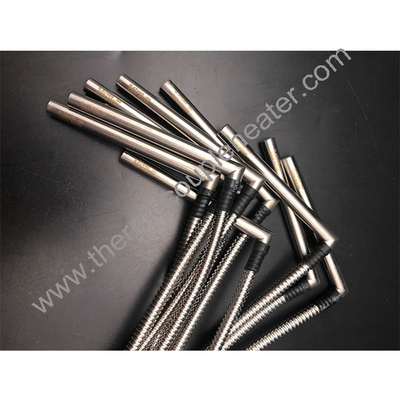

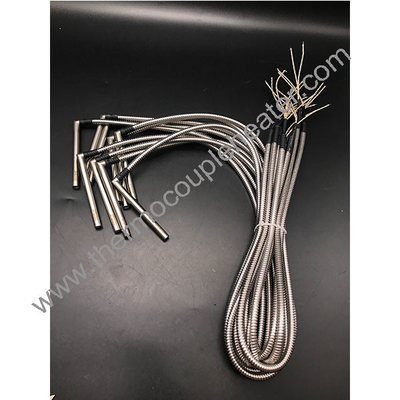

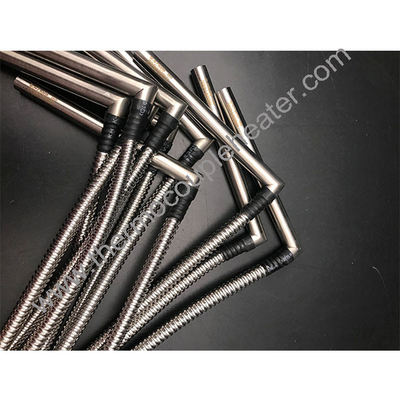

L Shape Electric Cartridge Heater Element with flexible metal tube

L Shape Electric Cartridge Heater Element with flexible metal tube

    • L Shape Electric Cartridge Heater Element with flexible metal tube
    • L Shape Electric Cartridge Heater Element with flexible metal tube
    • L Shape Electric Cartridge Heater Element with flexible metal tube
    • L Shape Electric Cartridge Heater Element with flexible metal tube
  • L Shape Electric Cartridge Heater Element with flexible metal tube

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Boxes or Wooden Cartons
    Delivery Time: 7-15 work days
    Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram, L/C
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Lead Wire: Silicon, Glassfiber Shealth Material: SS304 ,SS321 ,SS316
    Color: Biack And White Wattage Tolerance: +5%, -10%
    Application: Oil, Water Or Other Liquid Etc Power Source: Electric
    Voltage: 12-480v Dimension(L*W*H): Customizable
    Type: Air Heater, Cartidge Heaters Insulation: Mgo Powder
    High Light:

    metal tube Cartridge Heater Element

    ,

    L Shape Electric Cartridge Heater Element

    L Shape Electric Cartridge Heater Element with K Type Thermocouple



    Description:


    Cartridge heater is made of single head, electric heating tube to tube is to protect the shell (including not only the head of the stainless steel electric heating tube, copper pipe, all kinds of imported steel), along the central axis uniform spiral tube of high quality electric thermal bonding wire, nickel chromium wire, iron chromium alloy fever), and then fill the gap part closely with good heat resistance, thermal conductivity and the crystallization of the insulation of magnesia powder, with silicone seal on both ends of the pipe, in the other process.






    Specification:



    A.Nickel chromium resistance wire ensures even, efficient distribution of heat to sheath.


    B.Magnesium oxide insulation of specific grain and purity results in high dielectric strength and faster heat-up.



    C.According to different use requirements,choose the grade of heating wire,magnesium rod and
    pipe.

    D.Do not pull or bend the wire forciby.

    E.The vicinty of the wire should be controlled below 220℃.


    Product Name
    right angle cartridge heater
    Material
    stainless steel
    Color
    nickel white
    Standard
    CE/ISO
    Grade
    SUS201, SUS304, SUS316,
    Power
    electric
    Voltage

    customized

    Used
    air heater,water heater



    Application:



    * 3D Printers
    * Hot runner systems - Heating of manifolds
    * Laboratories - Heating of analytical equipment
    * PCB Equipment, Smokeless barbecue furnace
    * Glass Bending Machine, Hole Punched
    * Injection Molding



    L Shape Electric Cartridge Heater Element with flexible metal tube
