Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element

China Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element supplier
Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element supplier Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element supplier Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element supplier

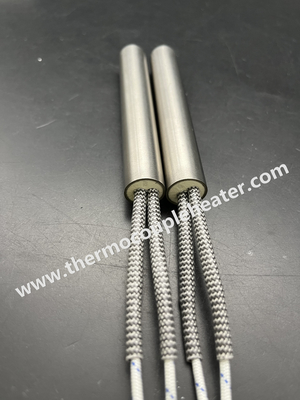

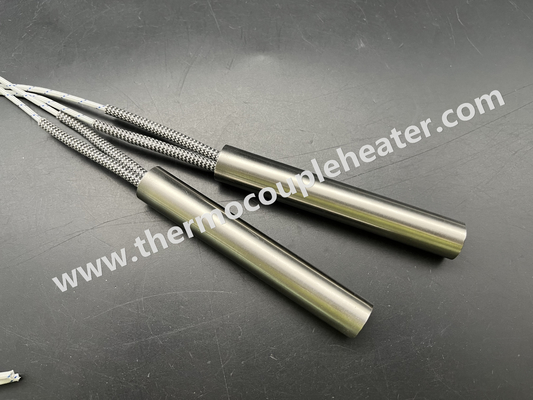

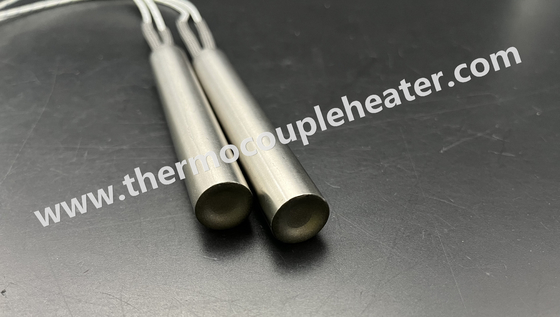

Large Image :  Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element

Product Details:

Place of Origin: China
Brand Name: GME

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Packaging Details: Exported Case Packing
Delivery Time: 7-15 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Sheath Material: Stainless Steel SS310 Resistance Wire: Nichrome 2080
Insulation Material: High Temperature Magnesium Oxide Working Temperature: 750-800℃ Max

Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element



Description:



Cartridge heater is a kind of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens .



Cartridge Heater Withstand 750℃ High Temperature Resistant Heating Element



Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. ​



GME produced cartridge heater sprovide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures.Our experience ensures that the performance and life expectancy of our cartridge heaters supersedes the cartridge heater of other companies.



Feature



1. Available in 1/8” – 1” diameters in stainless steel or Incoloy;
2. Low to high density is available ;
3. Lead wire -nickel (instead of brass ) ;
4. Moistureproof- IP65 ;
5. Ambient temperature is up to 400℃ for the Lead wire insulation material ;
6. Distributed wattage is available ;
7. Split cartridge heaters is available ;



Technical Details



1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
4 Max working temperature 900℃
5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
6 OD range: 3mm-32mm
7 The range of the Total Length: 25mm----2500mm
8 Maximum power density: 60w/cm²
9 Unheated zone: 10mm at lead end and about 5mm at bottom
10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside



Applications:



Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.



• Hot Runner Bushings
• Mold die and platen heating
• Medical & Laboratory Apparatus
• Shoe Making Industry
• Semiconductor chamber heating
• Semiconductor wafer lead connection
• Semiconductor wire and die bonding
• Freeze protection and de-icing of equipment in cold climates or applications
• Humidity control
• Test sample heating in gas chromatography

• Marking & Sealing Machinery
• Seal bars in Packaging Industry
