Thermocouple Type J Diamater 10mm, Leads With Spring Protection

Product Details:

Place of Origin:	China
Brand Name:	GME

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Standard Exporting Cases
Delivery Time:	5-10 working days
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 pcs per month

Contact Now

All Products

Coil Heaters (360)

Thermocouple RTD (316)

Mineral Insulated Thermocouple Cable (35)

Thermocouple Compensating Cable (72)

Cartridge Heaters (157)

Cast Heater (36)

Tubular Heater (100)

High Temperature Cable (31)

Thermocouple Connection Head (60)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (177)

Mica Insulated Band Heaters (36)

Ceramic Heaters (5)

Electric Heater Components (44)

Heater Making Machine (16)

1mm diameter pt100 stainless steel temperature sensor

Type J Probe OD 1.0mm Temperature Sensor Thermocouple

Detailed Product Description

Sheath Material:	Stainless Steel, Or Customized	Calibration:	J, Or Customized
Lead Wire Material:	Fiberglass, Or Customized	Probe Size:	Diameter X Length, Customized
Junction:	Grounded / Insulated	Application:	Temperature Measurement
Highlight:	10mm Thermocouple Type J , 10mm Type J Thermocouple RTD

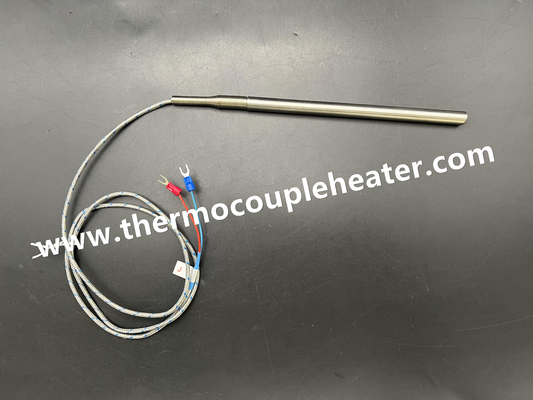

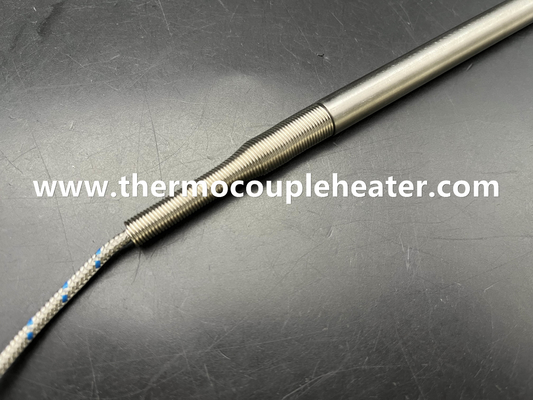

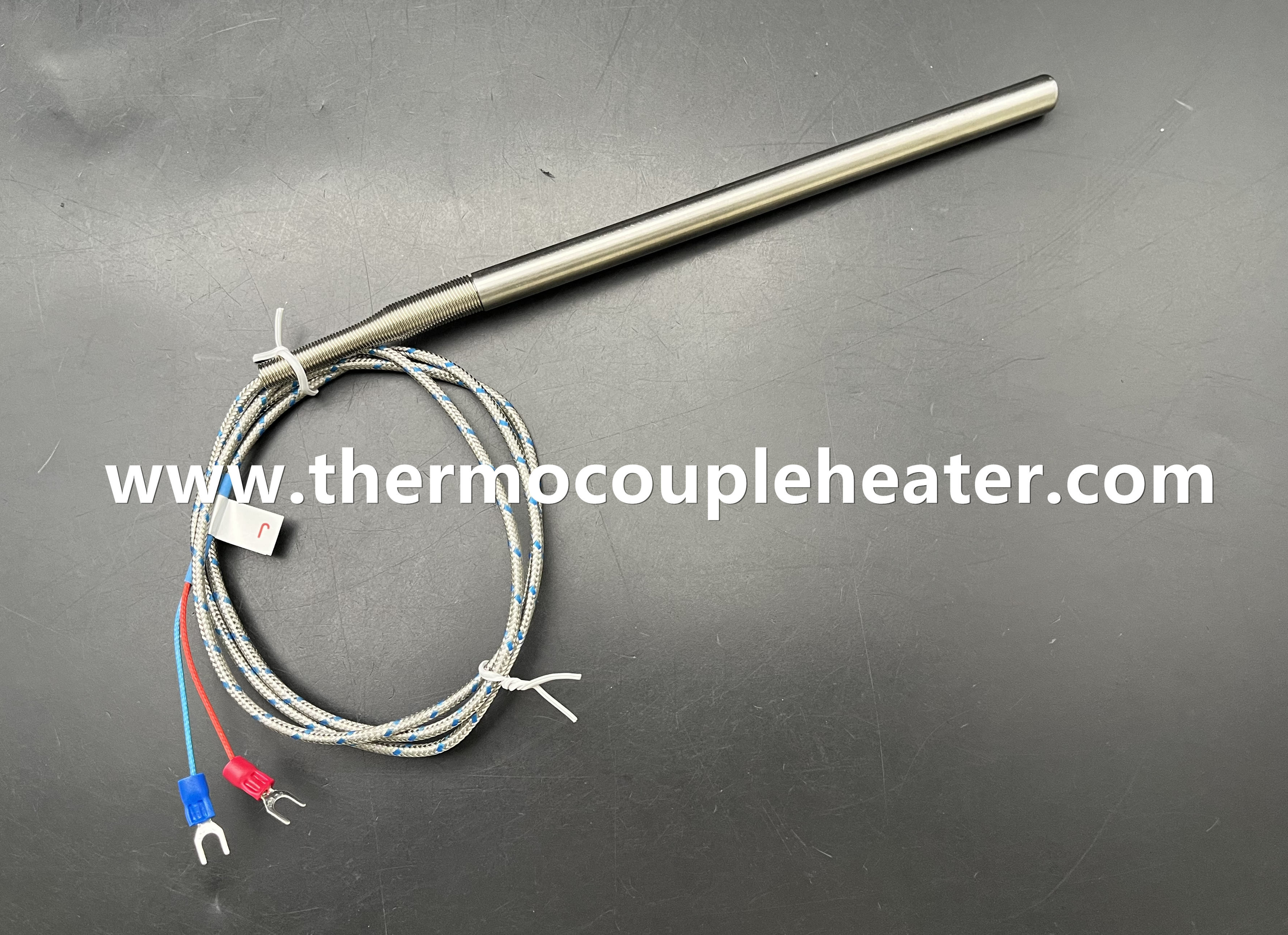

Thermocouple Type J Diamater 10mm, Leads With Spring Protection

Product Description:

Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.

Specification:

Diameter	0.5-20mm, customized
Calibration	K / J
Sheath Material	304 Stainless Steel
Junction	Ungrounded , Grounded
Cable Insulation	SS mesh / Fiberglass / PTFE / Kapton,customized
Cable length	1 M, 2M, 5M...., customized

Drawing:

Thermocouple Type J Diamater 10mm, Leads With Spring Protection

Feature:

1. Simple assembly and easy to change;

2. Fast heat response time;

3. High precision measurement;

4. Long service life.

Application:

Measuring the temperature of flat or slightly convex surfaces, including: hot runner manifold, heat rollers, plates, heat sinks, transformers, pipes, ducts, radiators and ect.
