Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 100,000 pcs |
| Type: | Type J, K, T, E, N, S, RTD, Customized | Temperature Range: | Max 1600℃ |
|---|---|---|---|
| Probe: | Assembled | Protective Tube Material: | Stainless Steel |
| Head Material: | Aluminum, SS Steel, Bakelite, Customized | Wiring: | 2-wiring, 3-wiring, 4-wiring, 6-wiring, Customized |
| High Light: | Temperature Sensor Thermocouple RTD,L Shape Thermocouple RTD,L Shape RTD Temperature Sensor |
||

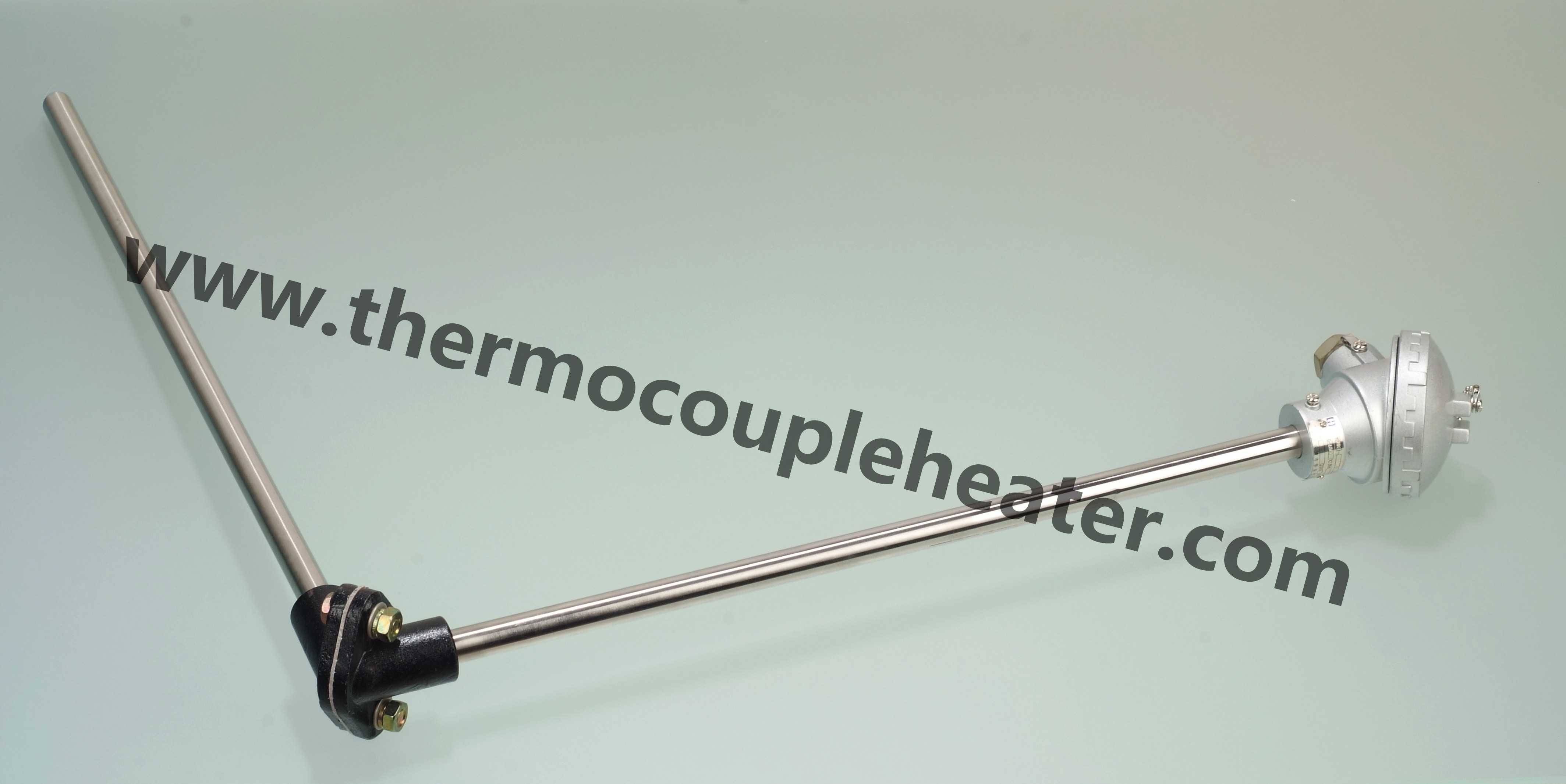

Temperature Sensor Thermocouple L-Shape With Reinforced Protection
Product Description:
Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers. A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the temperature.
Product Features:
♦ Easy to install, several optional testing range
♦ Dual use for gas and liquid, used to various material compatible with 316L stainless steel
♦ Quick response, high accuracy
♦ Good long-term stability, low energy consumption,smart
Applicable Scope
♦ Pipe and ventilation systems
♦ Hydraulic and pneumatic systems
♦ Cooling and heating systems
♦ Water supply and water heating systems
♦ Air-conditioning systems
♦ Automation system temperature mensuration and control
Technical Index
| Sensor | Type J, K, T, E, N, S, PT100, PT1000, customized |
| Thermowell | Available |
| Signal line specification | 2-wiring, 3-wiring, 4-wiring, 6-wiring, customized |
| Accuracy | Class 1, Class 2 |
| Testing range(°C) | Max 1600℃ |
| Probe diameter | Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12mm, customized |
| Response Time | T=50°C 2.3s;T=90°C 5.4s |
| Ambient Temperature | -40~+85°C |
| Storage Temperature | -40~+125°C |
| Environmental Protection | IP65 |
