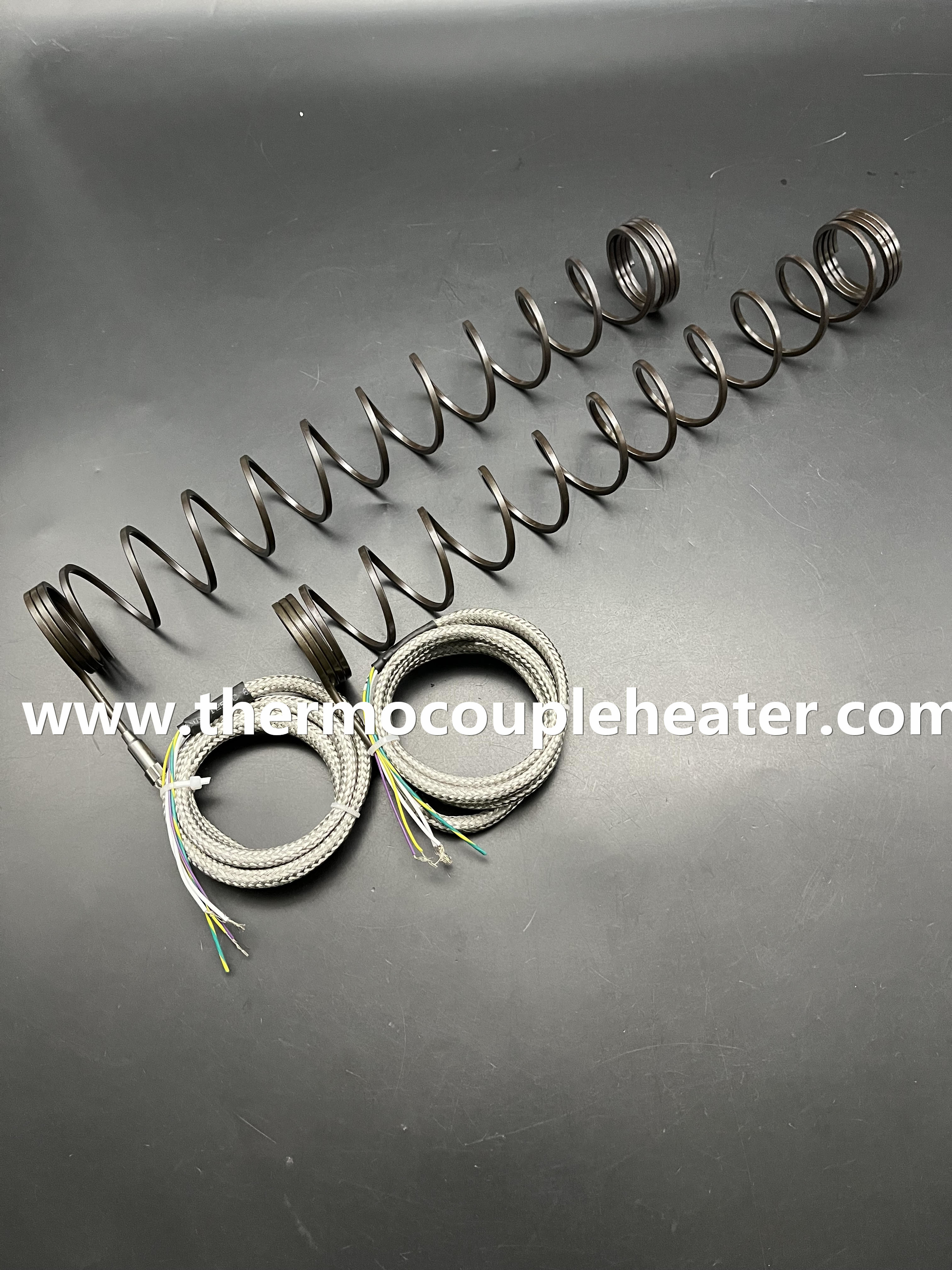

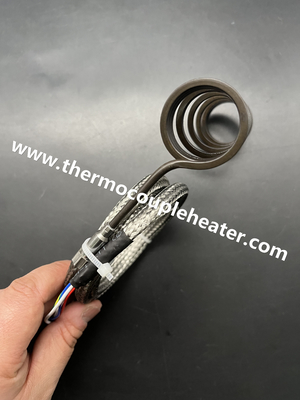

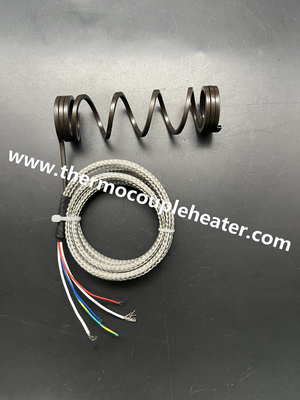

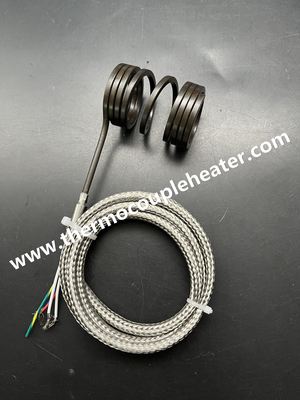

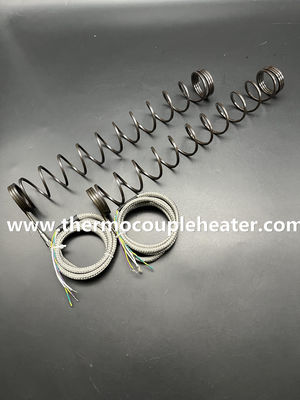

Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet

Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet

    • Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet
    • Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet
    • Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet
    • Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet
  • Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet

    Product Details:

    Place of Origin: China
    Brand Name: GME

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pcs
    Packaging Details: Standard exporting package
    Delivery Time: 10-15 days
    Payment Terms: L/C, Western Union, T/T, Paypal
    Supply Ability: 20,000 pcs per month
    Contact Now
    Detailed Product Description
    Sheath Material: Stainless Steel Heating Wire: Nichrome
    Isulation Material: MgO Outline: Flat, Round, Square Shape
    Cross Section: 2.2 X 4.2mm, 3.2 X 3.2mm, 3x3mm, Dia 1.8mm, Etc Unheating Length: 35-50mm, Or Customized
    Lead Wire Sheath: Fiberglass Or Steel Mesh, Customized Exits: Axial, Tangential, Radial, Special Exits
    Built-in Thermocouple: J Or K Sheath Temperature: Max. 700℃
    Highlight:

    Spiral Heater Cross Section 3.2mm

    ,

    Nichrome Spiral Heater Cross Section

    ,

    MgO Spiral Coil Heaters

    Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet



    1. Introduction



    Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.
    Hot runner heater are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.
    Hot runner heater can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc
    All coil heaters are available with various exits and connections to suit the respective application.







    2. Features



    Standard sizes available with various cross section
    Various Watt Density options available.
    Robust Design with Choice of Terminal Exits
    Available with built in Thermocouple
    Designed for even heat profile.
    Precision fit on Hot Runner Nozzles & Manifolds.
    Highly Non-corrosive.
    Maximum heat transfer due to more contact area.
    Advanced Thermal Engineering.





    3. Coil exits


    Spiral Heater Cross Section 3.2x3.2mm Various Sizes Radial Outlet



    4. Application



    - Hot runner system

    - Plastic industry

    - Packaging machinery

    - Medical equipment

    - Foundry technology

    - Numerous other thermal processes





    5. Order, please advise


    - Dimension
    - Wattage and voltage
    - With/wtithout J or K thermocouple
    - Heated length
    - Other your additional details
